Assembly Instructions
WARNING!
Do NOT plug into electrical supply until
assembly is complete. Failure to do so could result in
electrical shock or injury.

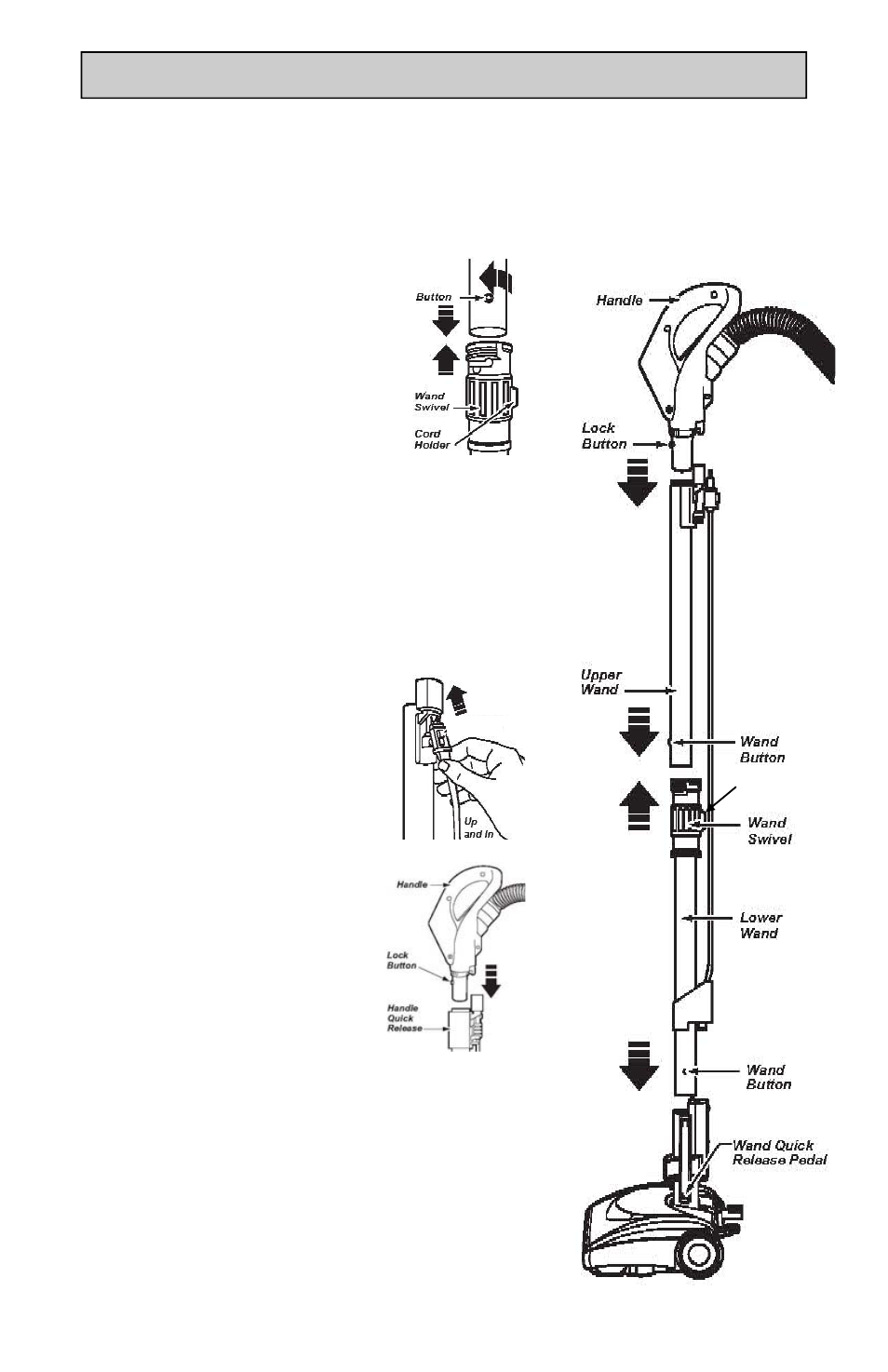

1. Slide wands together until
wand button 1 snaps into
place. Turn wand
button 1 to the slotted
area of the wand swivel.
(Fig. A) The swivel allows
you to turn the handle to
the left side to reach under
low furniture.
2. Insert connected wands into the
EG1400 until the wand button 2 snaps
into place.
3. Secure cord into the cord holder on
wand swivel.
4. Connect EG1400 plug
into the plug holder. (Fig.
B) Do NOT force.
5. Insert the hose handle
into the wand until the
lock button snaps into
place. (Fig. C) Be
sure the hose is not
twisted. To remove:
Press handle release
button and pull up on
handle.
To remove wands: Step on wand quick
release pedal, then pull up on wands.
6. Insert the hose wall adapter into the
vacuum inlet valve. Plug the 120V
cord into the nearest electrical outlet
if hose is equipped with a pigtail.
Wand
1
Fig. A
1
2
Cord
Holder
Fig. B
Fig. C
