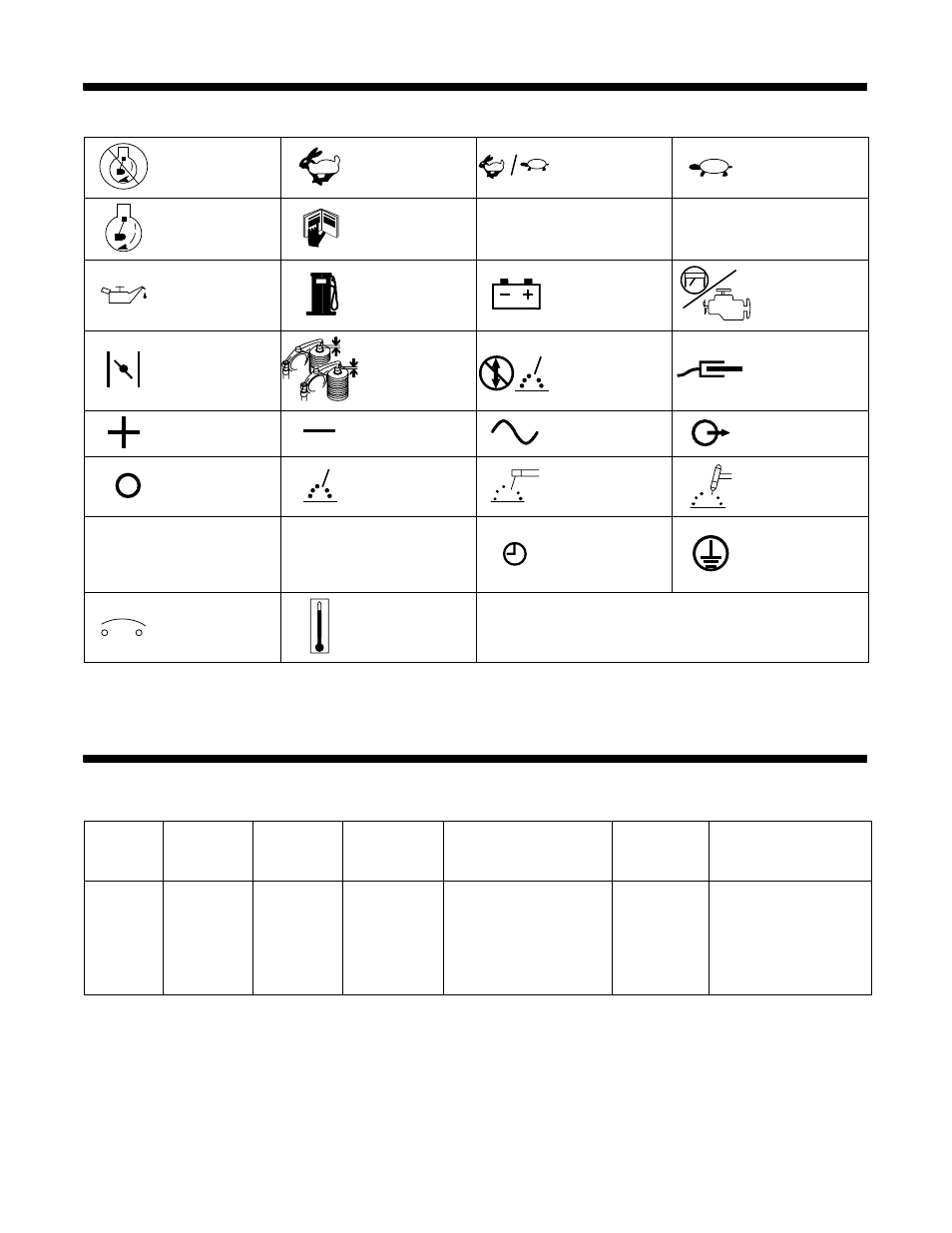

SECTION 2 – DEFINITIONS
2-1. Symbol Definitions
Stop Engine
Fast
(Run, Weld/Power)
Fast/Slow
(Run/Idle)
Slow (Idle)
Start Engine
Read Operator’s
Manual
A
Amperes
V
Volts
Engine Oil Fuel Battery (Engine) Engine
Engine Choke
Check Valve
Clearance
Do not switch while
welding
Work Connection
Positive Negative
Alternating Current
(AC)
Output
Off
Welding Arc
(Electrode)
Stick (SMAW) TIG (GTAW)
h Hours s Seconds Time
Protective Earth
(Ground)
Circuit Breaker Temperature
SECTION 3 – SPECIFICATIONS
3-1. Weld, Power, and Engine Specifications
Welding
Mode
Weld Output
Range
Rated
Welding
Output
Maximum
Open Circuit
Voltage
Single-Phase
Auxiliary Power Rating
Fuel
Capacity
Engine
CC/DC 50 – 210 A
210 A, 25 V,
100% Duty
Cycle
72
Peak: 8.5 kVA/kW
Continuous: 8 kVA/kW,
70/30 A, 120/240 V AC,
60 Hz
(240 V output limited by
circuit breakers to 30 A)
10 gal
(38 L) Tank
Onan Performer P216
Air-Cooled, Two-Cylinder,
Four-Cycle, 16 HP
Gasoline Engine
