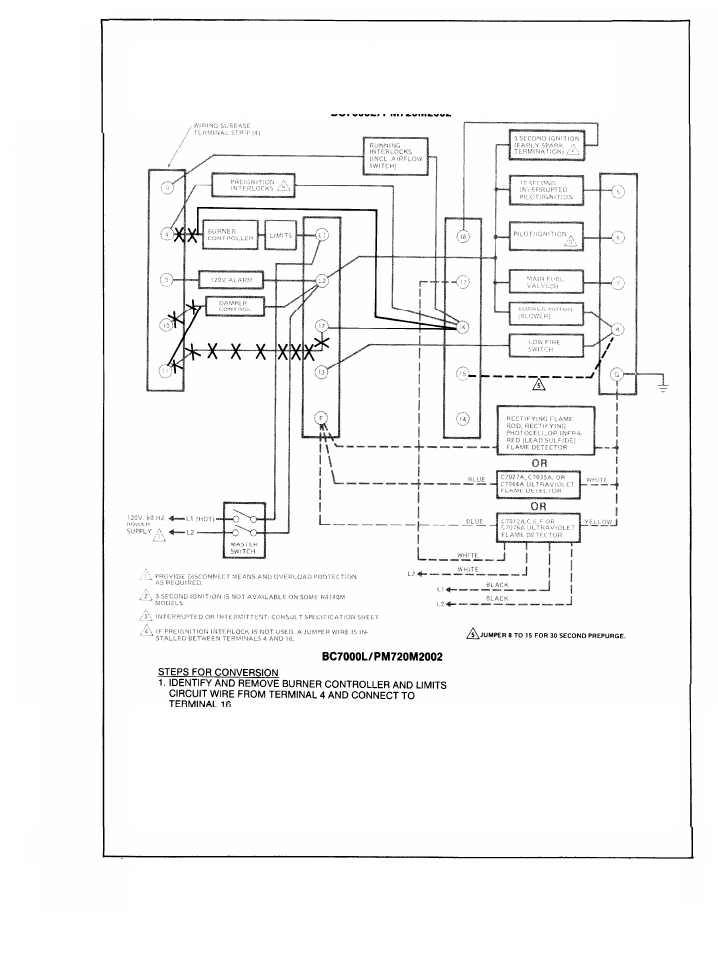

REPLACING AN R4140M OR R4150M WITH

PREIGNITION INTERLOCKS WITH A

BC7000L/PM720M2002

2. DISCONNECT DAMPER CONTROL WIRE FROM TERMINAL 10

AND CONNECT IT TO TERMINAL 11.

3.

4.

5.

REMOVE JUMPER FROM TERMINAL BETWEEN TERMINAL 11

AND 12 (on some models).
IF LOW FIRE SWITCH IS NOT USED, CONNECT JUMPER WIRE

BETWEEN TERMINALS 8 AND 13.

JUMPER TERMINALS 8 TO 15 FOR 30-SECOND PURGE.

E1237
