Harmar Mobility AL030 User Manual
Page 12
Loosen nuts here
Slide arm up or down tube
Tighten after adjustment
Section 9 - Adjusting the AL010 and AL030
N
O
I
S
N
E
T
T
S
U
J
D
A
N
O
I
S
N
E
T
T
S
U
J
D
A
N
O
I
S
N
E
T
T
S
U
J
D
A
N
O
I
S
N
E
T
T
S
U
J
D
A
LIFT SHOULD HOLD
WHEELCHAIR FIRMLY
WITH THE PLATFORM
FULLY RAISED
( RAISED UNTIL
MOTOR RATCHETING
IS HEARD )
LIFT SHOULD HOLD
SCOOTER FIRMLY
WITH THE PLATFORM
FULLY RAISED
( RAISED UNTIL MOTOR
RATCHETING IS HEARD )
The hinge points are equipped
with tensioning washers. The
amount of force required to move
these parts is determined by the
t e n s i o n o f t h e s e w a s h e r s .
To adjust, simply loosen or tighten
the bolt and nut located by w/ arrows.
The tension is set at the factory and
s h o u l d n e e d n o a d j u s t m e n t .
This is noted for reference only.

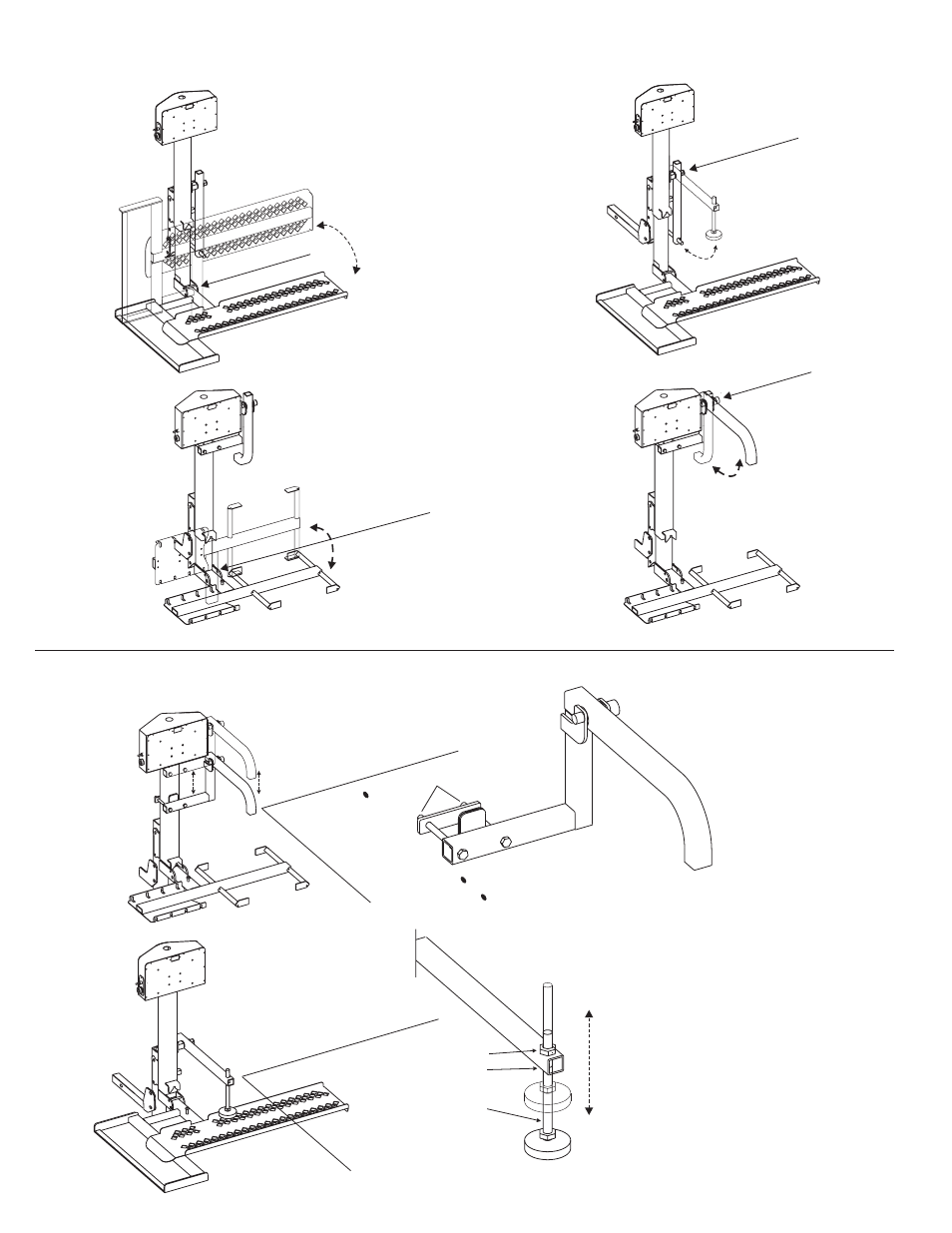

AL010 and AL030 HOLD DOWN ARM ADJUSTMENT
Loosen top nut
and bottom nut
Turn threaded rod
to lengthen or
shorten foot
