The following show examples of connections commonly used to connect
the DVD player with a TV and other components.
Always turn off the DVD player, TV, and other components before you connect
or disconnect any cables.
Refer to owner's manual of the additional components you are connecting for
more information for those particular components.
Before Connection the DVD Player
Connection to an Audio System
Analog Audio Out
Amplifier with Dolby Digital Decoder
DTS Decoder
Digital Audio Input Jack
2ch Stereo Amplifier
Dolby Pro Logic Decoder
Audio Input Jacks
Digital Audio Out
AUDIO
DVD

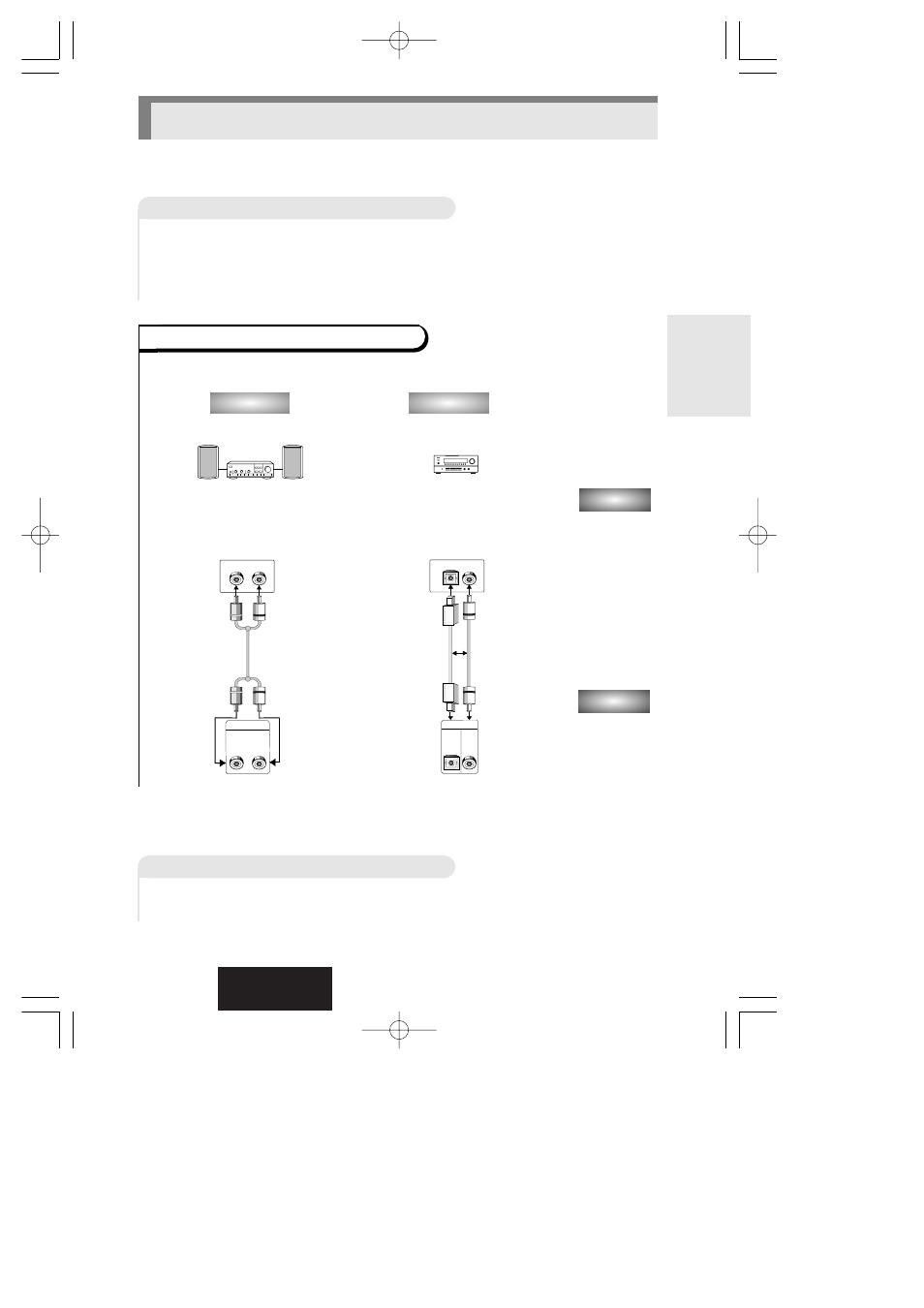

Method 1 DVD Player + 2ch Stereo Amplifier or Dolby Pro Logic Decoder
Method 2 DVD Player + Amplifier with Dolby Digital Decoder/DTS Deco der
Method 1 Method 2
OR
ENGLISH
MIXED AUDIO OUT
R
R L
L
OPTICAL COAXIAL
OPTICAL COAXIAL
DIGITAL AUDIO OUT
C
hoosing a Connection
Connection to an Audio System
