X Stream™ Filtration Series _____________________________________
Replacement Parts

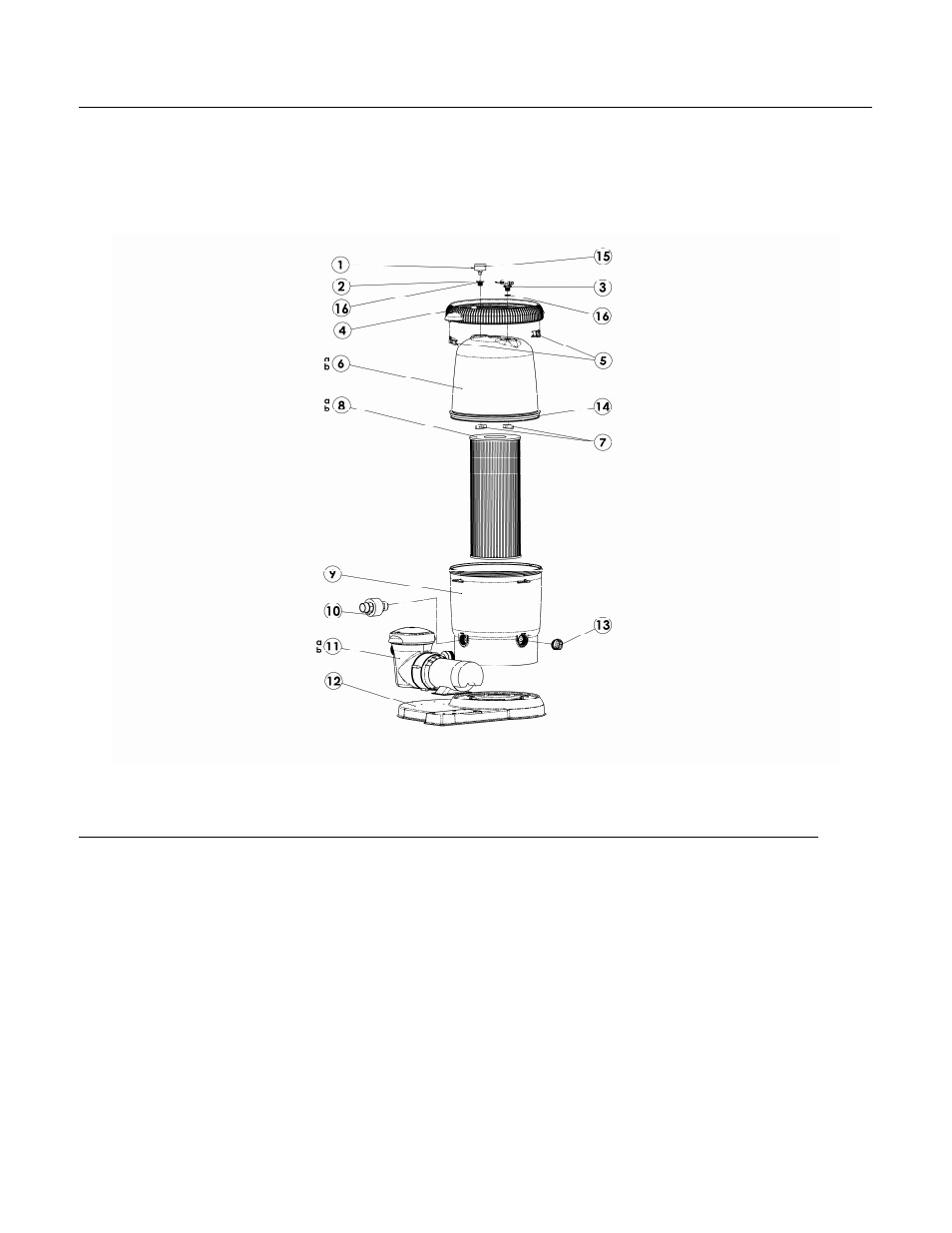

Parts Diagram
Parts Listing
Ref.
No. Part No. Description Ctn. Qty. No. Req’d
1 ECX27091 Pressure Gauge 10 1
2 CCX1000L Threaded Adapter for Pressure Gauge 10 1
3 CCX1000V Air Relief Assembly with ‘O’ Ring 10 1
4 CCX1000D Lock Ring Assembly with Latches 1 1
5 CCX1000H Lock Ring Latch 10 2
6a CCX1000C Filter Lid with Lock Ring, 100 sq. ft. 1 1
6b CCX1500C Filter Lid with Lock Ring, 150 sq. ft. 1 1
7 CCX1000N Adapter Nut 10 2
8a CCX1000RE Cartridge Element, 100 sq. ft. 1 1
8b CCX1500RE Cartridge Element, 150 sq. ft. 1 1
9 CCX1000B Filter, Lower Body 1 1
10 SP1480BLK Self Aligning Union, Black 50 1
11a SP1592 1 HP Power-Flo Matrix Pump 1 1
11b SP1593 1-1/2 HP Power-Flo Matrix Pump 1 1
12 CCX1000A Base, Standard 1 1
13 SP1022CBLK Drain Plug with ‘O’ Ring 100 1
14 CCX1000G Body O-ring 2 1
15 SPX1500W Pressure Gauge ‘O’ Ring 10 1
16 CCX1000Z5 ‘O’ Rings for Gauge Adapter & Air Relief (Set of 2) 10 1
