4
ASSEMBLY
To hire an authorized service technician to assemble the exercise cycle, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included
hex keys, assembly requires a phillips screwdriver and an adjustable
wrench .

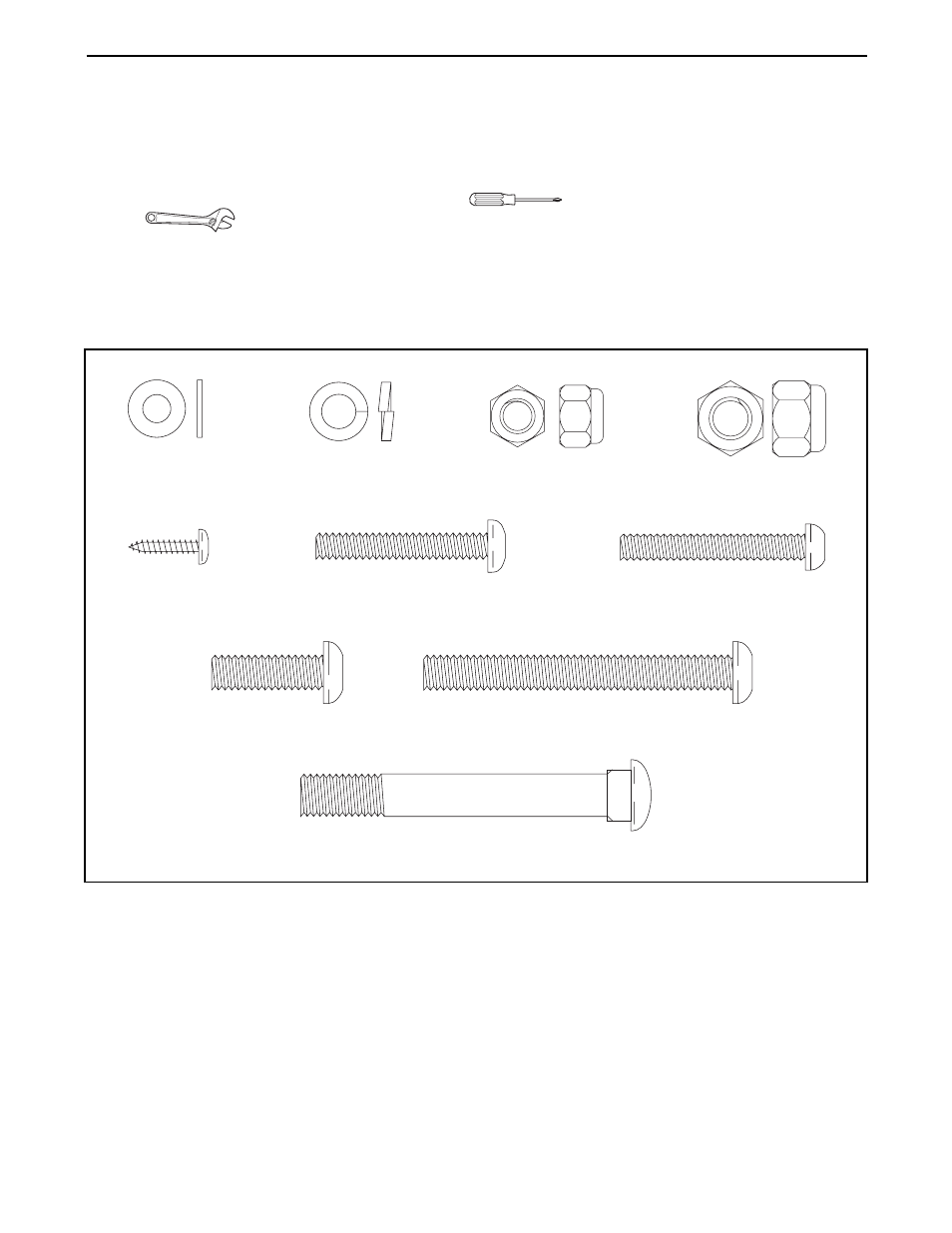

As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on page 14. The second number is the
quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in the
parts bag, check to see if it has been pre-assembled.
M10 x 75mm Carriage Bolt (51)–4
M10 Nylon
Locknut (63)–4
M8 Nylon
Locknut (60)–4
M8 Split
Washer (59)–5
M6 Washer
(55)–8
M6 x 38mm Button
Bolt (48)–4
M6 x 42mm Button
Screw (49)–4
M8 x 25mm Button
Screw (33)–3
M8 x 70mm Button
Bolt (54)–2
M4 x 16mm
Round Head
Screw (52)–4
