<1.2m

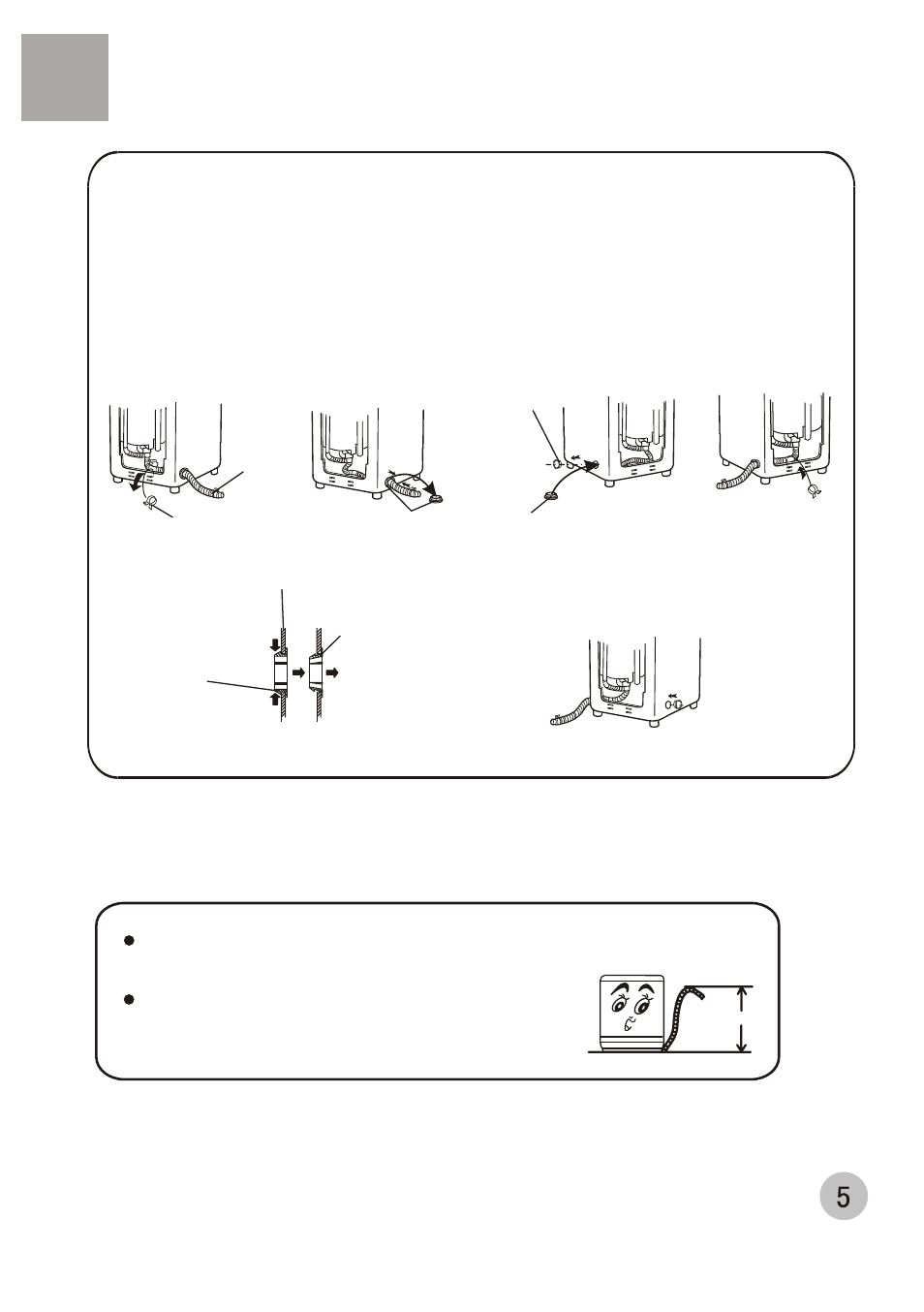

How to change the direction of the drain hose
Usage of the drain hose
1.Dismantle the back cover of the washing
machine.
3.Dismantle the protecting cover of the
drain outletat the other side (method
the same as the bushing). Install the
bushing as per indicated in Figure 4.
4.Extend the drain hose from the other
side. Fix thedrain hose onto the base
frame with the drain hoseframe. (As
indicated in Figure 5)
5.Install the protecting cover of the drain
outlet at the other side as per indicated
in Figure 6.
Drain outlet
protecting cover
Drain hose bushing Drain hose bushing
Figure 1
Figure 4 Figure 5
Figure 6
Drain hose
bushing
Take off Drain hose
bushing claw
Cabinet
Figure 2
Figure 3
Inner
Press
Press
Outer
2.Put down the drain hose. Take off the
drainhose frame. As indicated in Figure
1, put thedrain hose into the cabinet.
Then stretch onehand into the cabinet
to nip the claw of the drain hose bush-
ing to remove the claw fromoriginal
position. Take off the drain hose bush-
ing with the other hand. (As indicated in
Figure 2 and 3).
Drain hose frame
Outer
drain
hose
Before using , hang up the drain hose on suitable location.
Do not put down the drain hose on the ground.
Confirm the end of drain hose is higher than
the level of tub . If not the siphon will being .
