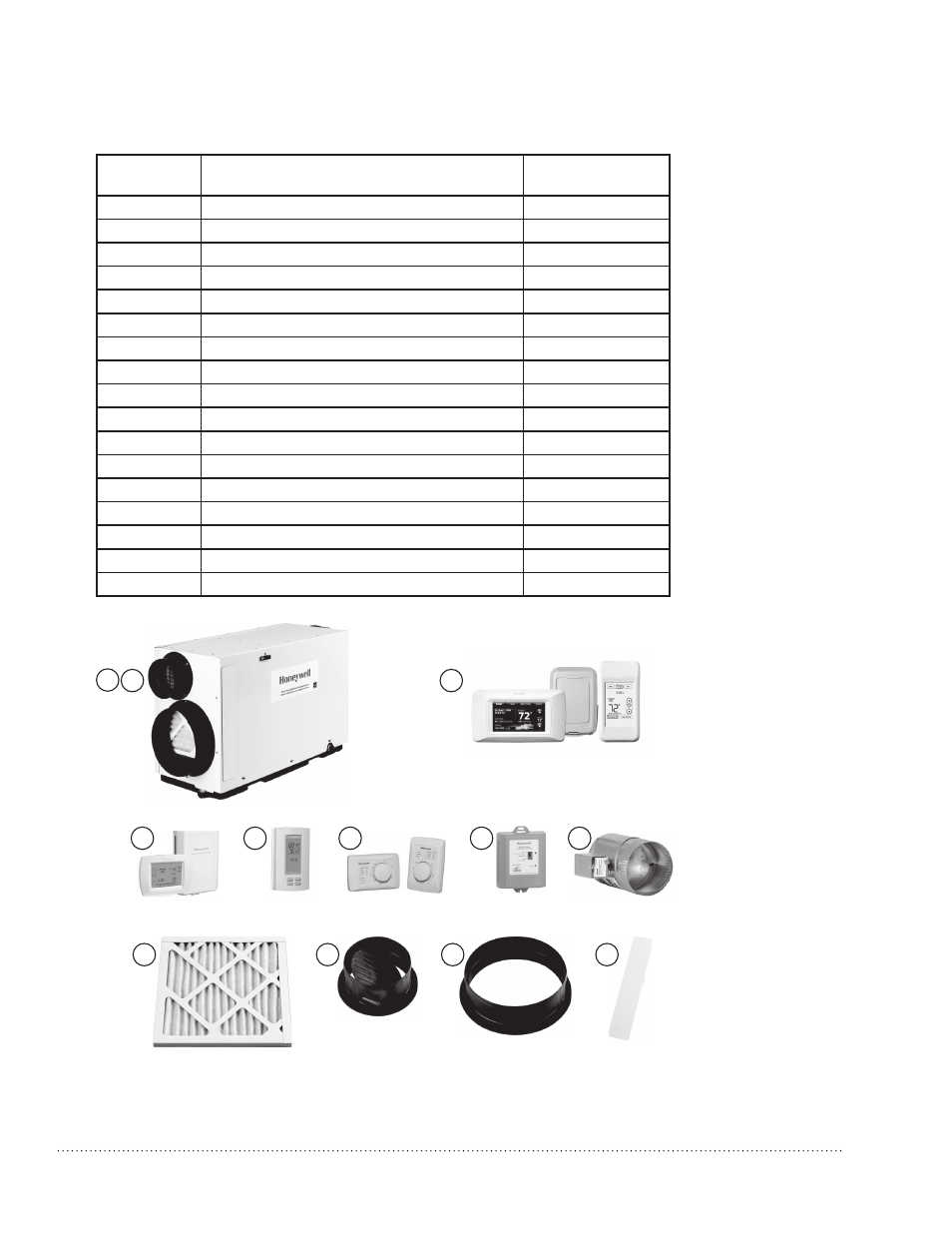

Parts List
Figure
Reference
Description Part number
1 TrueDRY with no controls DR90A1000
2 TrueDRY with VisionPRO IAQ Control DR90VPIAQ
3 Prestige Comfort System YTHX9321R5003
4 VisionPRO IAQ Total Comfort Control YTH9421C1010
5 TrueIAQ Digital IAQ Control DG115EZIAQ
6 H8908D Manual Dehumidistat H8908DSPST
7 Automatic ventilation control W8150A1001
8 Motorized ventilation damper EARD 6
Compressor run capacitor 50049536-001
Blower assembly 50027976-001
9 Filter 50049536-003
10 6-in. Duct collar 50049536-004
11 10-in. Duct collar 50049536-005
12 Magnetic door 50049536-006
Compressor relay, SPST, 24 Vac, 30A 50035445-014
Fan relay, SPDT, 24 Vac, 15A 50035445-011
Transformer 120/24 Vac, 40 VA 50035445-013
1 2 3
4
9
8 6 7
10
M28837
5
11 12
TrueDry DR90 Dehumidification System 69-2407—01 13
