haier LITTLE SEA-OX FCD JTHA80- ET - Manual (Page 4)

Model Volume
Net
weight
kg
a1 b1 c1 d1 e1 f1
FCD-JTHA60- (ET)
FCD-JTHA80- (ET)
305
521
100
100
437
440
400
400
795
991
20.5
26.6
60L
80L
200
200
30L
50L
569
694
366
438
347
400
100
100
192
220
15.1
18.5
200
200
FCD-JTHA30- (ET)
FCD-JTHA50- (ET)
220 100 391 353 688 16.5 40L 200 FCD-JTHA40- ET
mm mm mm mm mm mm
Rated
temperature
75
75
75
75
75

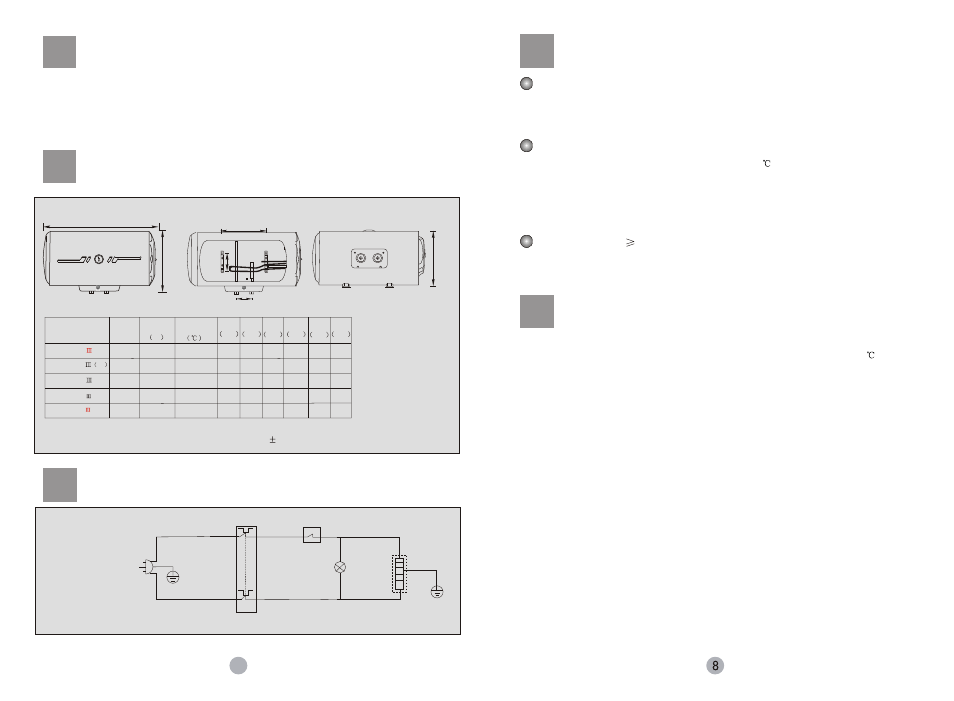

Dimensions
3
Electric Circuit Diagram
(Figure 1)
L
N E
BT
HL
EH
E
MT
L:Brown wire
N:Blue wire
MT: High temperature limiter
BT: Thermostat
HL:Heating indicator
EH:Heating element
E:Yellow/green wire
Parameters
Rated voltage: 220V~,50Hz Dimension: (See to Figure 1)
Rated power: 1200W Weight: (See to Figure 1)
Rated pressure: 0.75MPa Volume: (See to Figure 1)
Waterproof grade: IPX4 Tap water pressure: no less than 0.05MPa
For the first use after installation, due to there's no water within the tank, first the city water
inlet valve and mixing valve must be opened. Close the mixing valve when water flows out
continuously from the showerhead or other outlets (the tank is full). Check connections are
free of water leakage, and insert the power plug.
Turn the knob to set your desired water heating temperature, which can be stepless
changed between cold water inlet temperature and 75 . In heating mode, heating lamp is
lighted on. Normally the knob shall be positioned at highest temperature. This machine has
a thermostat function, which automatically switches off the water heater when temperature
reaches the setting value, and switch on again when water temperature decreases to
certain value.
City water pressure 0.75 MPa will cause much water flowing out from safety valve
pressure relief vent. This is due to too high water pressure. Please ask after-sales service
for correction.
Operation Instructions
To avoid causing machine troubles, do not connect power before tank is full of water.
Adjust a suitable temperature before use, for water temperature above 50 may burn
your skin.
This product is closed water heater, which can supply hot water through pipe connection
to several points like bathroom (bathtub, washbasin, showerhead) and kitchen.
Heating adjustment can be made flexibly all year round adapting to climate changes. In
long-term out-of-use or maintenance, you can close city water pipe valve, open mixing
valve to hot water range, and move up safety valve handle to drain the tank. To avoid
injury, before next use, it is suggested to first open hot water valve before switching on
the water heater, exhausting gas possibly retained in the pipeline. In this case, no smoke
or fire is permitted near the open valve. Carefully check and confirm all parts are in good
condition.
Provided hot water quantity can meet use demand, temperature setting shall be possibly
low. It can minimize heat dissipation, high-temperature corrosion and sedimentation,
ensuring a longer service life.
Regularly ask servicemen to make safety inspection, remove sediment on heating
elements, and check consumption of anode bar. Too much consumed anode bar shall be
replaced.
1.
2.
3.
4.
5.
6.
Attentions in Operation
Front view Cutaway view Bottom view
A Hot water outlet
B Cold water inlet
C Heating element
D Enamel tank
E Wall-mounting
bracket
F Magnesium anode
rod
Remarks:the permitted error limit of above parameters is 10%.
e1
a1
b1
A B
D
F
E
C
C1
d1
f1
