6 598-1338-03
Note: When first turned on wait about 1 1 /
2
minutes
for the circuitry to calibrate.
* resets to Security mode at dawn.

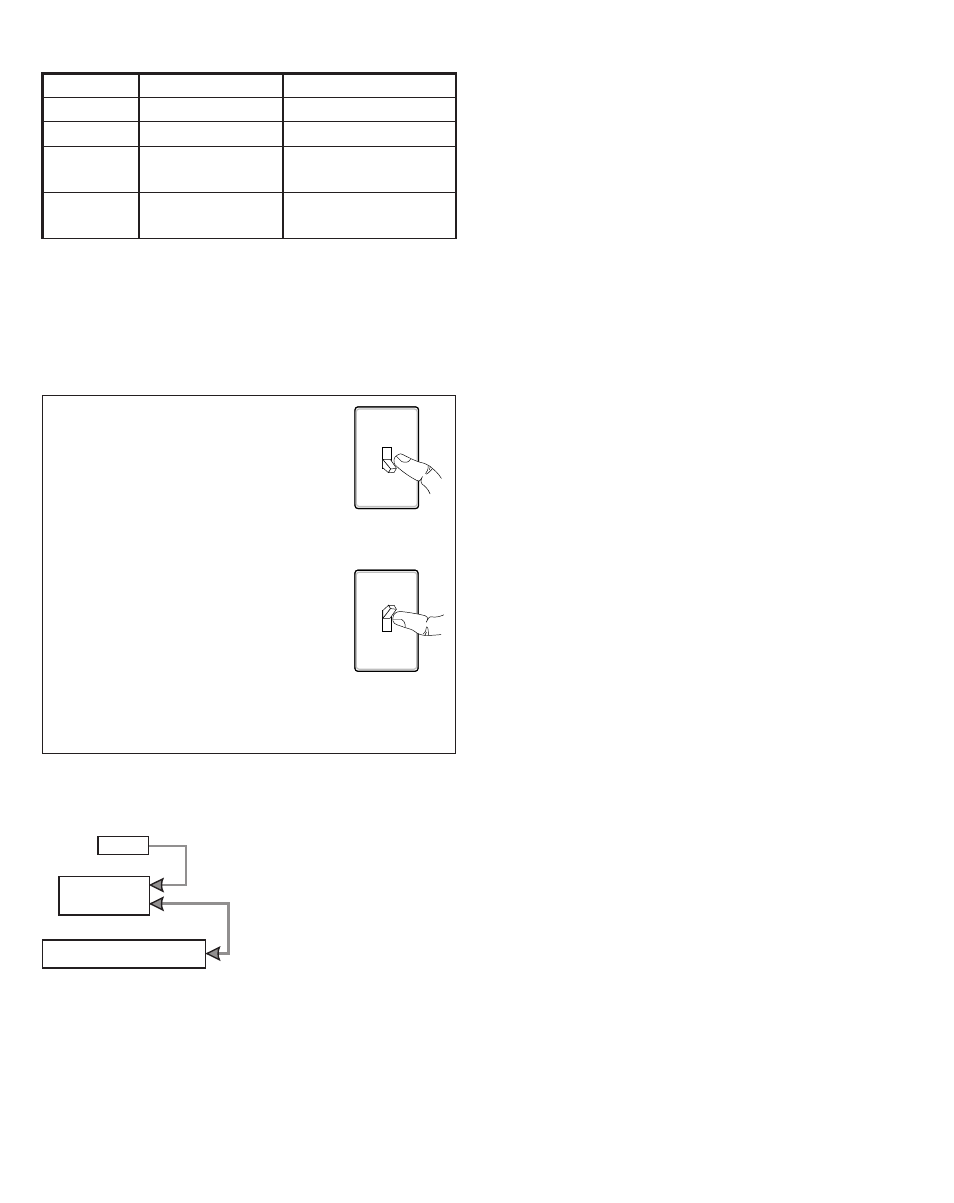

OperatiOn
Mode: On-Time Works: Day Night
test 5 Seconds x x
security 5 or 10 Minutes x
automatic
Override Dusk-to-Dawn x
manual
Override Until Dawn* x
MANUAL MODE
AUTO
TEST
ON-TIME Switch at 5 or 10
minutes
... back on.
1 Second OFF
then...
Manual Override mode can only
be activated at night when the
ON-TIME switch is set to the 5
or 10 minute position.
Flip the light switch off for one sec-
ond then back on to change from
SECURITY mode to MANUAL
OVERRIDE mode.
To return to SECURITY mode,
either:
• turn the light off for one minute
then turn it on, or...
• daylight will automatically reset
the light to SECURITY mode.
mODe sWitChing summary
Flip light switch off
for one second then
back on*
* If you get confused while switching modes, turn
the power off for one minute, then back on. After the
calibration time the control will be in the SECURITY
mode.
manuaL OverriDe mODe
aDjustment OF COverage area
The sensor on this light fixture detects “motion” by the
movement of heat across the coverage area. However,
following are examples of objects that also produce
heat and can cause the sensor to trigger:
• Pools of Water
• Air Conditioners
• Dryer Vents • Animals
• Heating Vents • Automobile Traffic
If you suspect that a heat source of this type is trig-
gering the sensor, reduce the sensitivity.
speCiFiCatiOns
Range ........................... Up to 30 ft. (9.1 m) [varies
with surrounding tempera-
ture].
Sensing Angle .............. 180°
Electrical Load .............. Up to 180 Watt Maximum
Tungsten Incandescent
or 5 Watt Maximum LED
(Lights of America model
2025LEDE12).
Bulb Type ...................... E12 Candelabra Base,
Type “B”, 60 Watt Maximum
Tungsten Incandescent or
LED model 2025LEDE12
1.5 Watt.
Sensor Capacity ........... 360 Watt (3.0 A) Maximum
Tungsten Incandescent
Power Requirements .... 120 VAC, 60 Hz
Operating Modes .......... TEST, SECURITY, AUTO-
MATIC OVERRIDE and
MANUAL OVERRIDE
ON-Timer ...................... 5 or 10 minutes
Test Timer ..................... 5 Seconds
Automatic
Override Timer .............. Dusk-to-Dawn
Manual
Override Timer .............. Until Dawn
SECURITY
MODE
