VIDEO L- - R S-VIDEO
VGA
VGA AUDIO
Y
Y
Pb
Pb
Pr
Pr L-AUDIO-R
L-AUDIO- R L-AUDIO- R L-AUDIO- R
L-AUDIO- R VIDEO
2
2
1
1 1
HDMI IN VGA IN COMPONENT IN OPTICAL
OUT
AV OUT VIDEO IN ANT IN
DVI
AUDIO

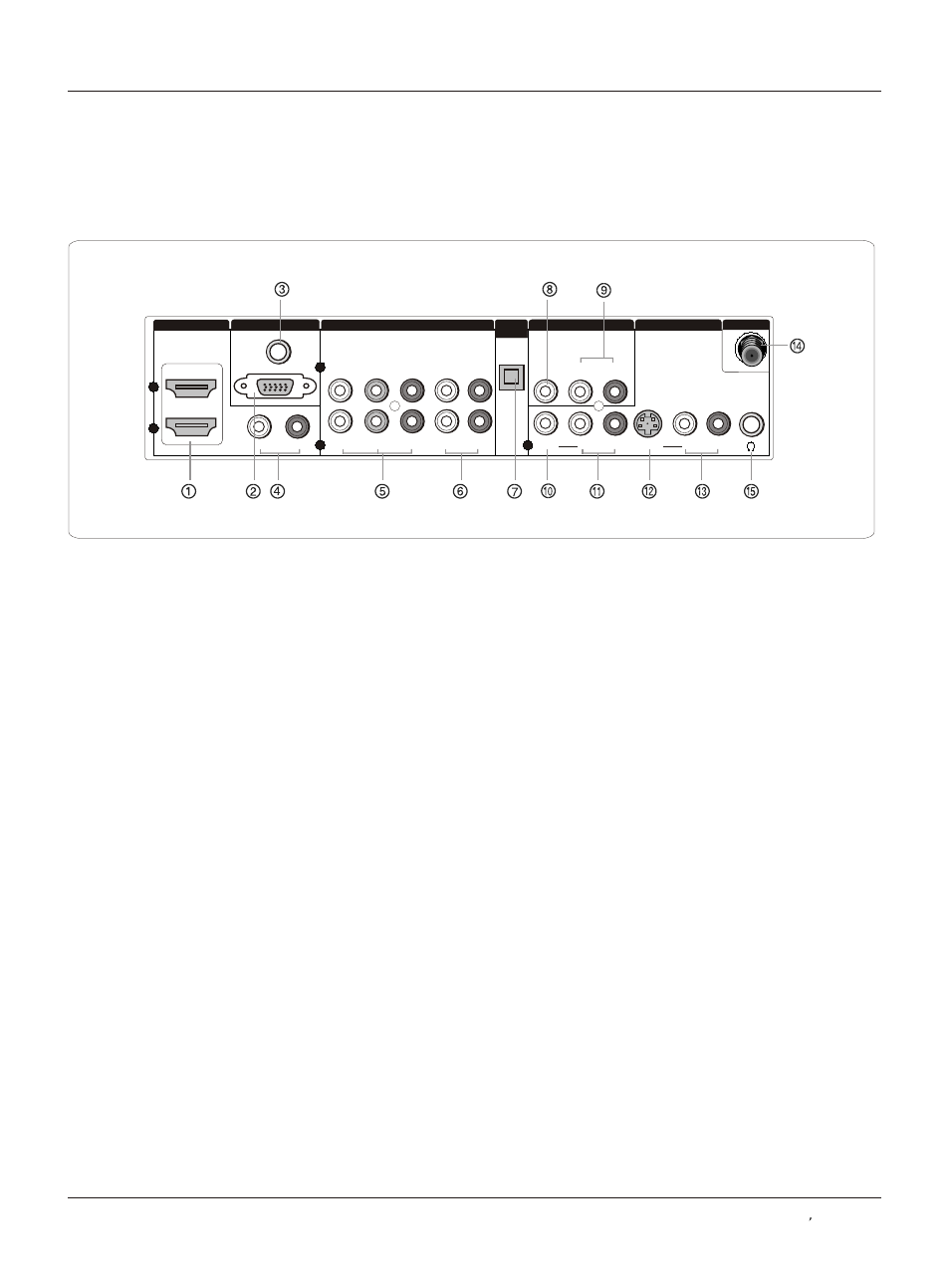

Back panel controls
Introduction
Owner s Manual 7
Connection Options
1 HDM IN: Connect an HDMI signal to this jack.
2 VGA Video IN: Connect a video cable from a computer to this jack.
3 VGA Audio IN: Connect the audio L/R cables from a computer to this jack.
4 DVI Audio IN: Connect the audio L/R cables from a digital video source to these jacks.
5 DVD/DTV IN(Component ): Connect a component video device to these jacks.
6 AUDIO IN(Component ): Connect the audio L/R cables from the component video signal source to these jacks.
7 Digital Audio Output: Connect digital audio to an external device.
NOTE: In standby mode, these ports will not work.
8 VIDEO Out: Connect the second TV or monitor to the TV`s AV OUT.
9 AUDIO Out: Connect the audio L/R cables to the second TV`s AV IN.
10 VIDEO IN: Connects the composite video cable from an external signal source to this jack.
11 AUDIO IN: Connect the audio L/R cables from the video signal source to these jacks.
12 S-VIDEO IN: Connect the S-Video cable from an external signal source to this jacks.
13 AUDIO IN: Connect the audio L/R cables from the S-Video signal source to these jacks.
14 Antenna IN: Connect cable or antenna signals to the TV, either directly or through your cable box.
15 Headphone jack : Headphone audio output terminal.
