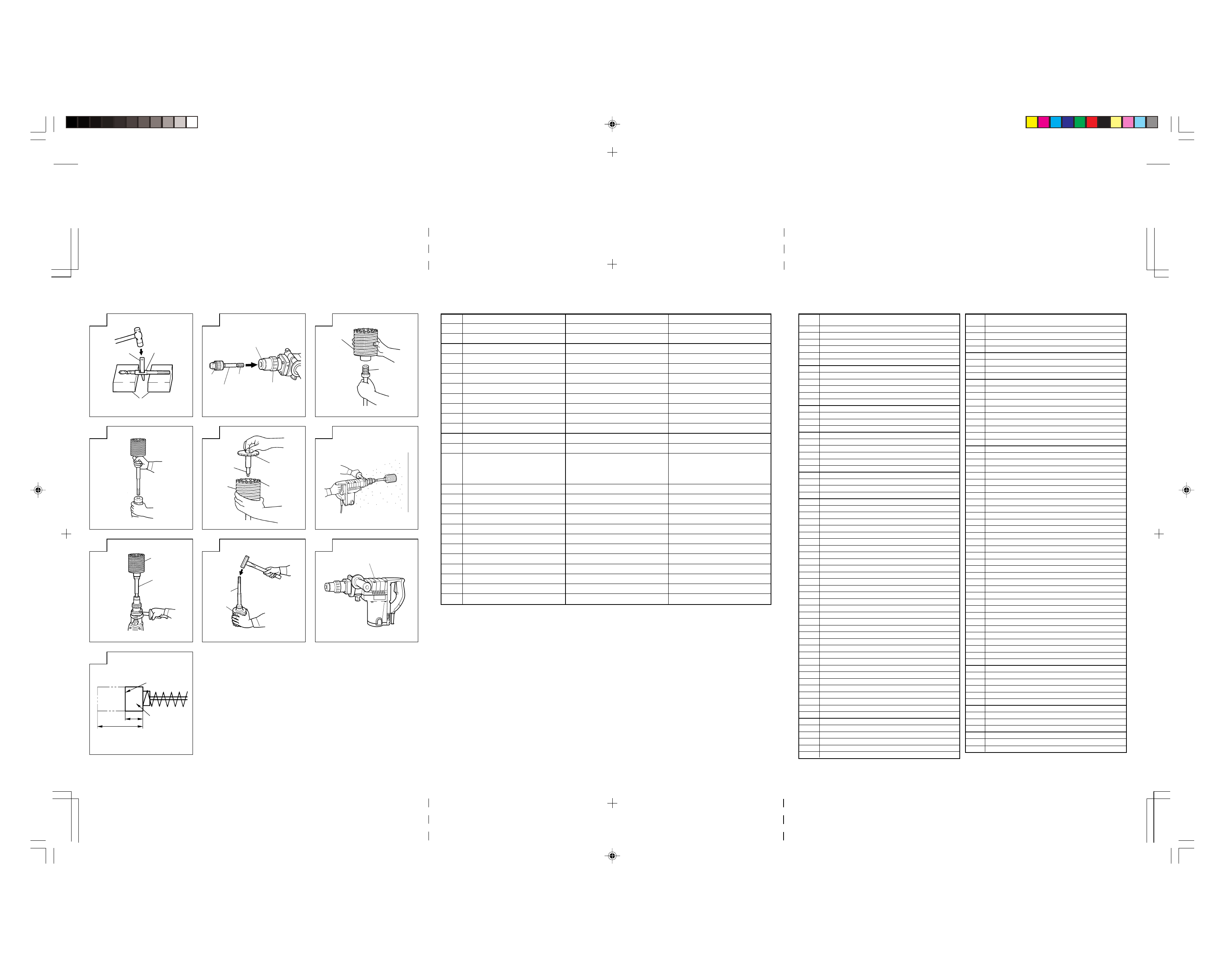

12Z

17 mm

7 mm

Svenska

Verktygsskaft

Fett

Verktyg

Del av SDS-max nacke

Framskydd

Gripls

Skala

Väljarspak

Nedre kpa

Stopp

Stöd handtag

Tillsats för koniskt skaft

Borrskär (med koniskt skaft)

Indikeringslinjen visar det
standarddjup vid borrning som
passar förankringsjärnets yttre
diam.

Kil

Stödklossar

Borrchuck

Chucktillsats

Borrkrona

Borrkronans skaft

Styrplatta

Centrumtapp

Toppände på borrkrona

Motorkpa

Avnötningsgräns

Nr. på kolborste

Dansk

Redskabsskaft

Fedt

Værktøj

Del af SDS max skaft

Frontdæksel

Greb

Skalaknap

Vælgerkontakt

Underdæksel

Dybdeanslag

Sidegreb

Konusskaftadapter

Bor med konusskaft

Indikatorrile (angiver
normalhuldybde passende til
boreankrets ydre diameter)

Kile

Underlag

Borepatron

Boreadapter

Borekrone

Borekroneskaft

Styreplade

Centerstift

Borekronespids

Motordæksel

Slidgrænse

Kul Nr.

Norsk

Verktøyskaft

Fett

Verktøy

Del på SDS-maxstange

Frontkapsel

Grep

Tallskive

Velgerbryter

Underdeksel

Stopper

Sidehåndtak

Koniusskaftadapter

Bor (med konusskaft)

Den indikerte rillen indikerer
normaldybden som passer til
den utvendige diameter på
boren for boring.

Kile

Støtte

Borechuck

Chuckadapter

Kjernebor

Kjerneborskaft

Glideplate

Senterbolt

Kjerneborspiss

Veivkassedeksel

Slitasjegrense

Kullbørstens nr.

Item

No.

66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
501
502
503
504

Item

No.

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

Part Name

Front Cap
Grip
Needle Holder
Needle Roller

× 20

Retainer Sleeve
O-Ring (B)
O-Ring (C)
Second Hammer
Retainer Spring
Spring Holder
Retaining Ring

D32

Sleeve (A)
Nylock High Tension Bolt

× 25

Front Cover
O-Ring (1AS-60)
Oil Seal
Sleeve (B)
O-Ring (A)
Urethane Ring
Washer
Ball Bearing (6908DDUCMPS2-L)
Washer (A)
SDS MAX Label
Bevel Pinion
Feather Key

Ч 3 Ч 8

Oil Seal (A)
Ball Bearing (6002DDUCMPS2S)
Washer
Washer (A)
Gear Holder
Spring (C)
Needle Pin

× 6

Second Gear
Spacer
Ball Bearing (629VVMC2EPS2L)
Slip Clutch Ass'y
Nylock Bolt (W/Flange)

× 16

Distance Piece (B)
Crank Case Cover Ass'y
Rubber Seal
Crank Case
Retaining Ring For D12 Shaft
Crank Shaft
Feather Key

Ч 3 Ч 10

Ball Bearing (6204VVCM PS2S)
Oil Seal (B)
Bearing Cover
Nylock Hex. Socket Hd. Bolt

× 16

Needle Bearing (M661)
First Gear
Seal Packing
Gear Cover
Damper Washer
Damper
Damper Holder
Stopper Ring
Needle Pin

×6

Feather Key

Ч 3 Ч 20

Cylinder
Clutch Spring
Lock Sleeve
Lock Spring
Striker
O-Ring
Clutch

Part Name

Piston
Piston Pin
Connecting Rod Ass'y
Needle Bearing (NSK AJ50 1203)
Cylinder Case
Nylock Bolt (W/Flange)

× 25

O-Ring (1AS-60)
Needle Bearing (B)
Bevel Gear
Side Handle
Handle Holder
Handle Bolt
Stopper Rod
O-Ring (P-16)
Lever Shaft
Under Cover
Shaft Cover
Washer

Nylock Hex. Socket Hd. Bolt

× 12

Lever
Spring
Sleeve
Nylock Bolt (W/Flange)

× 25

Ball Bearing (6202VVCMPS2S)
Dust Washer (B)
O-Ring
Fan
Armature Ass'y (A)
Hex. Hd. Tapping Screw

× 55

Stator Ass'y
Brush Terminal
Dust Washer (A)
Ball Bearing (629VVMC2EPS2L)
Housing Ass'y
HITACHI Label
Brush Cap
Carbon Brush
Brush Holder
Hex. Socket Set Screw

× 8

Bearing Holder
Tail Cover
Tapping Screw (W/Flange)

× 20

Handle
Switch (C)
Handle Cover
Tapping Screw (W/Flange)

× 25

Terminal
Cord Clip
Tapping Screw (W/Flange)

× 16

Cord
Connector (50092)
Dial Frame
Tapping Screw (W/Flange)

× 25

Name Plate
Cord Armor
Controller Circuit
Plug (A)
Plug (B)
Connector (50092)
Pillar Terminal
Case
Grease (A)
Hex. Bar Wrench

4MM

Hex. Bar Wrench

5MM
