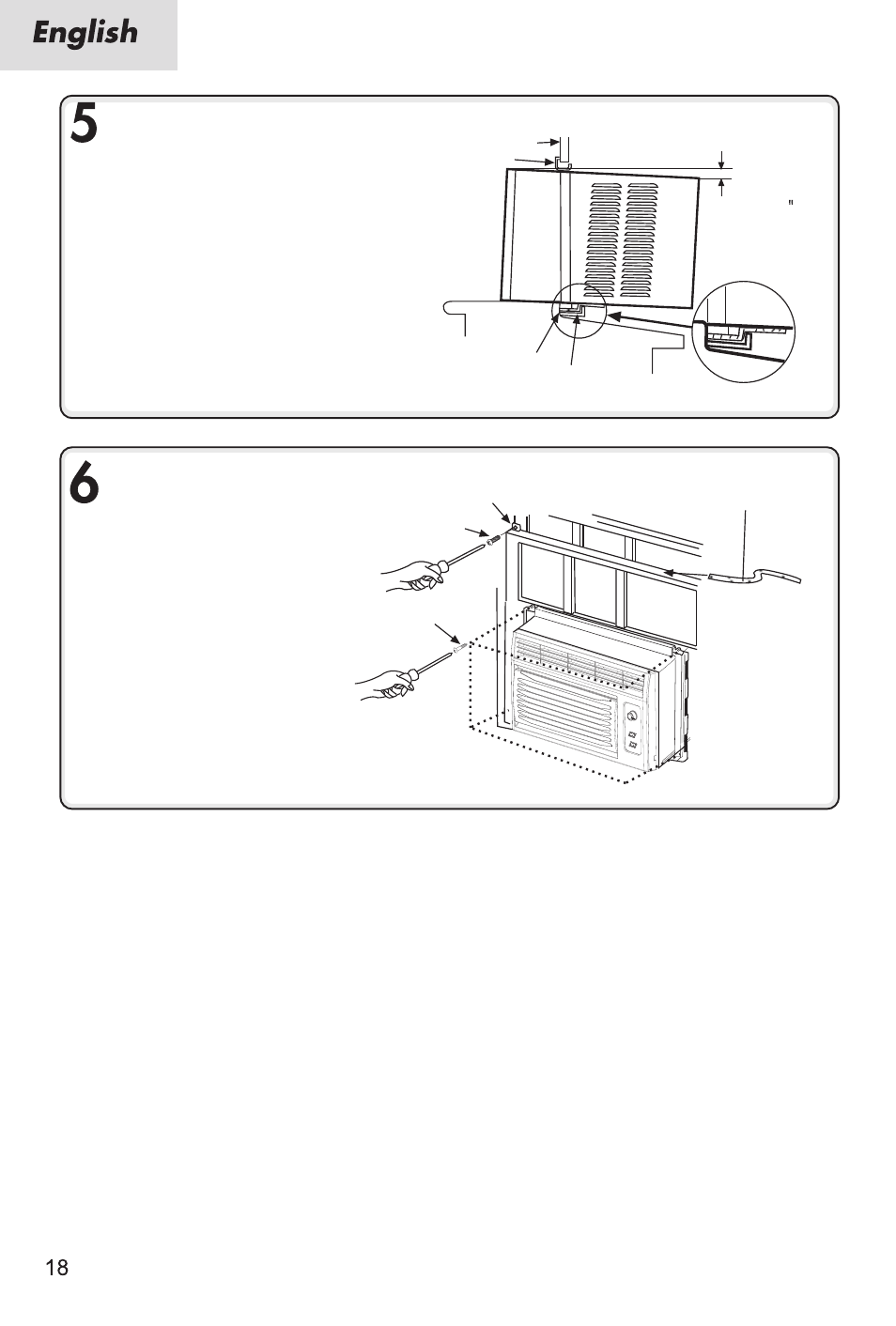

INSTALL THE AIR CONDITIONER
IN THE WINDOW

Carefully

lift

the

air

conditioner

and

slide

into

the

open

window. Make sure the bottom guide of the air conditioner
drops into the notches of the basepan angle.
While

steadying

the

air

conditioner

,carefully

bring

the

window sash down behind the upper guide of the air
conditioner.

WINDOW FRAME

UPPER GUIDE

BOTTOM GUIDE

BASEPAN ANGLE

INSTALL THE SEAL GASKET
AND SASH LOCK

Extend the side curtains to fill the
window opening using 4

wood screws

31/32" to secure them.
Cut the seal gasket to the window
width.

Stuff

the

sash

seal

between

the

glass and the window to prevent air
and

insects

from

getting

into

the

room.

Fasten the basepan angle, using a
short screw13/32".

BASEPAN ANGLE

WINDOW SEAL GASKET

SHORT SCREW13/32"

WOOD SCREW31/32"
