PRECA
UTIONS

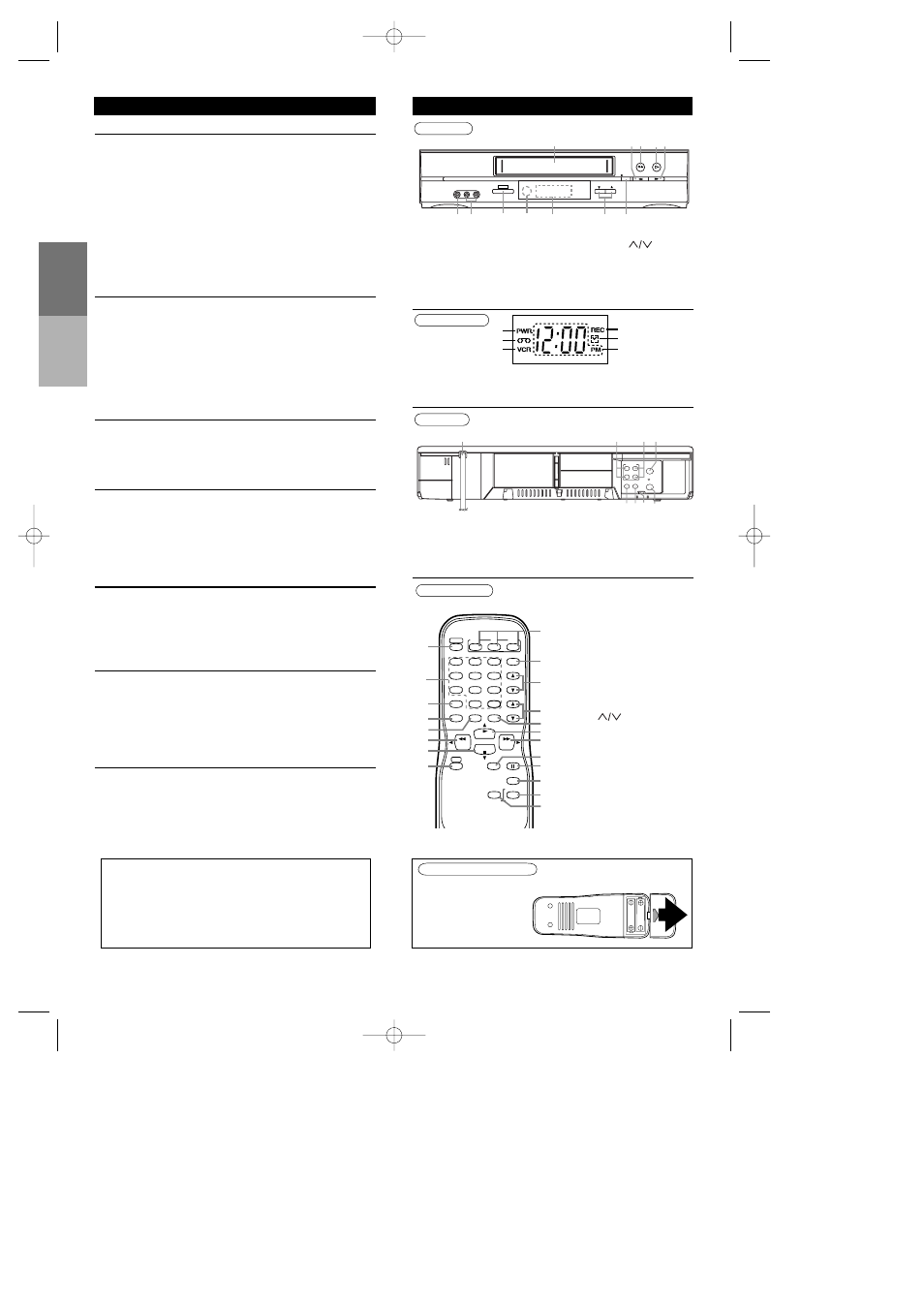

DESCRIPTION OF CONTR
OLS
EN
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR ÉVITER LES CHOC ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE
DE LA PRISE ET POUSSER JUSQU’AU FOND.
1. POWER button
2. NUMBER buttons
3. TAPE SPEED button
4. MENU button
5. DISPLAY button
6. REW button
7. STOP button
8. REC button
9. MODE SELECT buttons
10. VCR/TV button
11. CH button
12. VOL button
13. MUTE button
14. PLAY button
15. F.FWD button
16. SLOW button
17. PAUSE/STILL button
18. SEARCH MODE button
19. COUNTER/MEMORY button
20. EXIT/RESET button
( )
19. AC Power Cord
20. AUDIO OUT jacks
21. AUDIO IN jacks
22. ANT. IN jack 23. VIDEO OUT jack
24. VIDEO IN jack
25. CH3/CH4 selector switch
26. ANT. OUT jack
Front Panel
Display Window
VIDEO-IN AUDIO-IN L R CHANNEL
REC/IRT REW F.FWD
PLAY STOP/EJECT
TRACKING
10 7 6 8 9
POWER
11
1
12
2 3 4 5
14
15
16
17
18 13
Remote Control
POWER
1 2 3
4 5 6
7 8 9
+100 0
TV VCR
REW
PLAY
STOP F.FWD
PAUSE
CH
SEARCH MODE
DISPLAY MENU
TAPE SPEED
1
2
5
4
3
6
8
18
19
17
7
15
14
11
12
13
REC SLOW
16
CATV
VCR/TV
9
MUTE
ENTER
VOL
RESET
EXIT COUNTER
MEMORY
10
20
Rear Panel
19 20 21 22
23 24 26 25
ANT AUDIO
VIDEO
IN
OUT
OUT IN CH3 CH4
OUT
L
R
IN
INSTALL LOCATION
For safety and optimum performance of your VCR:
• Install the VCR in a horizontal and stable position.
• Do not place anything directly on top of the VCR.
• Do not place the VCR directly on top of the TV.
• Shield it from direct sunlight and keep it away from
sources of intense heat. Avoid dusty or humid places.
• Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes
on the sides of the VCR. Avoid locations subject to
strong vibration or strong magnetic fields.
AVOID THE HAZARDS OF
ELECTRICAL SHOCK AND FIRE
• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it
from AC wall outlet. Grasp it by the plug.
• If, by accident, water is spilled on your VCR, unplug
the power cord immediately and take the unit to our
Authorized Service Center for servicing.
• Do not put your fingers or objects into the VCR
cassette holder.
MOISTURE CONDENSATION WARNING
Moisture condensation may occur inside the unit when it is
moved from a cold place to a warm place, or after heating
a cold room or under conditions of high humidity. Do not
use the VCR at least for 2 hours until its inside is dry.
FCC WARNING
This equipment may generate or use radio frequency
energy. Changes or modifications to this equipment may
cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user
could lose the authority to operate this equipment if an
unauthorized change or modification is made.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized recording or use of broadcast television
programming, video tape, film or other copyrighted material
may violate applicable copyright laws. We assume no
responsibility for the unauthorized duplication, use, or other
acts which infringe upon the rights of copyright owners.
A NOTE ABOUT RECYCLING
This product's packaging materials are recyclable
and can be reused. Please dispose of any materials
in accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated
but disposed of in accordance with your local
regulations concerning chemical wastes.
Note to the Cable TV System Installer:
This reminder is provided to call the Cable TV system
installer’s attention to Article 820-40 of the National
Electrical Code, which provides guidelines for proper
grounding – in particular, specifying that the cable ground
shall be connected to the grounding system of the
building, as close to the point of cable entry as possible.
Install two AA
batteries matching
the polarity indicated
inside the battery
compartment.
1. Cassette Compartment
2. REW button
3. STOP/EJECT button
4. PLAY button
5. F.FWD button
6. REC/IRT button 7. CHANNEL button
8. Display Window
9. Remote Sensor
10. POWER button
11. AUDIO Input jacks
12. VIDEO Input jack
( )
13. PWR. indicator
14. TAPE IN indicator
15. VCR indicator 16. REC indicator
17. TIMER indicator
18. CLOCK indicator
PRECAUTIONS DESCRIPTION OF CONTROLS
To insert the batteries
– 2 –
