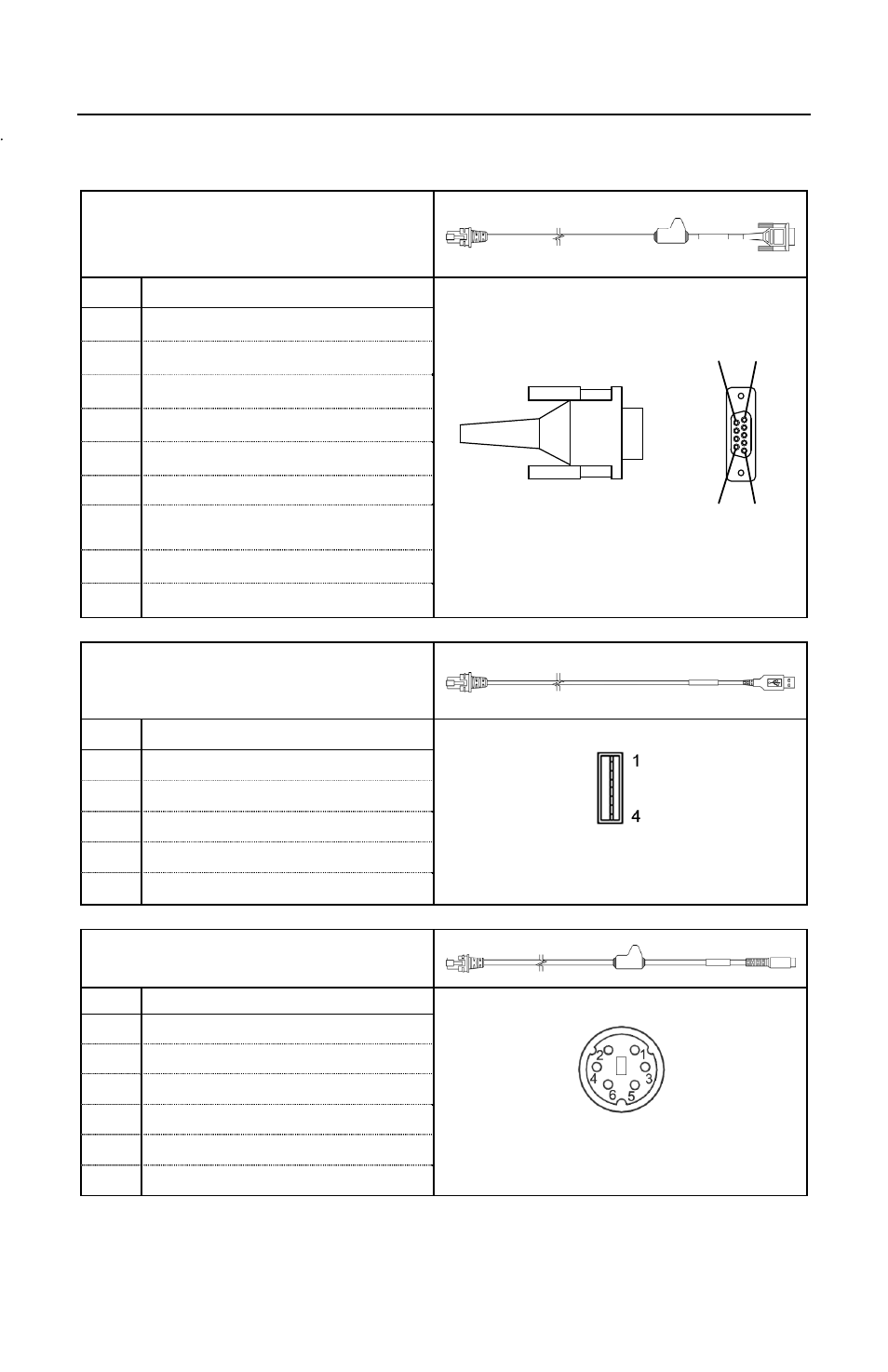

Cable Connector Configurations (Host End)
“Standard” PowerLink Cable
53-53000x-3 coiled or
59-59000x-3 straight
Pin Function
1 Shield
Ground
2
RS232 Transmit Output
3
RS232 Receive Input
4
DTR Input/Light Pen Source
5 Power/Signal
Ground
6
Light Pen Data
7
CTS Input
8 RTS
Output
9 +5VDC
USB Power/Communication Cable
59-59235x-N-3
Pin Function
USB Non-Locking
1 PC
+5V/V_USB
2 D-
3 D+
4 Ground
Shield Shield
Stand Alone Keyboard PowerLink
Cable 59-59020x-3
Pin Function
6-Pin Male Mini-DIN Connector
1 PC
Data
2 No
Connect
3 Power
Ground
4
+5VDC PC Power to KB
5 PC
Clock
6 No
Connect
9-Pin D-Type Connector
9
5
6
1
