9 REAR PANEL CONNECTIONS

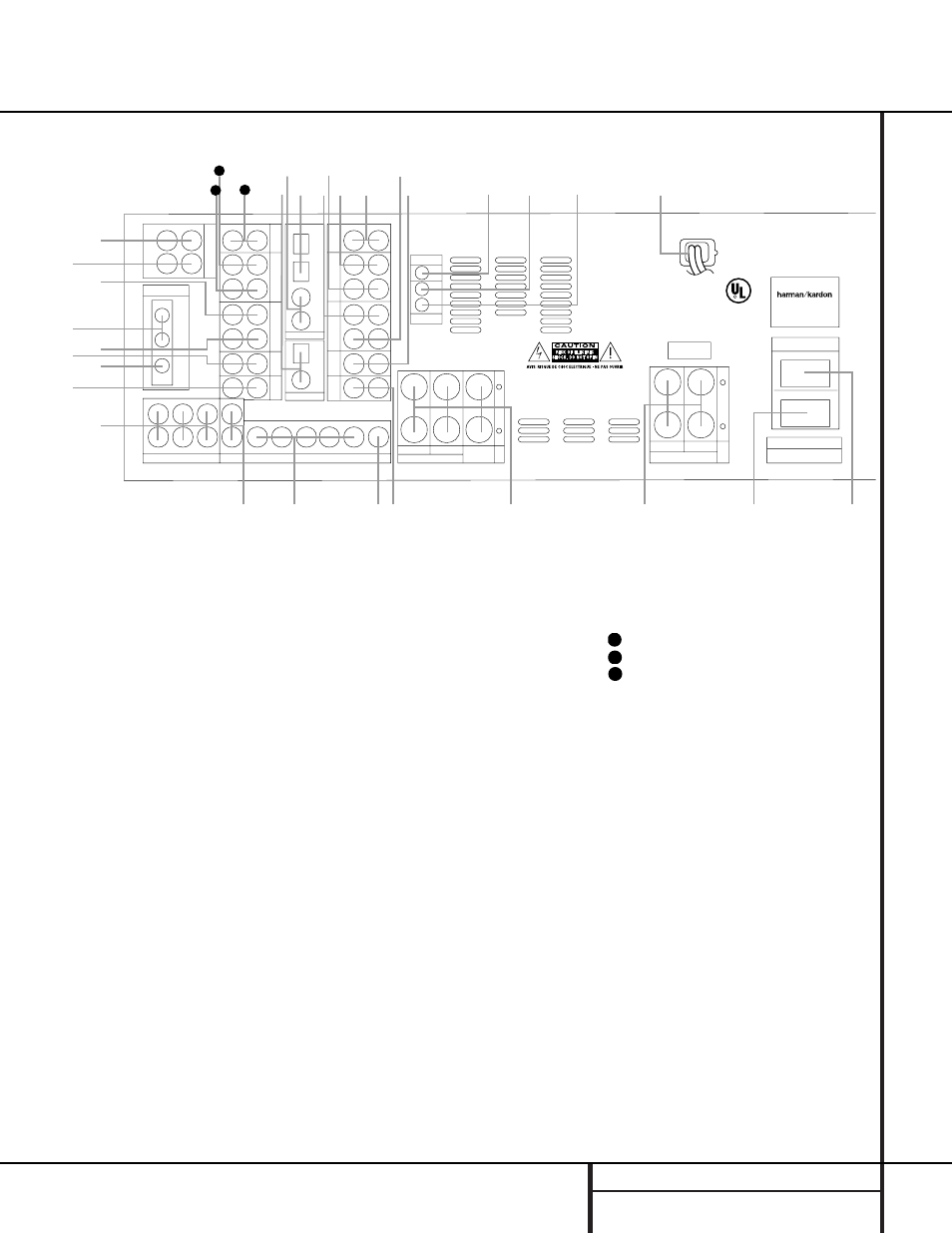

Rear Panel Connections
AC INPUT
~120V/60HZ A
R
C US
LISTED
E191351 40KK
AUDIO EQUIPMENT
TAPE
MULTI OUT FRONT SPKRS (8 Ω )
RIGHT LEFT CENTER
SPKR (8 Ω ) PRE OUT 6 CH. DIRECT INPUT
ANTENNA
DIGITAL IN
DIGITAL OUT
VID 3 VID 3
MULTI
REMOTE
VID 2 VID 2
OPT
OPT
COAX
COAX
VID 1 VID 1
DVD DVD
CD MON.
OUT
IN
OUT
AM
GND
FM
75 Ω
IN
OUT
1
2
1
2
IN
OUT
IN
OUT
IN
OUT
L R
CENTER SL FL ML
SUBWOOFER SR FR MR
L R VIDEO S-VIDEO
+
–
+
–
SURR. SPKRS (8 Ω )
SERIAL NO.
MODEL NO. AVR 310
NORTHRIDGE
CALIFORNIA, USA
MADE IN CHINA
AC OUTLETS
~120V/60Hz
UNSWITCHED / 100W MAX
SWITCHED / 100W MAX
RIGHT LEFT
£
∞
¶
ª
‚ ⁄ ¤ ‹ › fi fl
° · a b c
d
e A ‰ A f
g
i
j
‡
™
¡
¢
§
•
FL FR SL SR CENTER SUBWOOFER
31
32
IN
OUT
IN
h k 33
¡ Tape Inputs
™ Tape Outputs
£ Video 1 Audio Inputs
¢ AM Antenna
∞ Video 1 Audio Outputs
§ DVD Audio Inputs
¶ FM Antenna
• CD Inputs
ª 6-Channel Direct Inputs
‚ Multiroom Outputs
⁄ Preamp Outputs
¤ Subwoofer Output
‹ Video Monitor Outputs
› Front Speaker Outputs fi Surround Speaker Outputs
fl Switched AC Accessory Outlet
‡ Unswitched AC Accessory Outlet
° AC Power Cord
· Remote IR Output
a Remote IR Input
b Multiroom IR Input
c DVD Video Inputs
d Video 1 Video Outputs
e Video 3 Video Inputs
f Video 2 Video Inputs
g Video 2 Video Outputs
h Video 1 Video Inputs
i Optical Digital Inputs j Coaxial Digital Inputs
k Digital Audio Outputs
Video 3 Audio Inputs
Video 2 Audio Inputs
VIdeo 2 Audio Outputs 33
32
31
