Parts are subject to possible modification without notice due to improvements.

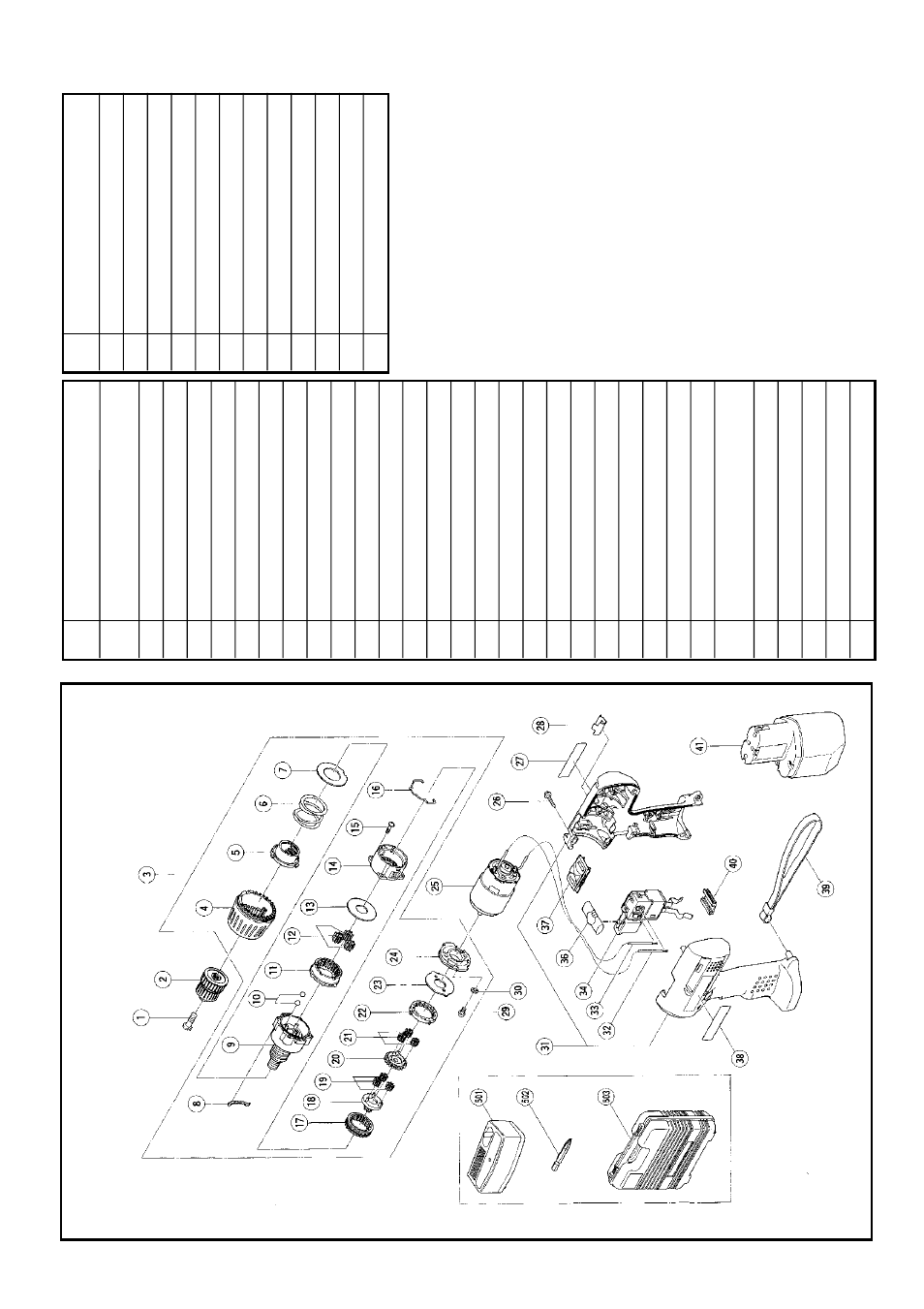

FDS12DVA Item
Part Name
No.
1
Special Screw (Left Hand)
M5
×
35
2
Drill Chuck 10TLRD-N
3
Gear Box Ass'y
4
Cap
5
Nut
6
Spring
7
Washer (D)
8
Click Spring
9
Front Case
10
Steel Ball
D5
11
Ring Gear
12
Planet Gear (C) Set
13
Washer (A)
14
Rear Case
15
Screw Set
D3
×
12
16
Shift Arm
17
Slide Ring Gear
18
Pinion (C)
19
Planet Gear (B) Set
20
Pinion (B)
21
Planet Gear (A) Set
22
First Ring Gear
23
Washer (B)
24
Motor Spacer
25
Motor
26
Tapping Screw (W/Washer)
D3
×
16
27
Nameplate
28
Bit Holder
29
Machine Screw
M3
×
8
30
Spring Washer
M4
31
Housing (A)
• (B) Set
Item
Part Name
No.
32
Internal Wire (B) (BLACK)
33
Internal Wire (B) (RED)
34
DC-Speed Control Switch
36
Pushing Button
37
Shift Knob
38
HITACHI Label
39
Strap
40
Terminal Support (A)
41
Battery FEB12S
501
Charger (Model UC12SD)
502
Phillps Bit No.2 55L
503
Case
FDS12DVA
