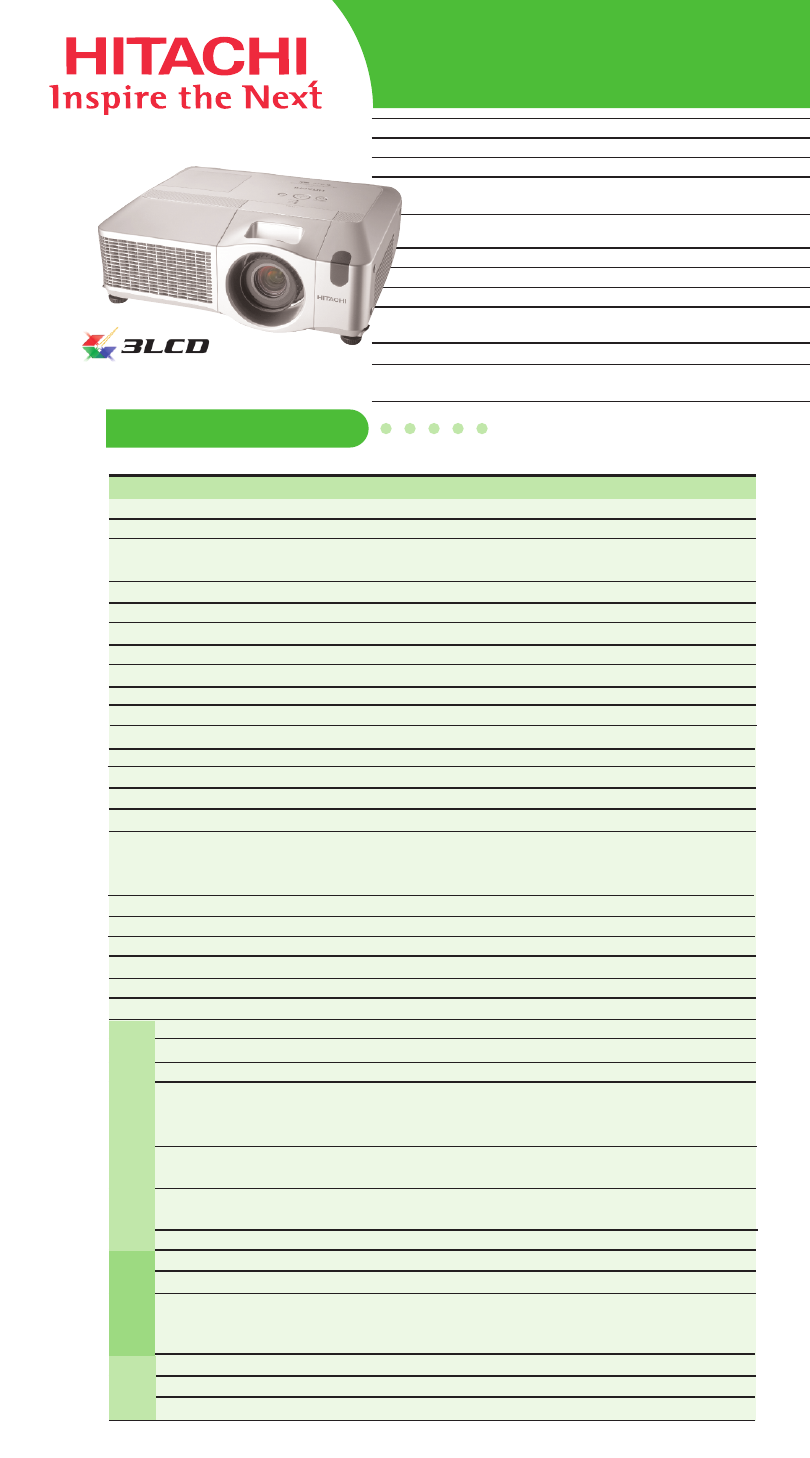

background image

CP-X605 series

Model name

CP-X605 series

Liquid crystal panel structure

0.8” polysilicon active-matrix TFT x 3

Number of pixels

786,432 pixels

Resolution

Video

540 TV lines

RGB

1024 dots X 768 lines

Colors

16.7 million colors

Aspect ratio

Native 4:3/16:9 compatible

Lens

F1.7 - 2.1 manual zoom 1:1.2

Throw ratio (distance:width)

1.5 - 1.8:1

Lamp 285W

UHB

Brightness

4,000 ANSI lumens

Expected lamp life

Approx. 2,000 hrs

Contrast ratio

1,000:1 (using Active Iris)

Speakers

4W x 4

Power supply

AC100-120V/AC220-240V 50/60Hz

Power consumption

460W

Operating temperature

5°C ~ 35°C (41°F ~ 95°F)

Input signals

RGB

VGA, SVGA, XGA,SXGA, SXGA+, UXGA, MAC13”, MAC16”

Composite video

NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N

Component video

480i, 576i, 480p, 720p, 1080i

Acoustic noise level

35dB (28dB in whisper mode)

H sync

15kHz ~ 106kHz

V sync

50Hz ~ 120Hz

Vertical keystone correction

Digital keystone +/– 40°

Horizontal Keystone Correction

Digital keystone +/– 40°

Approvals

UL60950 / C-UL, FCC Part15, Class B, CE,EN60950

Analog RGB input

15-pin D-sub connector x 2

Analog RGB output

15-pin D-sub connector x 1

Digital RGB input

M1-D x 1

Video input

S-video

Mini DIN 4-pin connector x 1

Composite video

RCA jack x 1

Component video

RCA jack x 3

Audio

Input

Stereo mini jack x 2, RCA jack (L/R) x 2

Output

Stereo mini jack x 1

Control terminals

9-pin D-sub connector x 1 (RS-232 control)
M-1 (for USB remote mouse only)

Others

RJ-45 Port / 100 BASE-T

Dimensions

16.5” x 5.5” x 12.6” (W x H x D)

Weight 15.6

lbs.

Supplied accessories

Remote Control, Batteries (AA), RGB Cable,
Power Cord, Multiple Language, Operator / Safety Manual,
Security Label

Lamp

CPX650 lamp (DT00771)

Remote Control

HL02194

Filter

MU03642

28 dB (Whisper Mode)

High performance filter

My Screen / My Memory

Whiteboard Mode

Blackboard Mode

Network Control,

Maintenance & Security

Security Bar

Kensington Security Slot

Progressive Scan

4 X 4 watt speakers with

SRS WOW™ technology

Audio Input / Output

Input Source Naming

Chassis

Replace- ment par

ts

4,000 ANSI Lumens

Native XGA Resolution

15.6 lbs

2 RGB inputs, 1 RGB Output,
and 1 M1-D

Component / Composite /
S-Video Inputs

HDTV Theater Ready

Digital Gamma Correction

Remote Control with “My Buttons”

Horizontal Vertical Keystone

Correction

Horizontal and Vertical lens shift

1000:1 contrast ratio

(using Active Iris)

S P E C I F I C A T I O N S

Input/Output ter

minals
