Technical data
1
1. Inner cylinder:
2. Insulation: Polyurethane foam, thickness-45 mm, good heat preservation effect.
3. Outer shell: Aluminium / zinc coated steel sheet.
4. Frame: Steady structure, shapely and durable . SUS 304 stainless steel, food grade.
Features
Technical parameter

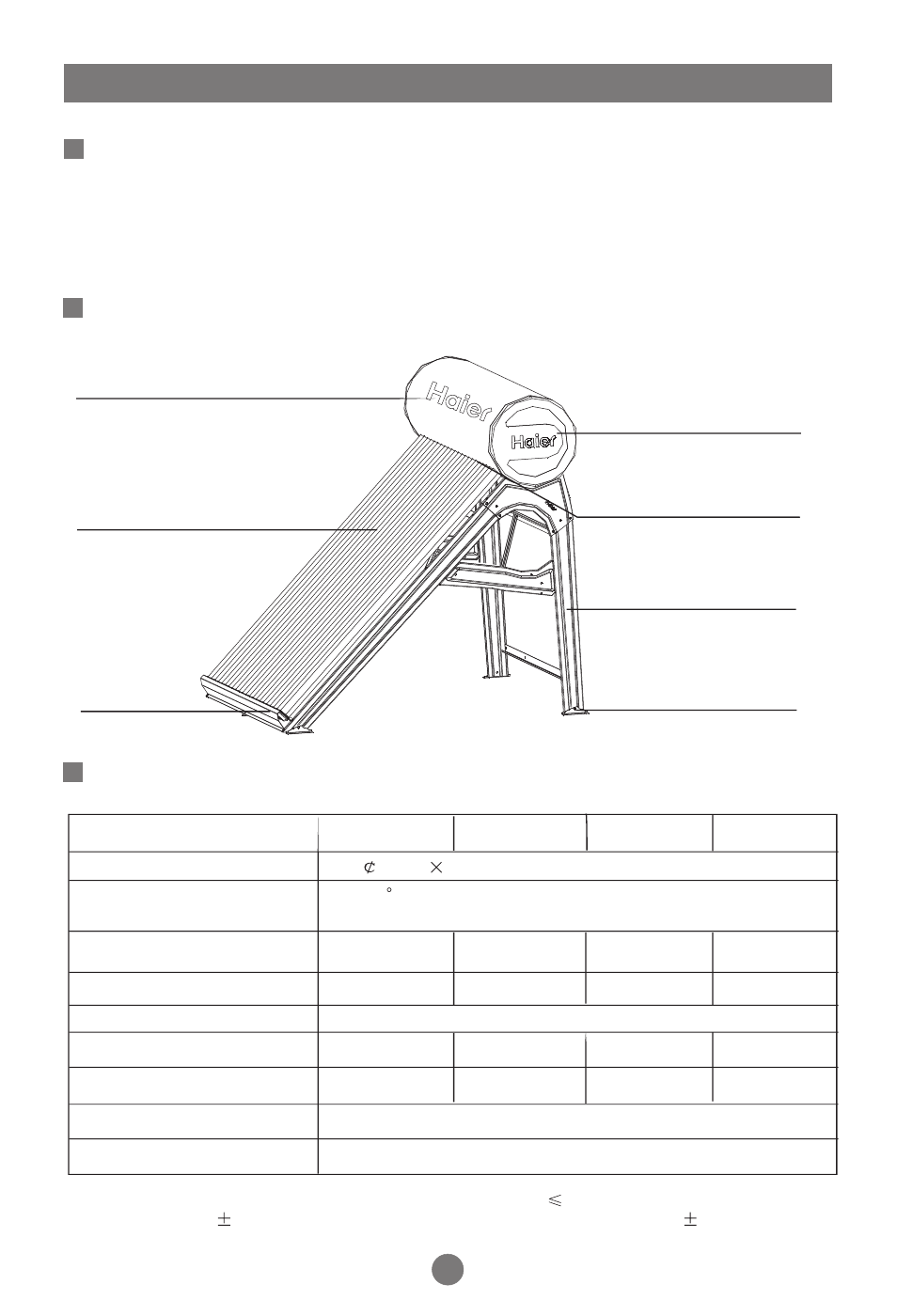

Appearance and parts
Models
Specification of tubes
Collector frame angle
standard fixed
Number of tubes
Aperture area
Volume of one tube
Usable water
Gross weight
58mm 1800mm all glass evacuated tubular collector
45
Remarks:1. The warp of a parameters is 3%. the warp of usable water
parameters is 5%. The permitted error limit of other parameters is 10%
perture area
QBJ1-130A58E QBJ1-150A58E QBJ1-175A58E QBJ1-200A58E
14 16 19 22
2 1.79m
2 2.07m 2 2.48m
2 2.90m
2.6L
130L 150L 175L 200L
74kg 81kg 91kg 107kg
Electric auxiliary heating Rated power: 1500W
Water level sensor
Using the water level sensor with the height of 360 mm
Outer shell
Evacuated tubes
Base support
Cover
Silicon seal ring
Frame
Foot cushion
