2 Installation
HandyTone-486 Analog Telephone Adaptor is an all-in-one VoIP integrated device designed to be a
total solution for networks providing VoIP services.
The HandyTone-486 VoIP functionalities are available via a regular analog telephone.
The following photo illustrates the appearance of a HandyTone-486.
Top View Side Views

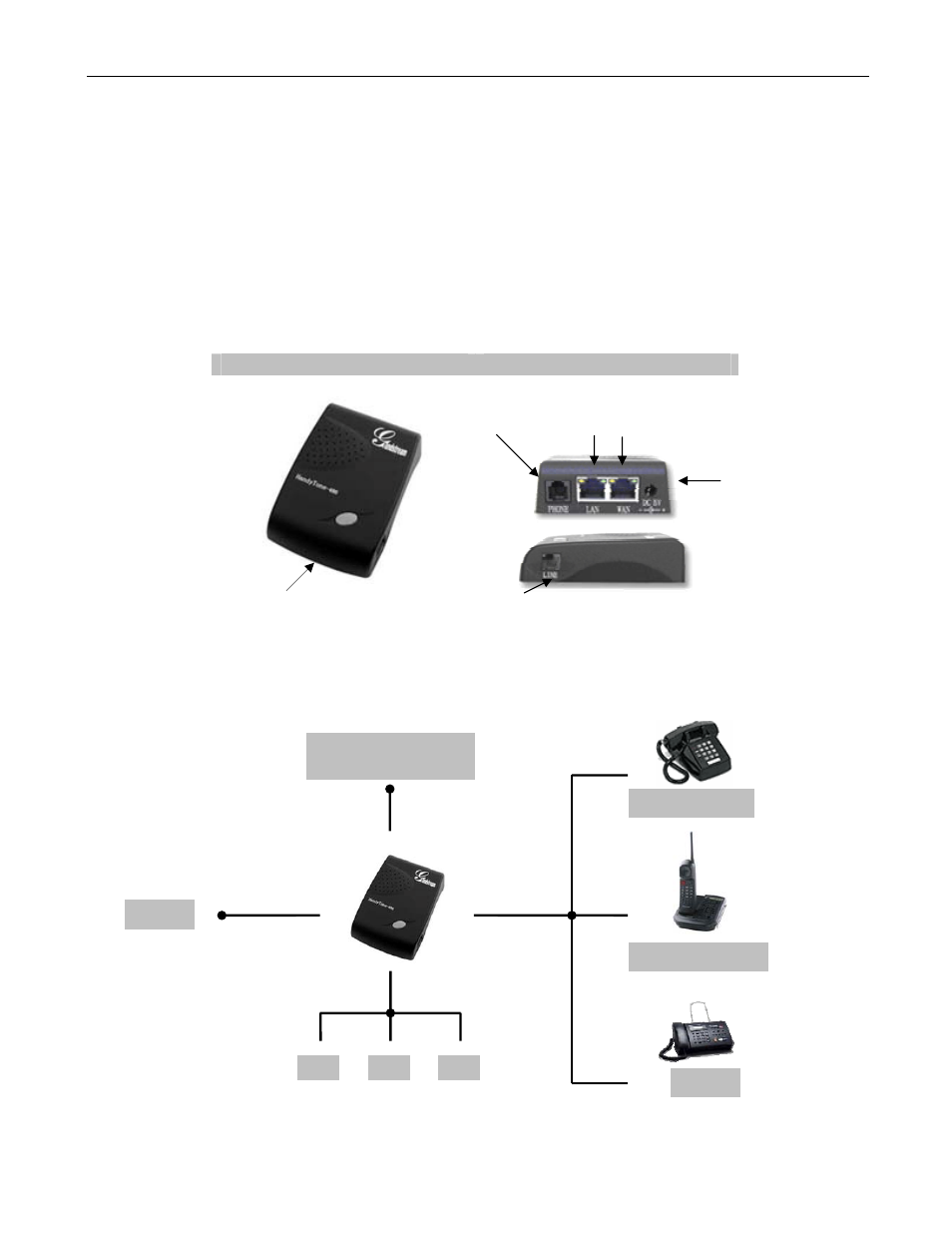

Interconnection Diagram of the HandyTone-486:
Fax
Cordless Phone
Analog Phone
Internet ADSL/Cable
Modem Ethernet
PSTN
PC PC PC
LAN
WAN
LINE PHONE
BUTTON
RED LED
GREEN LED
RJ45
10M Ethernet
LAN - WAN
RJ11
Telephone
(Phone)
+5V/1200mA
RJ11
Phone Line
(Line)
