6
Installing Fan to
the Electrical Box
WARNING
THE TAB AS SHOWN IN FIGURE 12 IS ONLY TO
BALANCE THE FAN WHILE ATTACHING
WIRING. FAILURE TO HANG AS SHOWN IN
FIGURE 12 MAY RESULT IN TAB BREAKING
CAUSING THE FAN TO FALL. TAB MUST PASS
FROM INSIDE TO OUTSIDE OF CANOPY.
WARNING
WHEN USING THE STANDARD BALL/ DOWN-
ROD MOUNTING. THE TAB IN THE RING MUST
REST IN THE GROOVE OF THE HANGER BALL.
FAILURE TO PROPERLY SEAT THE TAB IN
THE GROOVE COULD CAUSE DAMAGE TO
WIRING.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY.
MOUNT FAN ONLY TO AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.

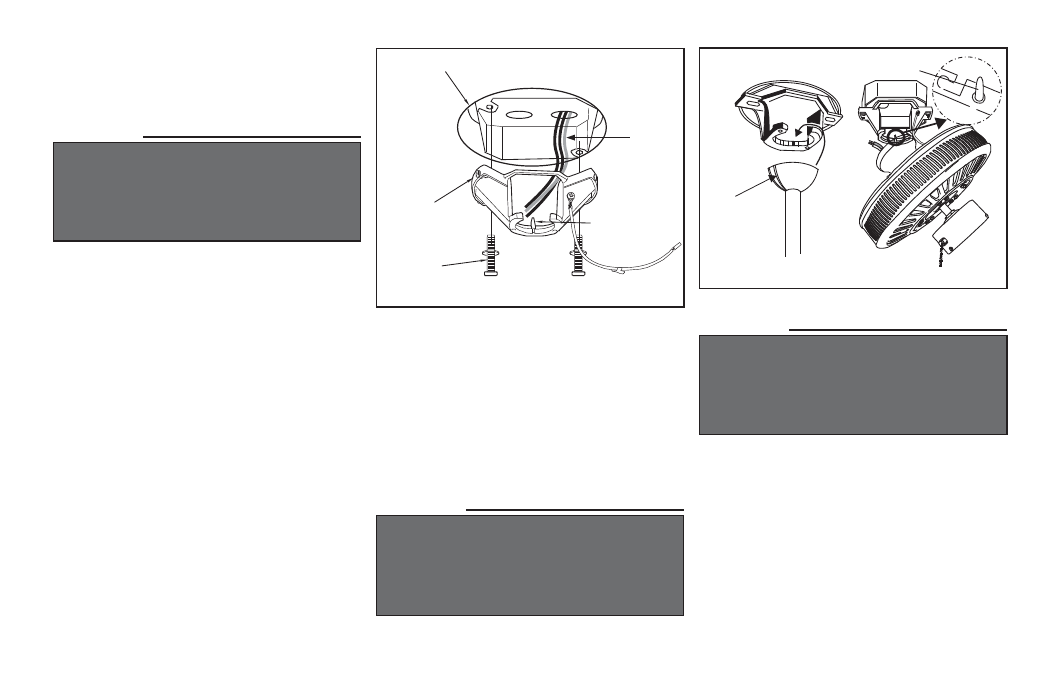

UL Listed Outlet Box
Ceiling Mounting
Bracket
Tab
120V
Wires
Mounting
Screws
(Supplied
with Outlet Box)
Figure 11
Carefully lift the fan assembly up to the ceiling
mounting bracket and hang the fan on the tab
provided by utilizing one of the holes at the
outer rim of the ceiling canopy (Figure 12). If
use standard mounting, seat the hanger ball in
the mounting bracket socket. Make sure the tab
on the mounting bracket socket is properly
seated in the groove in the hanger ball (Figure
12). 4.
Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket as
shown in Figure 11.
Install the ceiling mounting bracket on the
outlet box with the screws and washers
provided with your outlet box (Figure 11).
When using “close-to-ceiling” mounting, it is
important that the mounting bracket be level. If
necessary, use leveling washers (not included)
between the mounting bracket and the outlet
box. Note that the flat side of the mounting
bracket is toward the outlet box. (Figure 11)
Security tighten the two mounting screws.
1.
2.
3.
Tab
Figure 12
Groove
Standard Mounting Close-to-Ceiling Mounting
Hook
