Secure both top corners using a 8.
Connector B on the left side and a
Connector C on the right side, again
make sure the unconnected point on
the Connectors face towards you.
Secure the bottom left-hand corner
9.
of the Panel with Connector D. Use
the Hex Wrench (T) to fasten a Hex
Screw (S) into the hole on the bottom
of the Bottom Pole.
Secure the bottom right-hand corner
10.
of the Panel with Connector E. Use
the Hex Wrench (T) to fasten a Hex
Screw (S) into the hole on the bottom
of the Bottom Pole.
Repeat the above steps to assemble
11.
the Rear Panel (L).

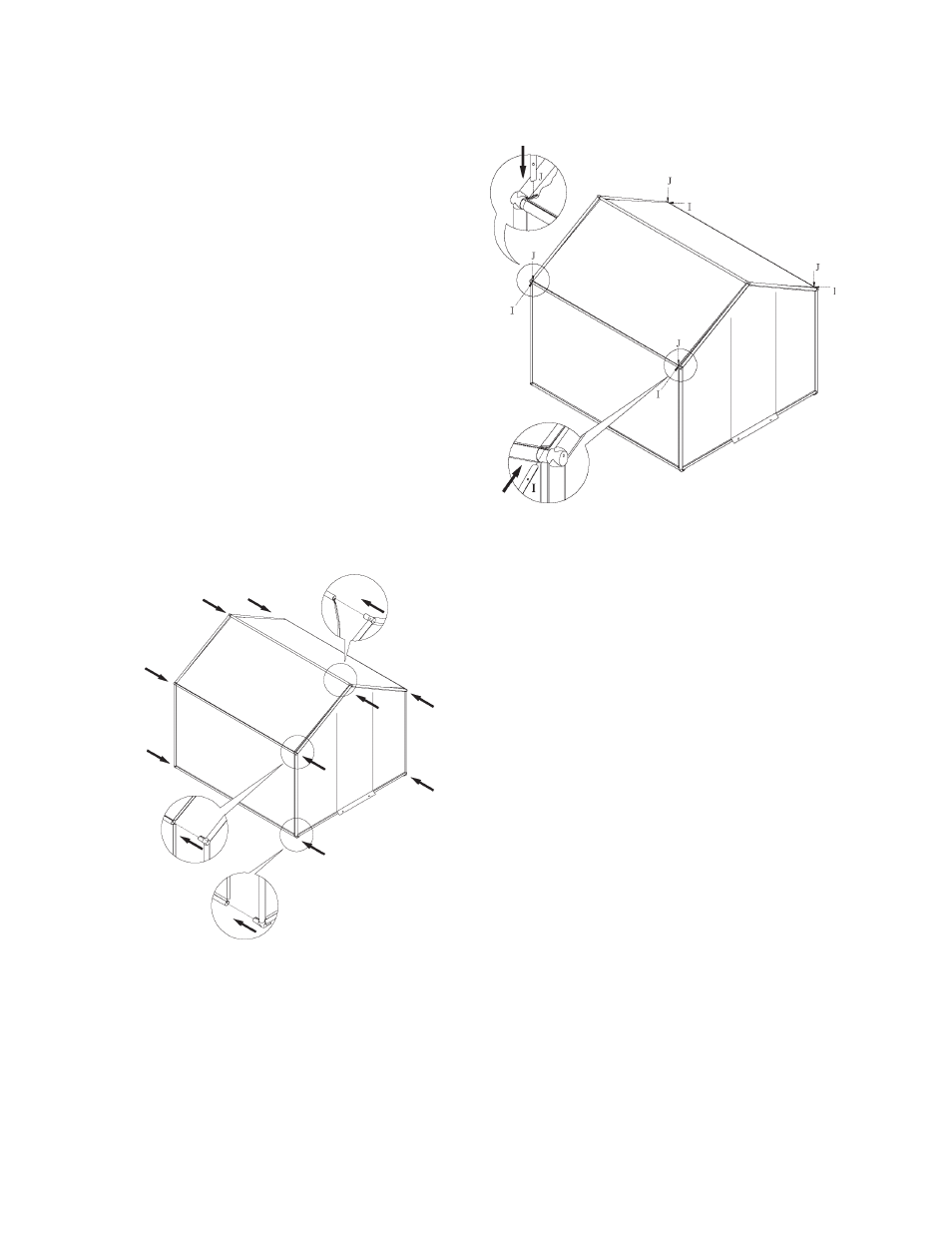

Figure for panel assembly (step 12)
12. Line up the Connectors on the Front
and Rear Panels and connect to the
Body Panel (M). The uppermost pole
in the Body Panel should be turned
with the connection downward. All
other poles should be turned with the
connection upward, as shown.
Figure for bar installation (steps 13-14)
13. Insert Rafter Bars (I) into the Sleeves
at the top of the Body Panel (M).
Insert Side Bars (J) into the Sleeves
14.
at the sides of the Body Panel (M).
