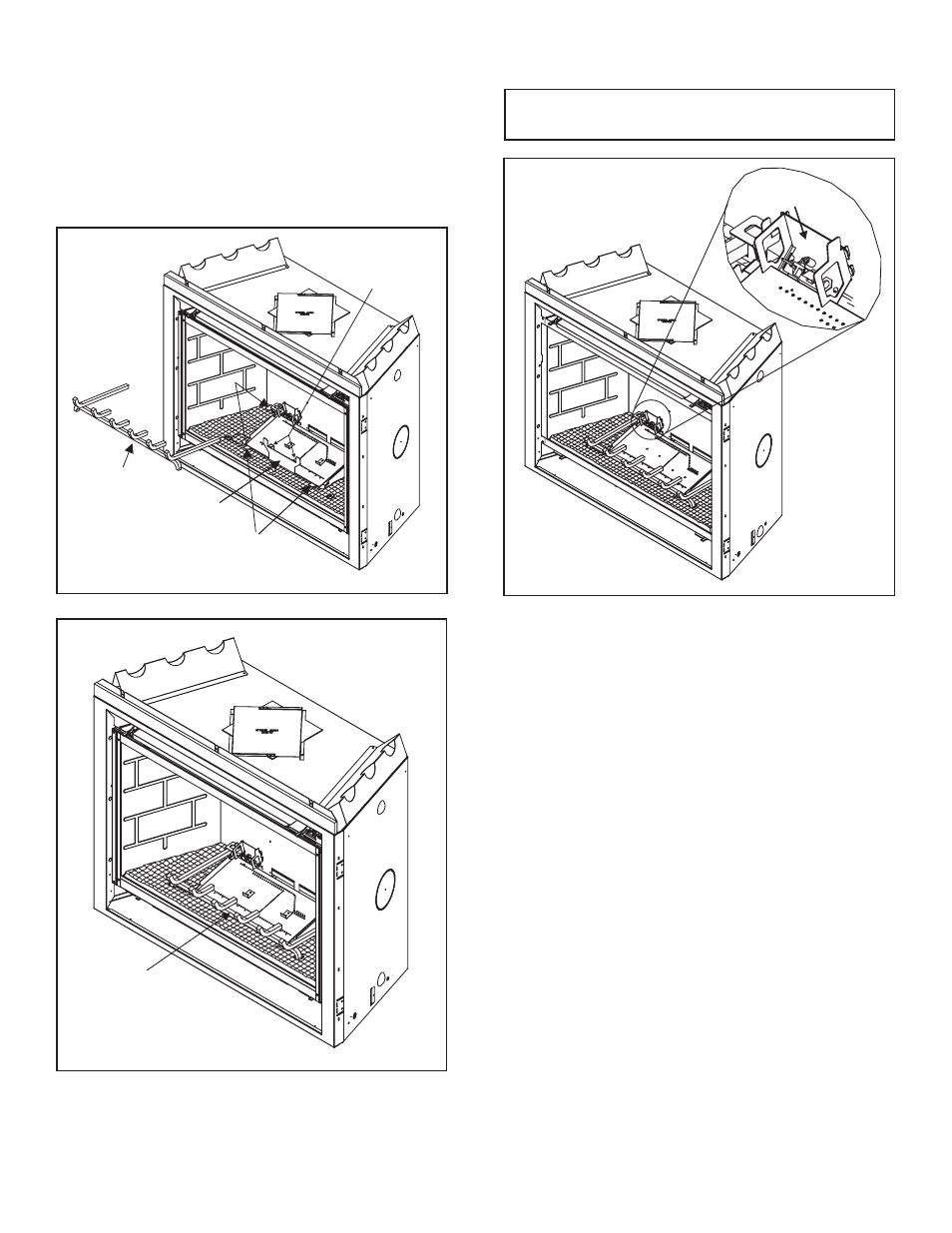

Figure 9.6
E. Checking Pilot Plate D. Completing Grate Set-up
1. Straighten the tabs on the grate bracket (see Figure
9.4) and remove grate from unit.
2. Remove grate bracket (see Figure 9.4) by bending it
back and forth until it breaks. Discard grate bracket.
3. Remove 4 tabs holding base refractory (see Figure 9.4)
by bending tabs back and forth until they break.
Figure 9.5 Re-install grate in unit
Figure 9.4 Removing Grate
Note: Ensure pilot plate is in place. This will ensure pilot
stability (see Figure 9.6)
PILOT
PLATE
RE-INSTALL
INTO THE UNIT
REMOVE GRATE
REMOVE GRATE BRACKET
REMOVE TAB HOLDING DOWN
BASE REFRACTORY (4 PLACES)
STRAIGHTEN TO
REMOVE GRATE
4. Reinstall grate into unit (see Figure 9.5).
