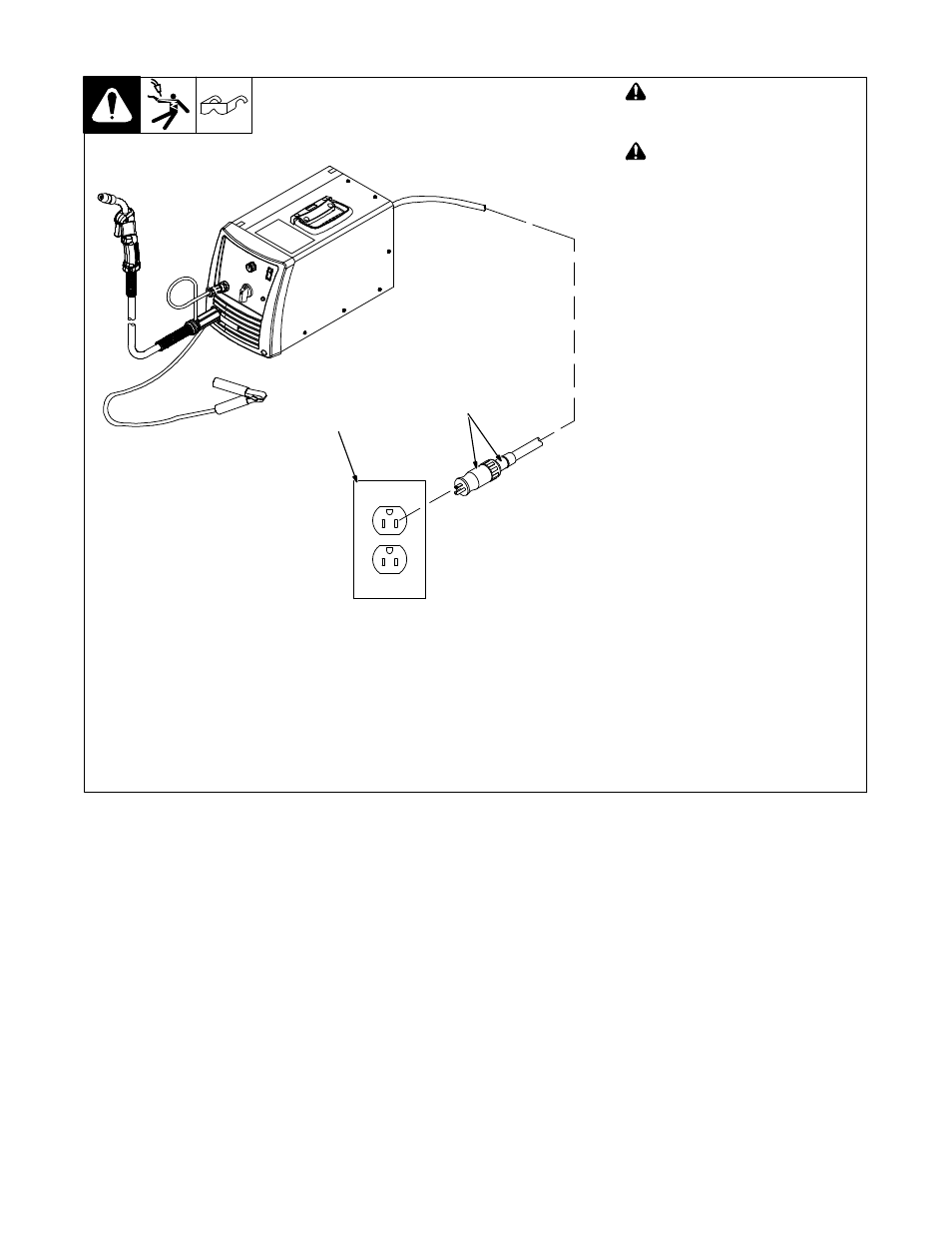

5-13. Connecting 1-Phase Input Power For 115 VAC Input

Ref. 250 332-A

Installation must meet all National

and Local Codes − have only

qualified persons make this

installation.

Always connect green or green/

yellow conductor to supply

grounding terminal first, and never

to a line terminal.

For 115 volts AC input power, a 20 ampere

individual branch circuit protected by

time-delay fuses or circuit breaker is

required.
1

Multi-Voltage Plug And Power Cord

Connector (NEMA Type 5−15P Plug

Shown)

For multi−voltage plug connections, see

Section 5-11.
2

Receptacle − NEMA Type 5−15R

(Customer Supplied)
