47 Inch Models (Includes Table Top Stand) Weight (lbs./kg): 74.3/33.7

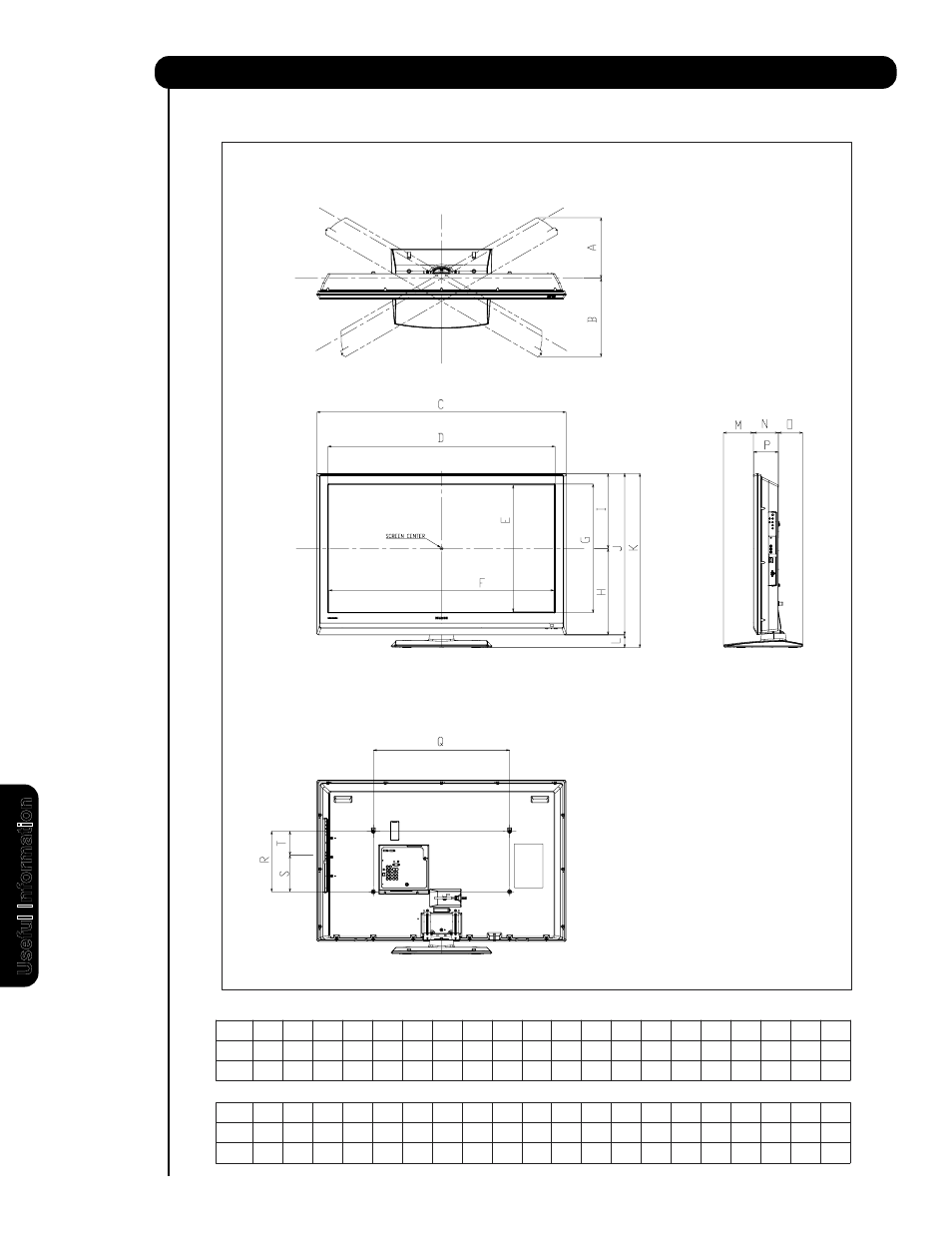

Rear View, Use as Reference for Wall Mount Bracket
Set Dimensions
A B C D E F G H J T S L M Units I K R Q P O N
mm
Inches 11-1/16 14-1/4 45-5/16 41-5/16 23 40-15/16 23-7/16 15-3/4 13-5/8 29-3/8 31-11/16 2-5/16 5-7/16 4-1/2 4-7/16 4-1/2 24-13/16 11 6-11/16 4-5/16
281.05 362.26 1151.30 1050 584.82 1039.68 595 399.40 346.60 746 805 59.10 138.70 114.70 112.08 114.18 630 280 169.80 110.20
47"
42"
42 Inch Models (Includes Table Top Stand) Weight (lbs./kg): 61.3/27.8
A B C D E F G H J T S L M Units I K R Q P O N
mm
Inches 10 13-3/16 41 36-13/16 20-9/16 36-5/8 20-3/4 14-1/2 12-7/16 26-15/16 29-1/4 2-5/16 5-7/16 4-1/2 4-7/16 4-1/2 24-13/16 11 6-11/16 4-5/16
253.56 334.77 1041.70 934.5 523 930.20 527 368.40 315.60 684 743 59.10 138.70 114.70 112.10 114.18 630 280 169.80 110.20
