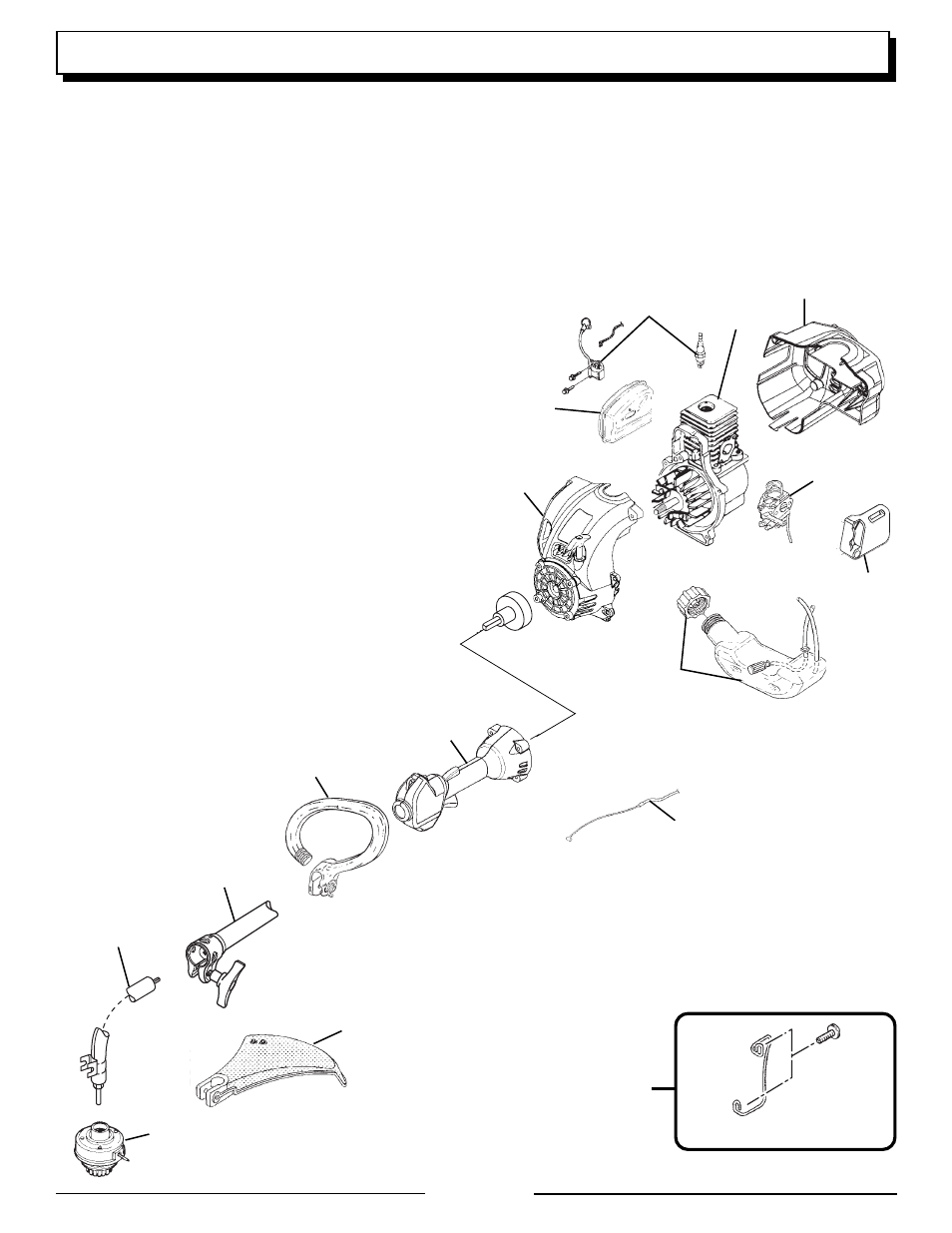

SERVICE PARTS
P
OPTIONAL MUFFLER GUARD
G
E
H
K
F
Q
L
J
O
N
A
C
M
B
D
For product information, technical help,
dealer locations or parts ordering information
visit our website at: www.homelite.com or
call 1-800-chainsaw (1-800-242-4672).
P/N DESCRIPTION
A. UP04634 Muffler Assembly w/Gasket
Includes:
06502 Screen-Spark Arrestor
B. 984574001 Carburetor Assembly
C. 984878001 Ignition Assembly
Includes:
PS02227 Spark Plug
D. 984876001 Air Filter Assembly
Includes:
98760 Filter
E. 984877001 Starter Assembly
F. UP00020 Fuel Tank Assembly
Includes:
A09116 Fuel Cap
G. PS01127 Rear Housing
H. 984879001 Control Handle Assembly
J. PS01177 Cable-Throttle
K. 06542A Handle
L. 984716001 Driveshaft Assembly - Upper
M. UP03851 Driveshaft Assembly - Lower
N. PA01014 Deflector
O. DA03001A Stringhead - Complete (.080 in. [2.0 mm])
Includes:
A98231A Housing & Eyelet
06713 Spring-Compression
PA0387A Spool & String (.080 in. [2.0 mm])
A98866A Retainer-Spool (R.H. Thread, Black)
P. UP04099 Muffler Guard Kit (Optional)
Q. Engine Assembly
