Page 9 SKU 42654 For technical questions, please call 1-800-444-3353.
REV 07/02
EXHAUST PORT
FIXED BAR
(#34)
HEX SCREW
(#45)
FRAME (#50)
HEX SCREW (#45)
LONG SCREW
(#37)
CLIP WASHER (#71)
BOLT (#73)
WASHER (#72)
SAW BLADE (#70)
(TEETH POINTING
TOWARD FRONT)

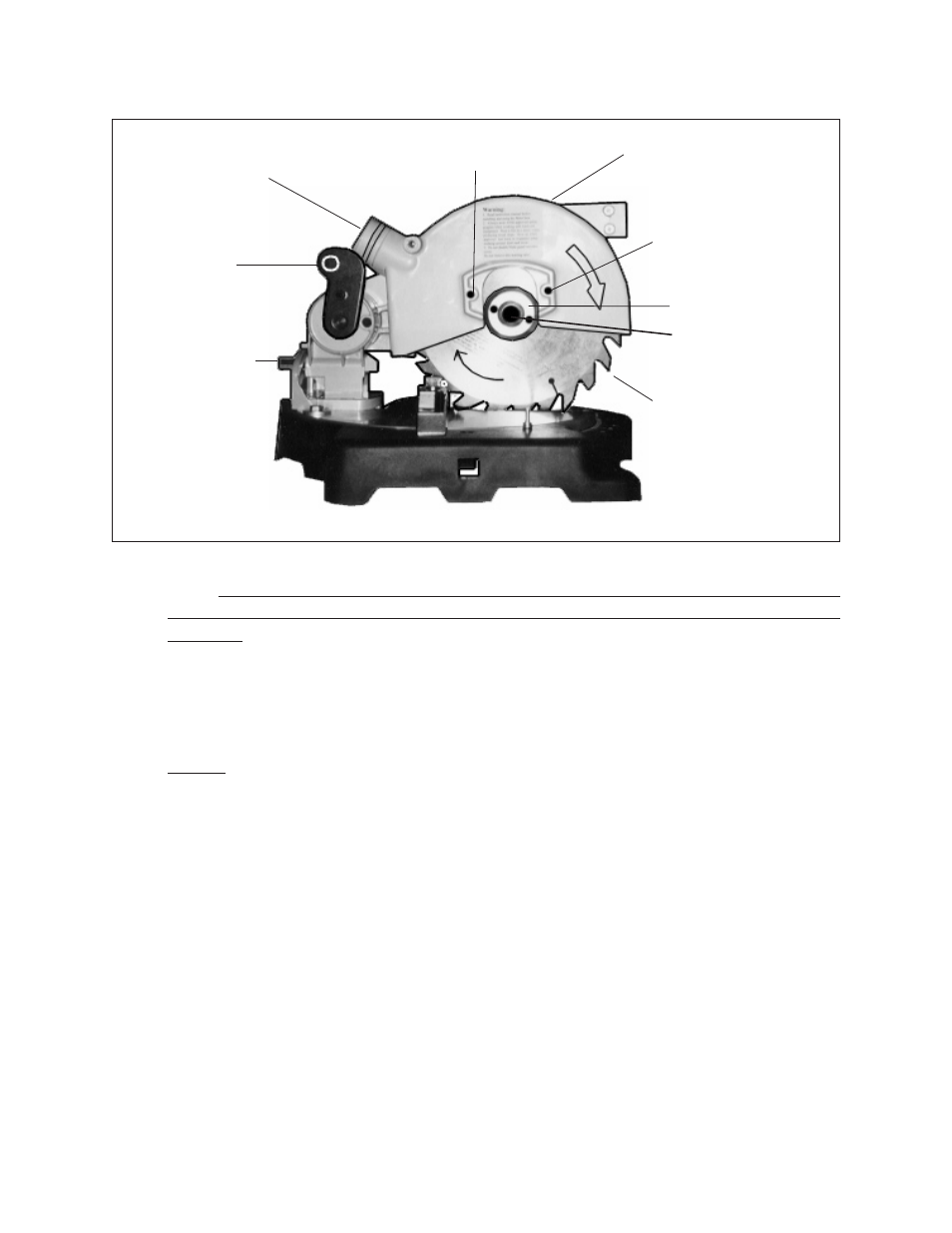

FIGURE E
Raise and hold the Frame (50) while inserting the Saw Blade (#70) onto the Shaft
(62).
NOTE: Make sure the teeth of the Saw Blade point toward the front of the
Miter Saw, and the arrows shown on the Frame and Saw Blade point in the same
direction.
(See Figure E, and Assy. Diagram.)
Allow the Frame (50) to automatically return to its original position.
Place the Clip Washer (71) and Washer (72) back onto the Shaft (62). Then, re-
tighten the Bolt (73) onto the Shaft.
NOTE: Once this procedure is completed, make sure to remove the Deep Socket
Wrench and Clip Washer Wrench from the Compound Miter Saw.
6.
7.
8.
9.
