DEALER ASSEMBLY
INSTRUCTIONS
I
2
3
4
5
6

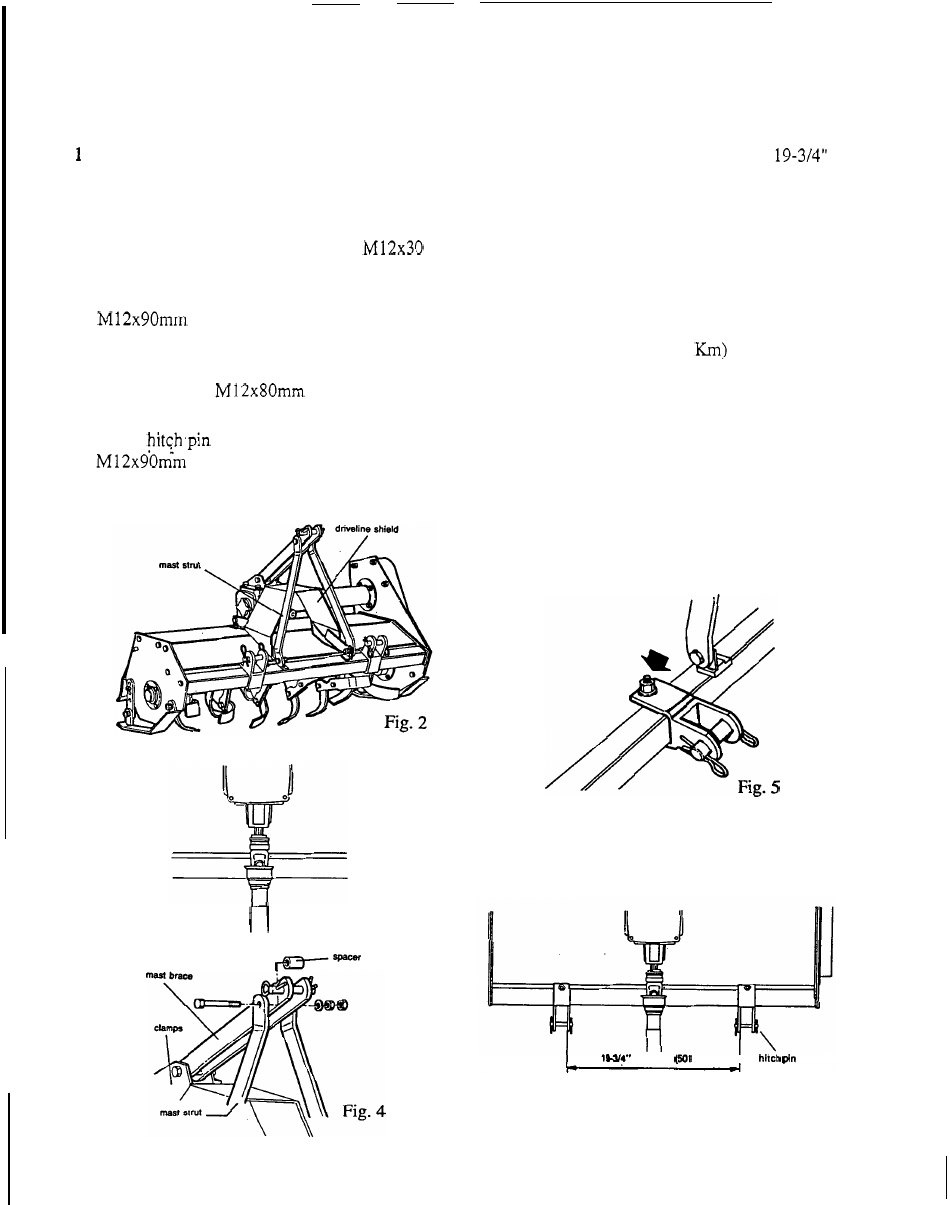

Install female end of driveline onto Tiller
gearbox input shaft and secure with proper
quick locking device Fig. 3.
Attach three point hitch mast struts and
driveline shield to tiller frame using
mm. bolts, lock washers and nuts Fig.2.
Attach mast braces to mast struts using a
bolt, spacer, nut and jam nut
Fig. 4.
Secure mast brackets onto clamps on gearbox
housing using a
spacer, nut and
jam nut.
Install brackets onto frame using two
bolts, with lock washers. Fig. 5
Brackets must be installed with the weld nut
Fig. 3
on top side maintaining a distance of
(501 mm) centered between brackets. Fig. 6.
6 Check gearbox oil level per instructions in
LUBRICATION section.
7 Make certain all safety shields and safety
labels
are in place and in good condition.
8 Check the tiller tine bolts to ensure they are
tight.
Torque to 73 ft. lbs. (10.1 Fig. 7.
parts of the driveline Fig. 8.
grease, ensure the tiller tine shaft and the
driveline are lubricated Fig. 9
9 Apply a coating of grease to the telescoping
10 Using a grease gun and a multi-purpose
mm) bracket
Fig. 6
