4. Each of the Terminal Pins has been marked on the rear of the Tail Light housing; Ground,
Tail, and Stop/Turn. Connect each of the wires from your vehicle to the Tail Light. Make
certain the ground wire, usually white, is connected to the ground Terminal Pin.
5. Once the wires are properly connected, reconnect the battery. Test the wires and Tail Light
to make certain it is working properly before securing the Tail Light in place.
6.
Use 3/16” diameter hardware in each of the three screw holes to secure the Tail Light in
place. Mounting hardware is not included.
No replacement parts are available for this product.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL
ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO
THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO
REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL
REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT
OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
REV 06l

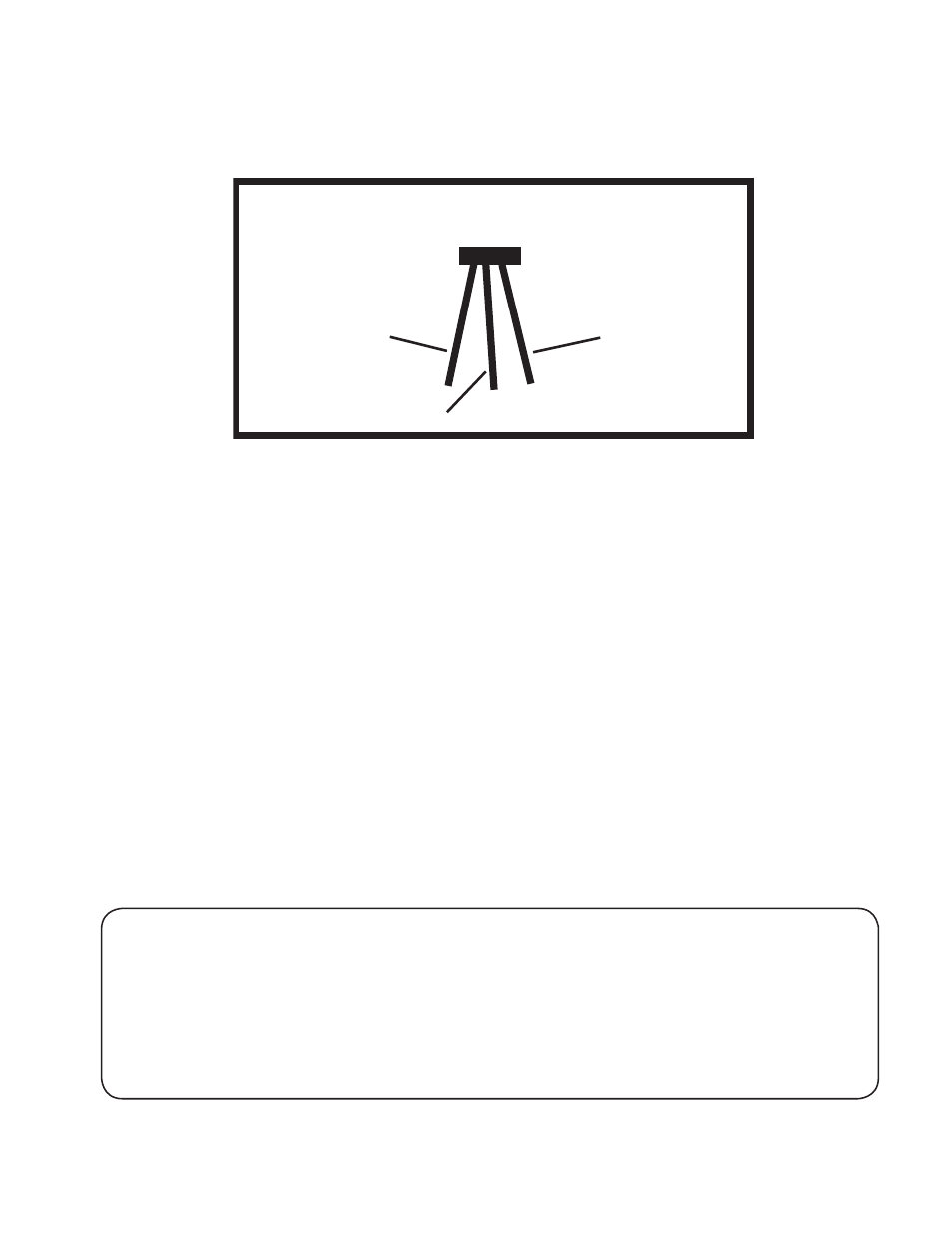

WIRING DIAGRAM
Black Wire
(Tail Light)
Red Wire
(Stop / Turn)
White Wire
(Ground)
