5.1. Hardware Description
1).

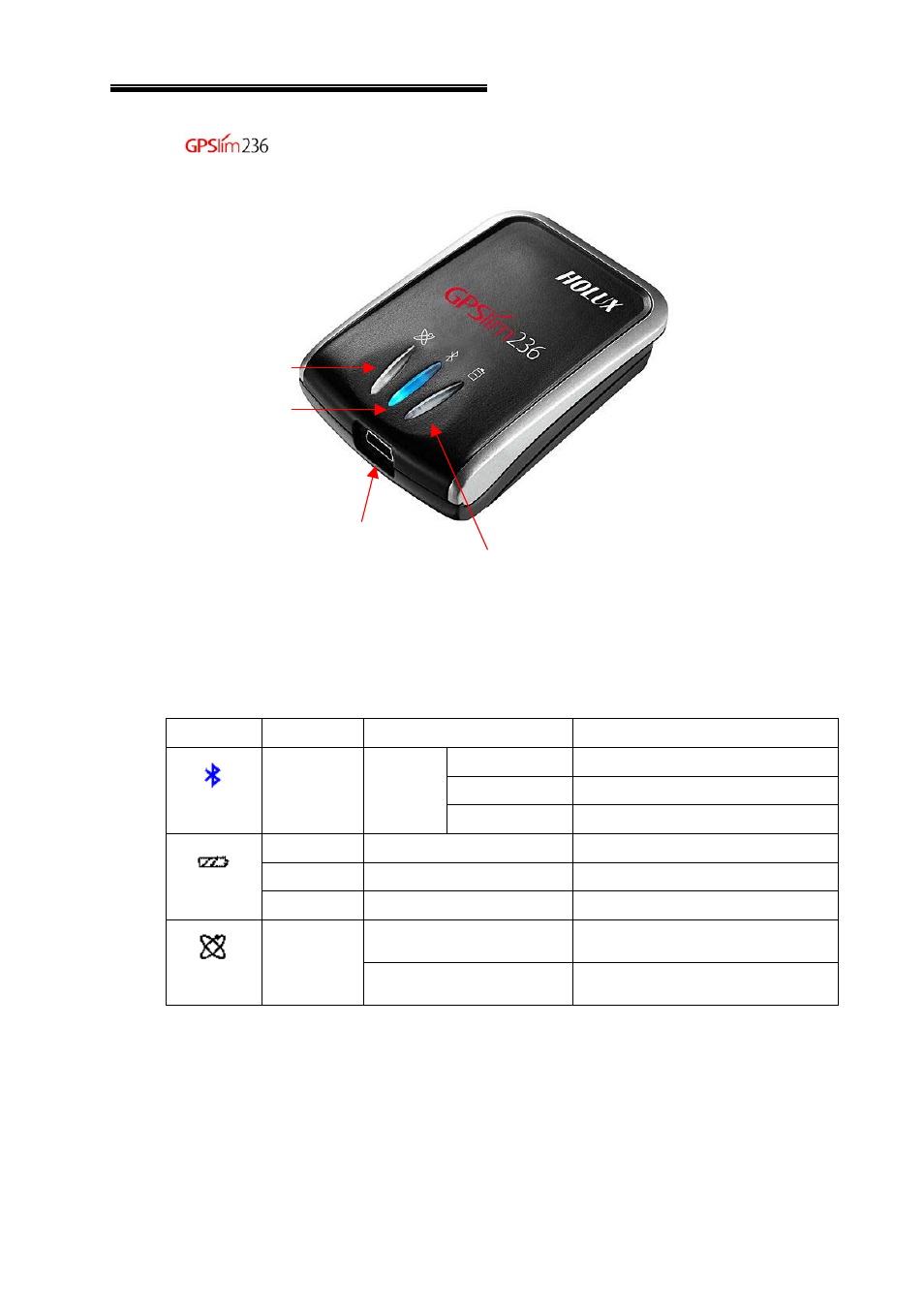

Body description see Fig. 2:
(Fig.2)
2). LED status :
3). Power Switch :
Slide Switch.
SYMBOL COLOR
STATUS
DESCRIPTION
1 times / 1 sec Search Bluetooth Device
1 time / 1 sec Standby Mode
Bluetooth
Blue
Blinking
1 time / 3 sec Transferring Data
Red
Light on
Power too low
Green
Light on
In charging
Battery
N/A
Light off
Battery full or Not in charging
Light on
Acquiring Satellites
GPS
Orange
Blinking Position
Fixed
LED of Battery(
Red
/
Green
)
Power Jack
Bluetooth
LED (
Blue
)
LED of GPS
(
Orange
)
