With Navigation Unit:
• Route the BUS cable from the dashboard
opening to the driver’s floor. Pull out the end of
BUS cable 30 mm from the end of the vehicle
20-pin connector, and secure the BUS cable to
the vehicle harness with wire ties.
• Cut the EPT seal in half. Attach 1/2 of the EPT
seal on the edge of vehicle body to protect the
BUS cable. Before attaching the tape, wipe the
surface with isopropyl alcohol.
• Secure the BUS cable on the vehicle frame
with two wire ties.

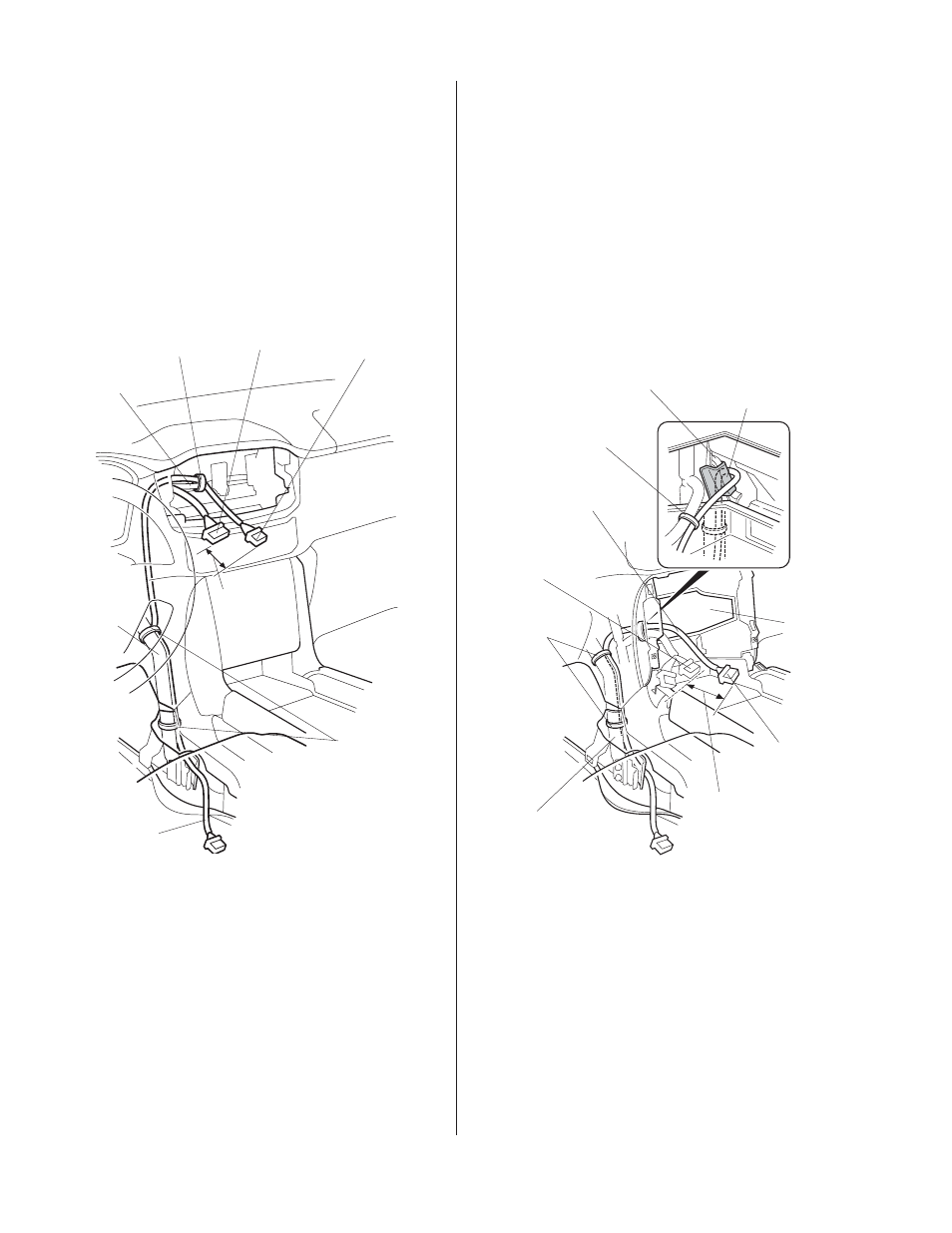

Routing the BUS cable
6. Route the BUS cable.
Without Navigation Unit:
• Route the BUS cable from the dashboard
opening to the driver’s floor. Pull out the end of
BUS cable 30 mm from the end of the vehicle
20-pin connector, and secure the BUS cable to
the vehicle harness and frame with three wire
ties.
30 mm
BUS
CABLE
EPT SEAL
Clean with isopropyl
alcohol.
FRAME
WIRE TIE
BUS CABLE
14-PIN
CONNECTOR
VEHICLE
HARNESS 20-PIN
CONNECTOR
CENTER
PANEL
OPENING
WIRE
TIE
FRAME
FRAME
BUS
CABLE
WIRE
TIE
30 mm
VEHICLE
HARNESS
WIRE TIE
VEHICLE
20-PIN
CONNECTOR
BUS CALBE
14-PIN
CONNECTOR
