25 U32-2 FPI Direct Vent Gas Insert
PARTS LIST
402-919 Complete Faceplate (Set) Contour with Black
Trim-Oversize
51) * Faceplate Side Right - Oversize
59) * Faceplate Top - Oversize
60) * Faceplate Side Left Assy-Oversize
402-534 Trims Pkg. Black - Oversize, Zero Clearance
65) * Faceplate Trim Right - Oversize
68) * Faceplate Trim Top - Oversize
70) * Faceplate Trim Left Assy - Oversize
97) 910-246 2-way Gold Contact Switch
98) 910-330 Fan Speed Control (120 V)
99) 904-569 Fan Speed Control Knob (120 V)
400-917 Complete Custom Faceplate (Set)
71) * Faceplate Side Right - Custom
72) * Faceplate Top - Custom
73) * Faceplate Side Left - Custom
74) 904-586 Speed Control Knob
c/w Spring Clip
400-939 Valve Access Faceplate
(with gas shutoff cover
plate)
89) * Valve Access Faceplate
Left Assembly
90) * Cover Plate - Valve Access

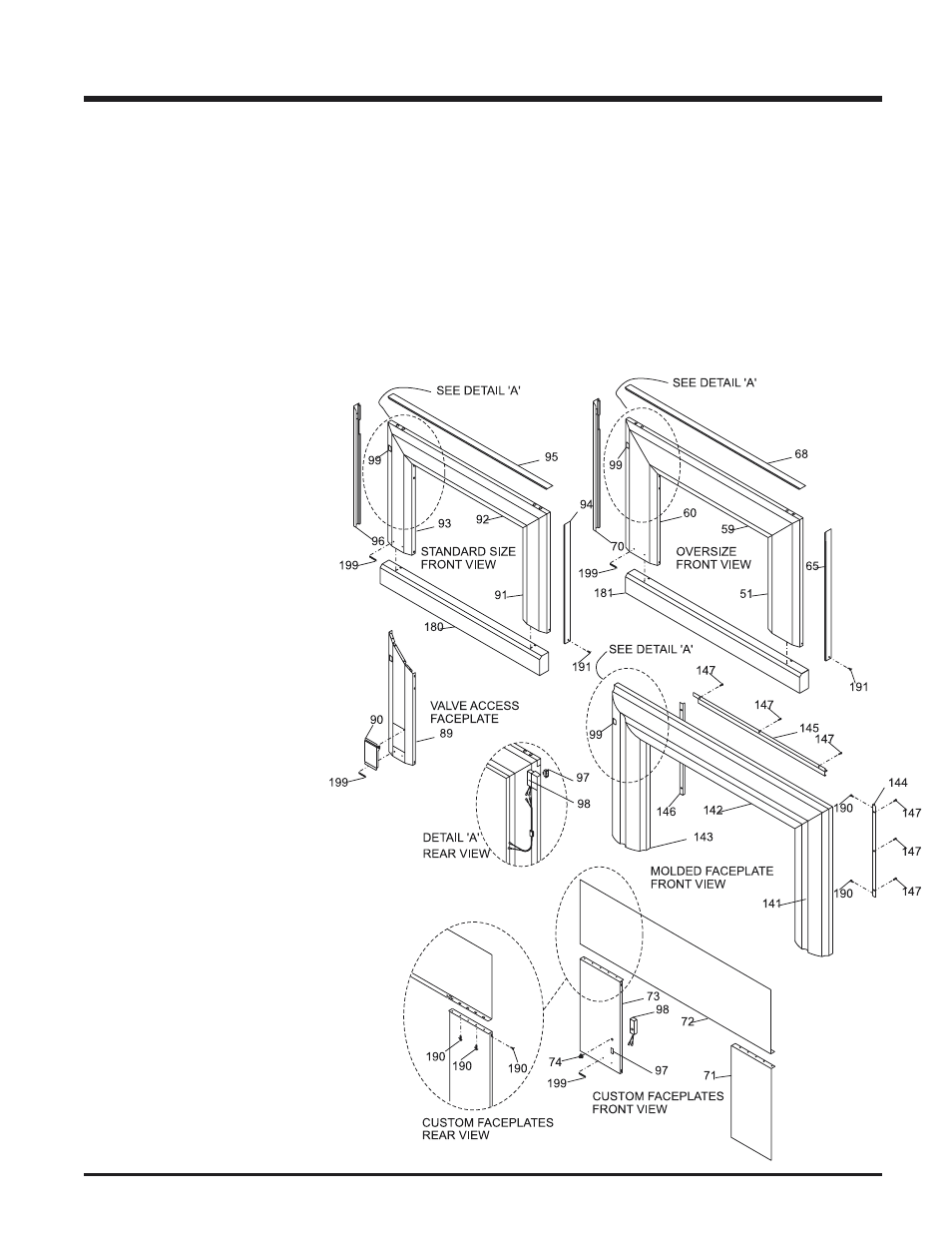

FACEPLATE ASSEMBLY
Part # Description Part # Description
402-918 Complete Faceplate (Set)
Standard Contour with Black Trim
91) * Faceplate Side Right - Standard
92) * Faceplate Top - Standard
93) * Faceplate Side Left Assy - Standard
402-532 Trims Pkg. - Standard Black
402-950 Trim Set Pkg. - Standard Contour Brass
94) * Faceplate Trim Right - Standard
95) * Faceplate Trim Top - Standard
96) * Faceplate Trim Left Assy -
Standard
97) 910-246 2-way Gold Contact Switch
98) 910-330 Fan Speed Control (120 V)
99) 904-569 Fan Speed Control Knob (120 V)
402-933 Complete Faceplate (Set) Molded
141) * Faceplate Side Right - Molded
142) * Faceplate Top - Molded
143) * Faceplate Side Left -Molded
144) * Mounting Bracket - Right
145) * Filler Bracket
146) * Mounting Bracket - Left
147) * Screw #8 x 3/4" Pan Head
400-950 Hearth Trim 1" - Regular
320-940 Hearth Trim 1" - Oversize
400-926 Hearth Trim 2" - Regular
320-942 Hearth Trim 2" - Oversize
180) 400-928 Hearth Trim 4" - Regular
181) 320-944 Hearth Trim 4" - Oversize
400-959 Hearth Trim 6" - Regular
320-946 Hearth Trim 6" - Oversize
190) * Screw #8 x 1/2" Black self-tapping
191) * Screw #8 x 1/2" Brass self-tapping
199) 948-220 Hampton Logo Plate
*Not available as a replacement part.
