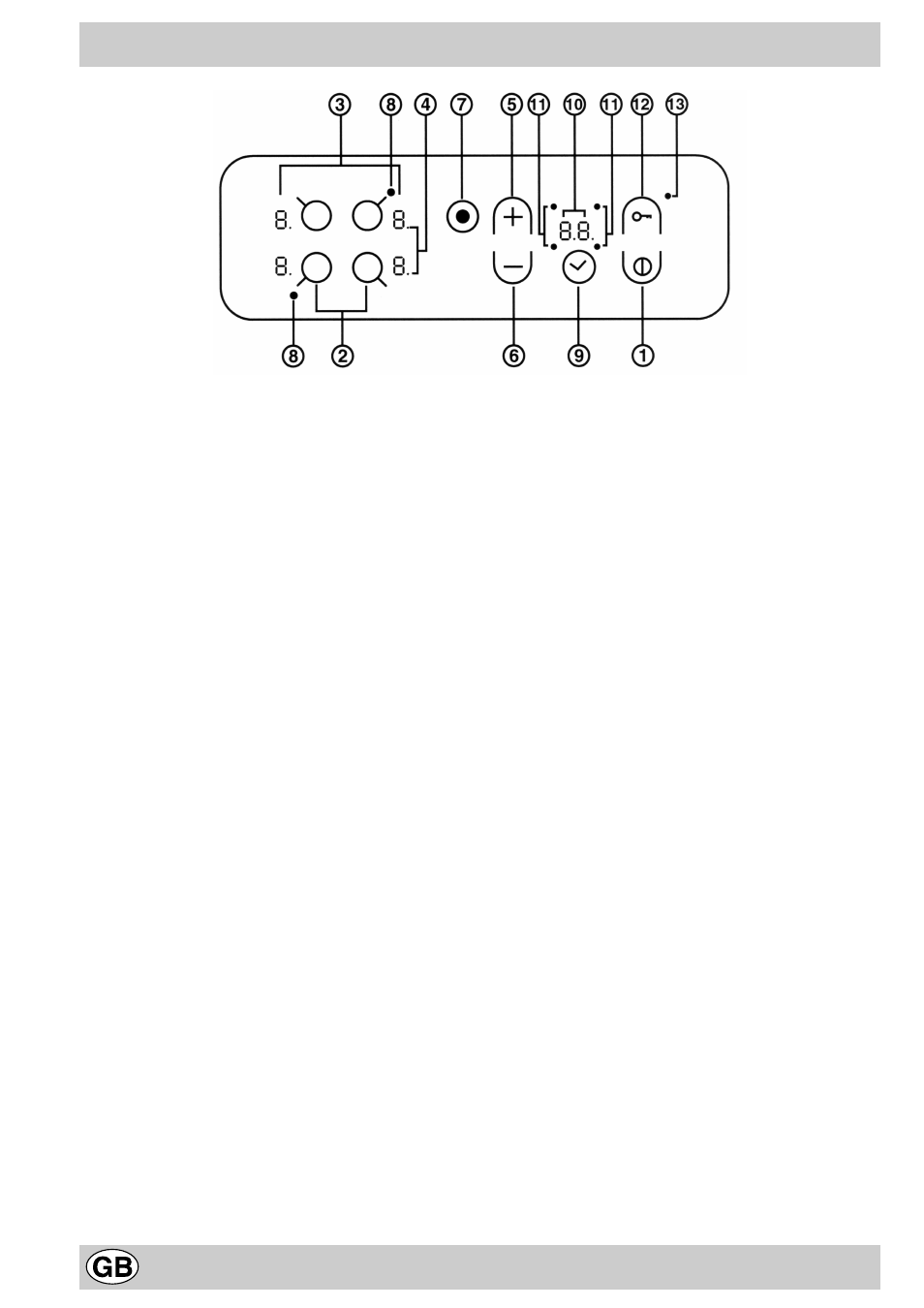

The controls
1. ON/OFF key
2. Cooking zone selector keys
3. Power (from 0 to 9) and residual heat indicators (H)
4. Zone selection indicator:
• on: the corresponding zone is selected and can be
modified,
• off: the corresponding zone is not selected, no
modification can be made.
5. Power increase key
6. Power decrease key
7. Extendable cooking zone(s) (concentric or oval)
extension key: featured by hobs fitted with 1 or 2 extendable
zones
8. The maximum zone on indicator light for the extendable
zones (concentric or oval): fitted beside each extendable
cooking zone
9. Timer control key for cooking time programming (only
on hobs fitted with a timer)
10.Programmed cooking time indicator
11.Indicator light corresponding to the programmed
cooking zone
12.Controls lock key
13.Lock indicator light
Note
• The extendable zone(s) extension key (7) and the relative indicator lights (8) are only fitted on hobs featuring
extendable cooking zones (concentric or oval).
•
The timer control key (9), the cooking time indicator (10) and zone indicator lights (11) are only fitted on hobs
featuring a timer.
