Page 18

has no function. If the customer wants the system to automatically lock the doors when the system passively

arms, connect this wire to the lock circuit in the vehicle. An optional relay may be required.

IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! This
transistorized output can only supply (-) 200 mA, and connecting directly to a solenoid, motor, or
other high-current device will cause the module to fail.

Commonly used motor wire colors:

There are three main types of keyless entry systems. Systems that unlock the driver’s door first and have inter-

nal relays, systems that unlock the driver’s door first but have external relays, and systems without driver’s

priority door unlock.

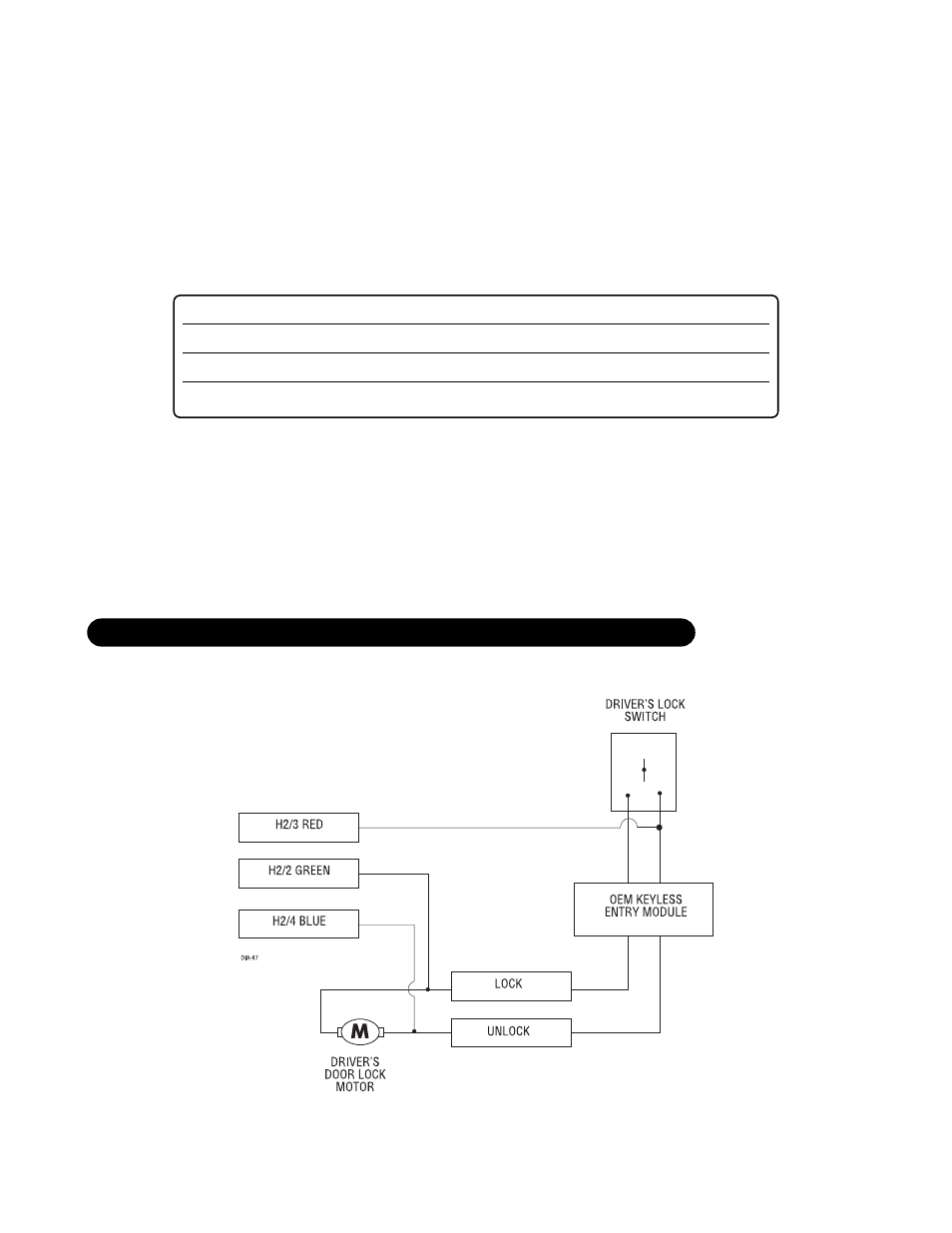

connecting door lock inputs in vehicles with driver’s door unlock from factory remote

Lock

Driver’s Unlock

Passenger Unlock

Ford

Pink/Black

Red/Orange

Pink/Orange

General Motors

Gray

Tan or Gray/Black

Tan

Chrysler

Orange/Black

Pink/Black
