TECHNICAL & CONSUMER INFORMATION

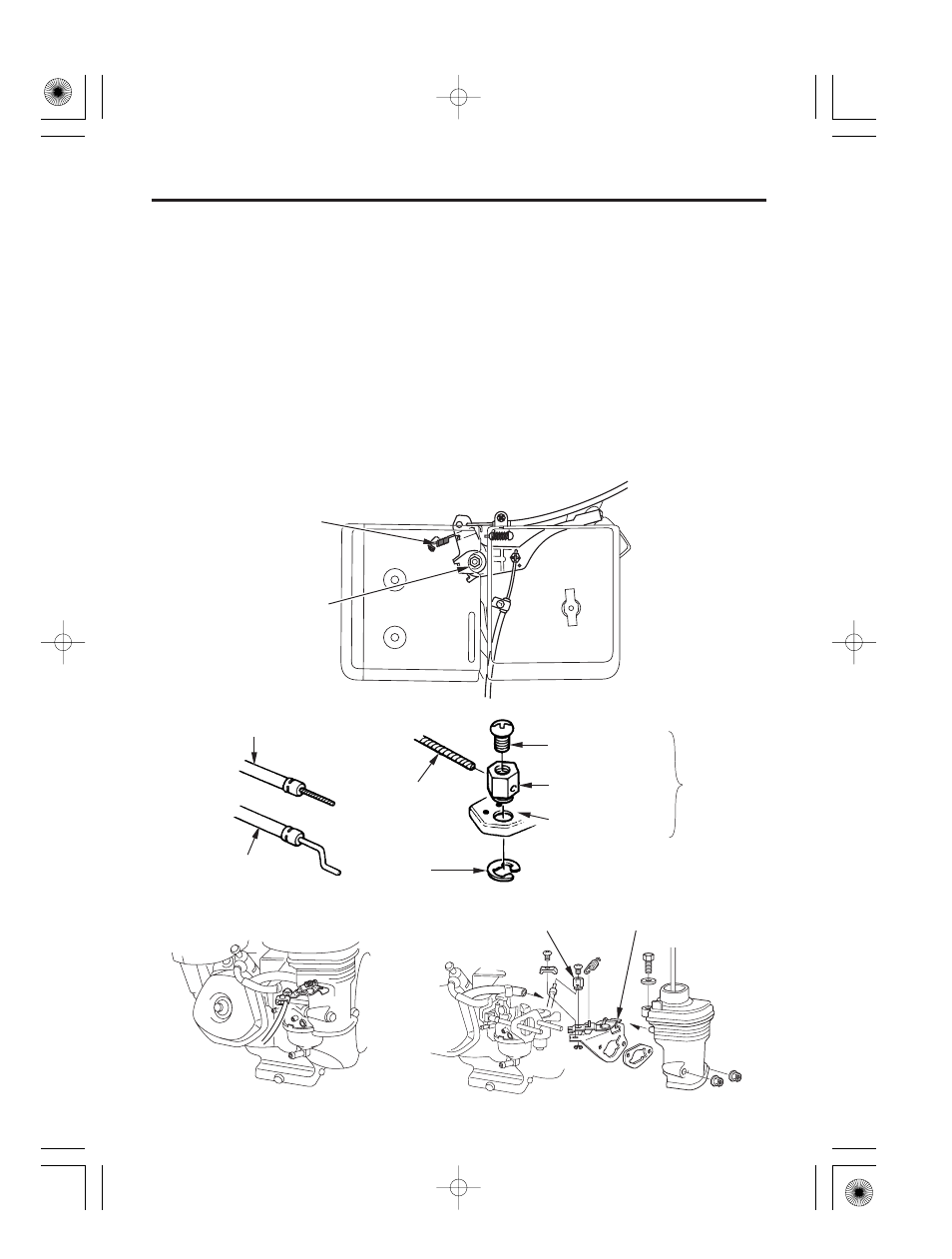

Remote Control Linkage

RETURN SPRING

Flexible wire core
mounting

Solid wire core
mounting

WIRE

5 mm
CIRCLIP

THROTTLE
LEVER

WIRE HOLDER

4 mm SCREW

OPTIONAL

WIRE HOLDER

CHOKE LEVER

REMOTE CHOKE LINKAGE

REMOTE THROTTLE LINKAGE

THROTTLE LEVER
FRICTION NUT

The throttle and choke control levers are provided with holes for
optional cable attachment. The following illustrations show
installation examples for a solid wire cable and for a flexible, braided
wire cable. If using a flexible, braided wire cable, add a return spring
as shown.

It is necessary to loosen the throttle lever friction nut when operating
the throttle with a remotely-mounted control.
