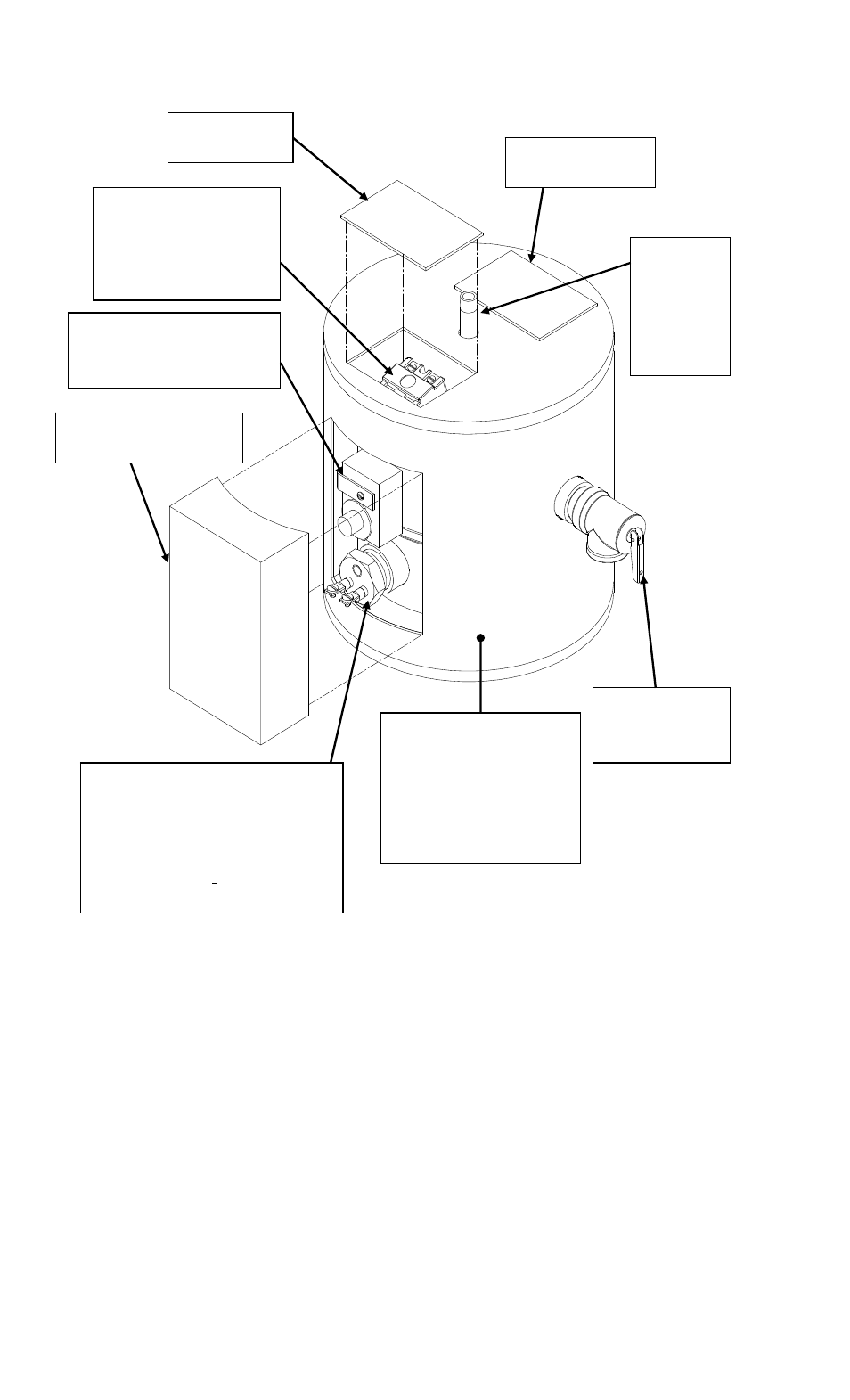

PARTS LOCATION DIAGRAM
Long-Life Heating Element -
Waste is reduced with immersed
heating element because all available
heat passes directly into the water.
Low watt density element assures
longer life - and reduces mineral
build up.
Jacket and Insulation -
Durable & easy-to-clean,
jacket is heavy -gauge
steel, finished with high
gloss enamel. Insulation
consists of high-density
fiberglass blankets.
Temperature &
Pressure Safety
Relief Valve
Hot Water
Outlet -
(Cold
water inlet
not shown
on bottom).
Electrical Junction
Box Cover
High Limit
Access Cover
High Limit Safety
Switch - Manual reset
switch designed to shut
off all electrical circuits
if water reaches 190°F
Thermostat and Heating
Element Access Cover
Thermostat
-
For constant
temperature control. Factory
set at 125°F.
