OM-928 Page 10

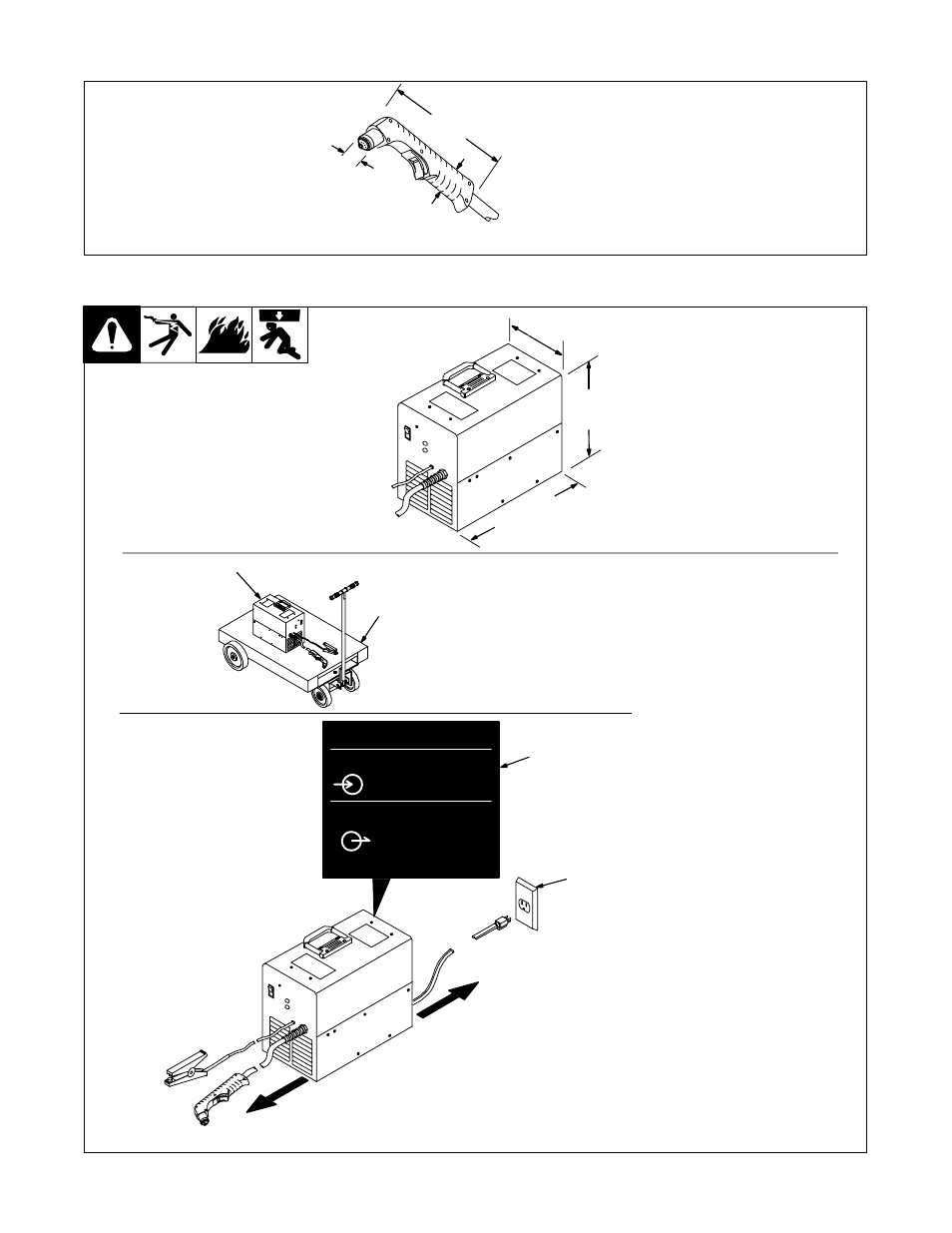

2-4. Torch Dimensions And Weight
Ref. 801 397-A
3.0 lb (1.4 kg)
1 in
(25
mm)
8-3/8 in
(213 mm)
1-3/8 in
(35 mm)
18 in
(457 mm)
2-5. Selecting A Location
loc_2 3/96 - Ref. 802 588-A / 802 589-A
1 Lifting Handle
Use handle to lift unit.
2 Hand Cart
Use cart or similar device to move
unit.
3 Plate Label
Use label to determine input power
needs.
4 120 VAC Receptacle
Locate unit near correct input
power supply.
Y Special installation may be
required where gasoline or
volatile liquids are present –
see NEC Article 511 or CEC
Section 20.
6-3/4 in
(171 mm)
17 in
(432 mm)
Movement 1
2
Location And Airflow
3
Dimensions And Weight
42 lb (19.1 kg)
10 in
(254 mm)
10 in
(254 mm)
4
INPUT
VOLTS
AMPERES
PHASE
HERTZ
SERIAL NO.
STOCK NO.
EVIDENCE OF LABEL TAMPERING VOIDS WARRANTY
DUTY CYCLE %
MAX OCV
OUTPUT
VOLTS
AMPERES
