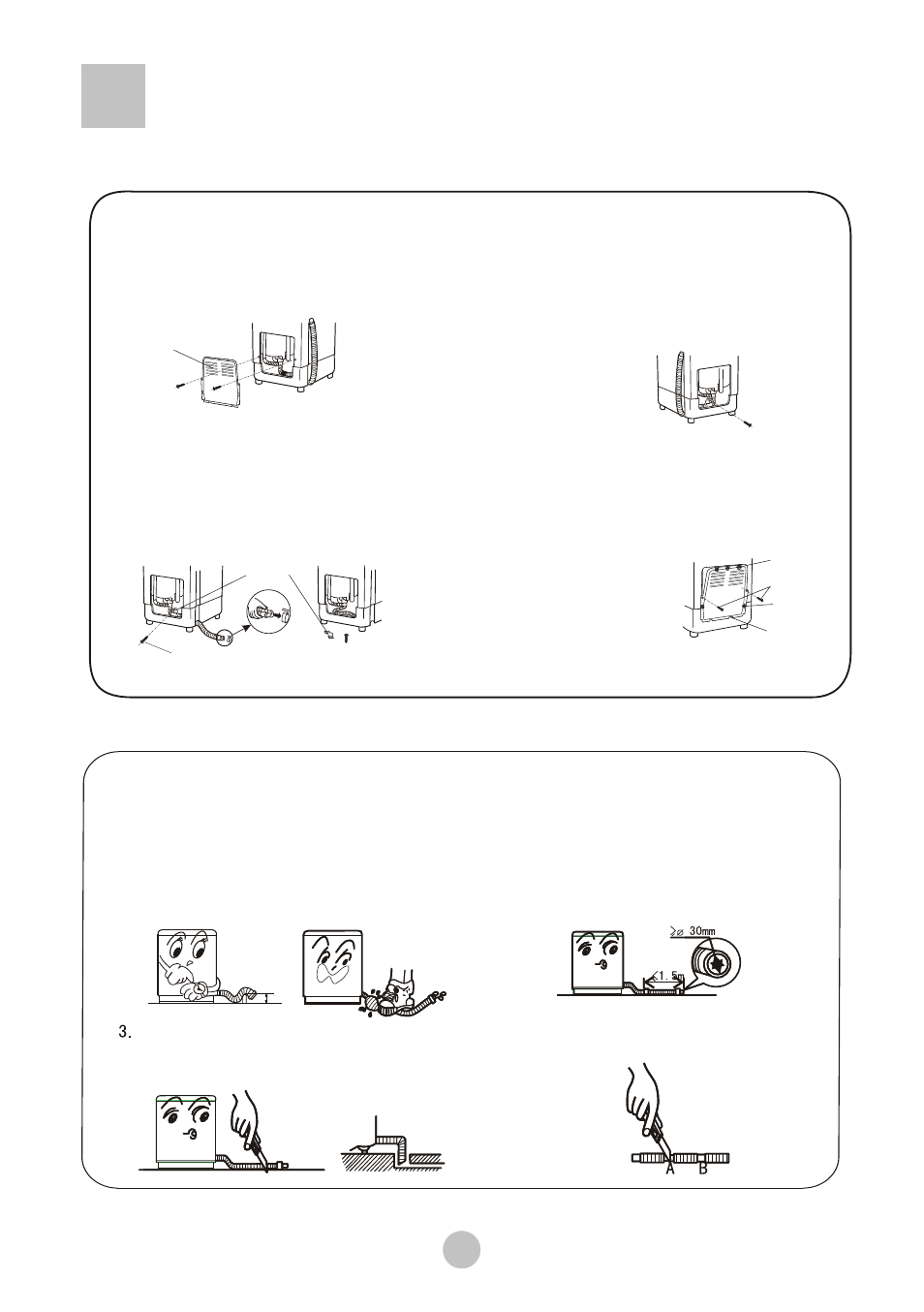

How to change the direction of the drain hose
1. The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2. Do not trample or press the drain hose.
If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4. If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
5.If the extra hose is too long, cut it
either at A or at B point.
<10cm
Usage of the drain hose
The drain hose shall drain smoothly
5
1. Loosen the fastening screw of the
back cover to take off the back cover.
Be careful not to do it by force to
prevent breaking the claw of the back
cover.(as indicated in Figure 1)
3. Extend the drain hose from the installation
hole at the right side of the base frame. Fix
the drain hose onto the base frame with the
drain hose frame and fasten the screw. Then
set the drain hose hook on the drain hose and
hang the drain hose on the hanging hole of
the cabinet. (As
indicated in Figure 3)
4. To install the back cover, first hang the lower
beard of the back cover on the cabinet, then
push the claws at the two side and the upper
end from bottom to top to resume the original
setting. Be careful not to do
it by force. Then fasten
the screw (two points)
(as indicated in Figure 4).
2. Take off the drain hose from the cabinet.
Nip the drain hose outlet slightly.
Dismantle the drain hose hook. Loosen
the fixing screw of the drain hose frame
to dismantle the drain hose frame. Pull
the drain hose into the cabinet from the
left side of the base frame.
Drain hose frame
Nip the drain hose outlet
and take off the drain hose hook Screw
Figure 3
Back cover
Figure 1
Screw
Top claw
Claws at the
two sides
Lower bread
Figure 4
Figure 2
