308350 21
Parts
Part No. 237634 Pump, Series A
41:1 Ratio, with Bulldog Air Motor
Ref.
No.
Part No. Description Qty.
101 208356 AIR MOTOR, Bulldog
See 307049 for parts
1
102
Y 176529
LABEL, warning 1
105 { 190000 ROD, tie; 224 mm (8.82”)
shoulder to shoulder
3
106 { 186925 NUT, coupling 1
107
{
184129 COLLAR, coupling 2
108
{
106166 NUT, hex; M16 x 2.0 3
109 236458 PUMP, displacement
See page 23 for parts
1
110
{
112887 WRENCH, spanner 1
Y Replacement Danger and Warning labels, tags and cards
are available at no cost.
Part No. 236464 Pump, Series A
41:1 Ratio, with Reduced Icing
Quiet Bulldog Air Motor
Ref.
No.
Part No. Description Qty.
101 237001 AIR MOTOR, Bulldog
See 307304 for parts
1
102
Y 176529
LABEL, warning 1
105
{
190000 ROD, tie; 224 mm (8.82”)
shoulder to shoulder
3
106 { 186925 NUT, coupling 1
107 { 184129 COLLAR, coupling 2
108 { 106166 NUT, hex; M16 x 2.0 3
109 236458 PUMP, displacement
See page 23 for parts
1
110 { 112887 WRENCH, spanner 1
Y Replacement Danger and Warning labels, tags and cards
are available at no cost.

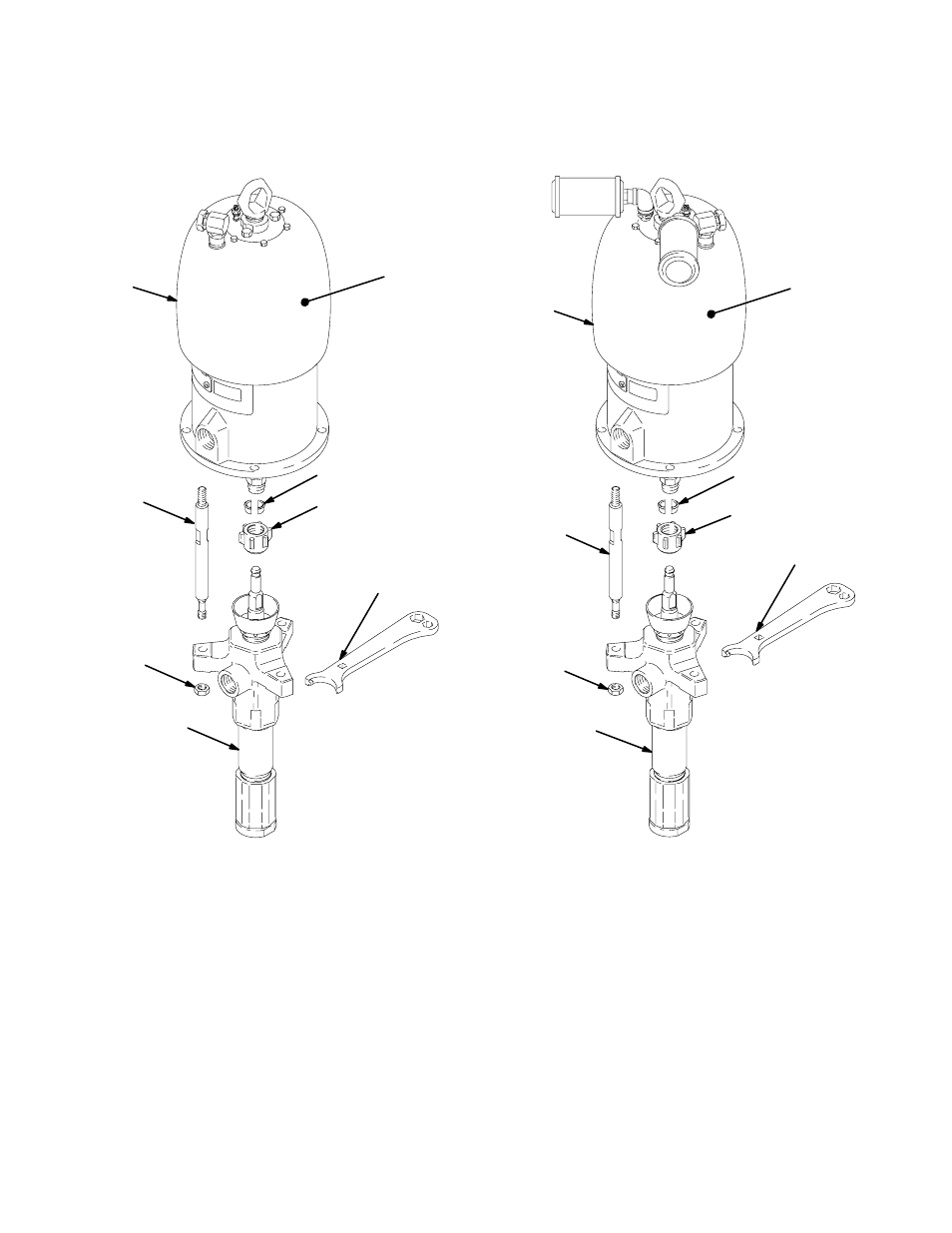

04377
101
109
{108
107
{
{105
106 {
110 {
102
Y
These parts are included in
Connection Kit 235417.
For applications requiring
stainless steel tie rods, order
Connection Kit 235418.
{
04497
101
109
{108
107
{
{105
106 {
110
{
102 Y
These parts are included in
Connection Kit 235417.
For applications requiring
stainless steel tie rods, order
Connection Kit 235418.
{
