Healthrider HRTL34306.1 - Manual (Page 7)

7

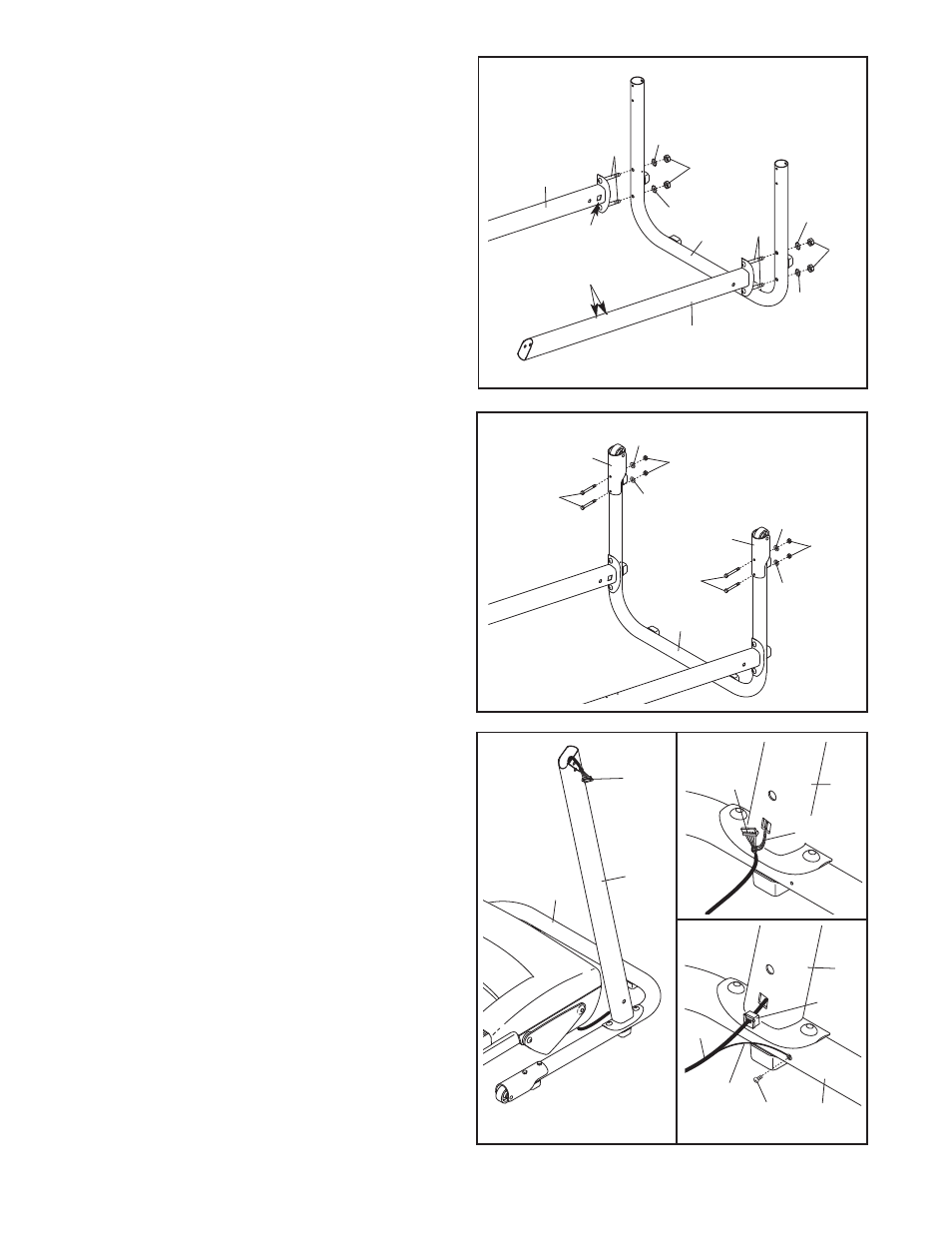

2. Have a second person hold the Base (52) in the
position shown.
Identify the Left Upright (53) (the Right Upright [54]
has a large hole near the lower end).
Hold the Left Upright (53) so the two small
holes are on top as shown. Insert two Upright
Bolts (2) into the bracket on the Left Upright.
Attach the Left Upright to the Base (52) with the
Upright Bolts, two Upright Star Washers (9) and
two Upright Nuts (75).
Do not tighten the
Upright Nuts yet.
Attach the Right Upright (54) to the Base (52) in
the same way.
2
52
53
75
2
2
75
9
9 9
9
54
Large
Hole
Small Holes
3. Slide the two Wheel Housings (45) onto the Base
(52). Attach each Wheel Housing with two Wheel
Housing Bolts (13), two Wheel Housing Washers
(32), and two Wheel Housing Nuts (43).
3
52
13
32
32
45
43
13
32
32
45
43
4. Position the Base (52) as close to the front of the
treadmill as possible, as shown.
See drawing 4a. Insert the wire tie and the con-
nector on the end of the Wire Harness (39) into
the square hole in the Right Upright (54). Then,
insert the Wire Harness until the wire tie is ex-
tending from the upper end of the Right Upright.
Secure the Wire Harness to the top of the Right
Upright so that it will not fall inside.
See drawing 4b. Attach the ground wire on the
Wire Harness (39) to the indicated hole in the
Base (52) with a Silver Ground Screw (84).
Then, press the indicated Grommet (49) into the
Right Upright (54).
52
4
39
54
54
54
49
39
84
Ground
Wire
52
Wire Tie
4b
4a
39
