5

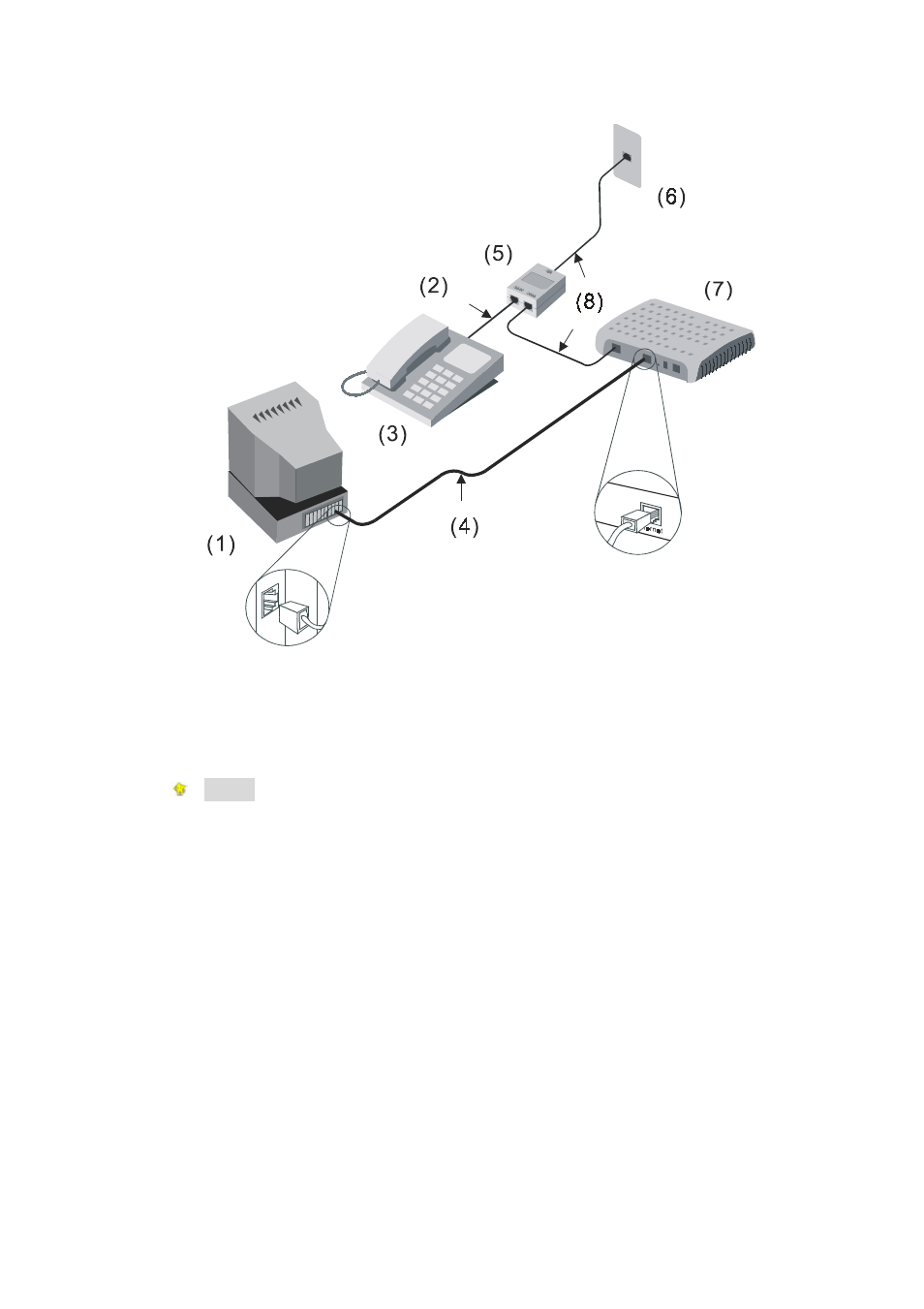

(1) Computer
(2) RJ-11 Tel Cable
(3) Phone
(4) Ethernet Cable
(5) Splitter
(6) Phone Jack
(7) MT880
(8) RJ-11 Tel Cable
Figure 4 Computer to MT880 Connection
Note: Use cross-over cable to connect MT880 and the uplink port of a
switch or hub. Note: The attached Ethernet cable in the packing box is a
straight-through cable. Be sure that the cable connecting the LAN to MT880
cannot exceed 100 meters.
