Hitachi L32C205 User Manual
Page 20

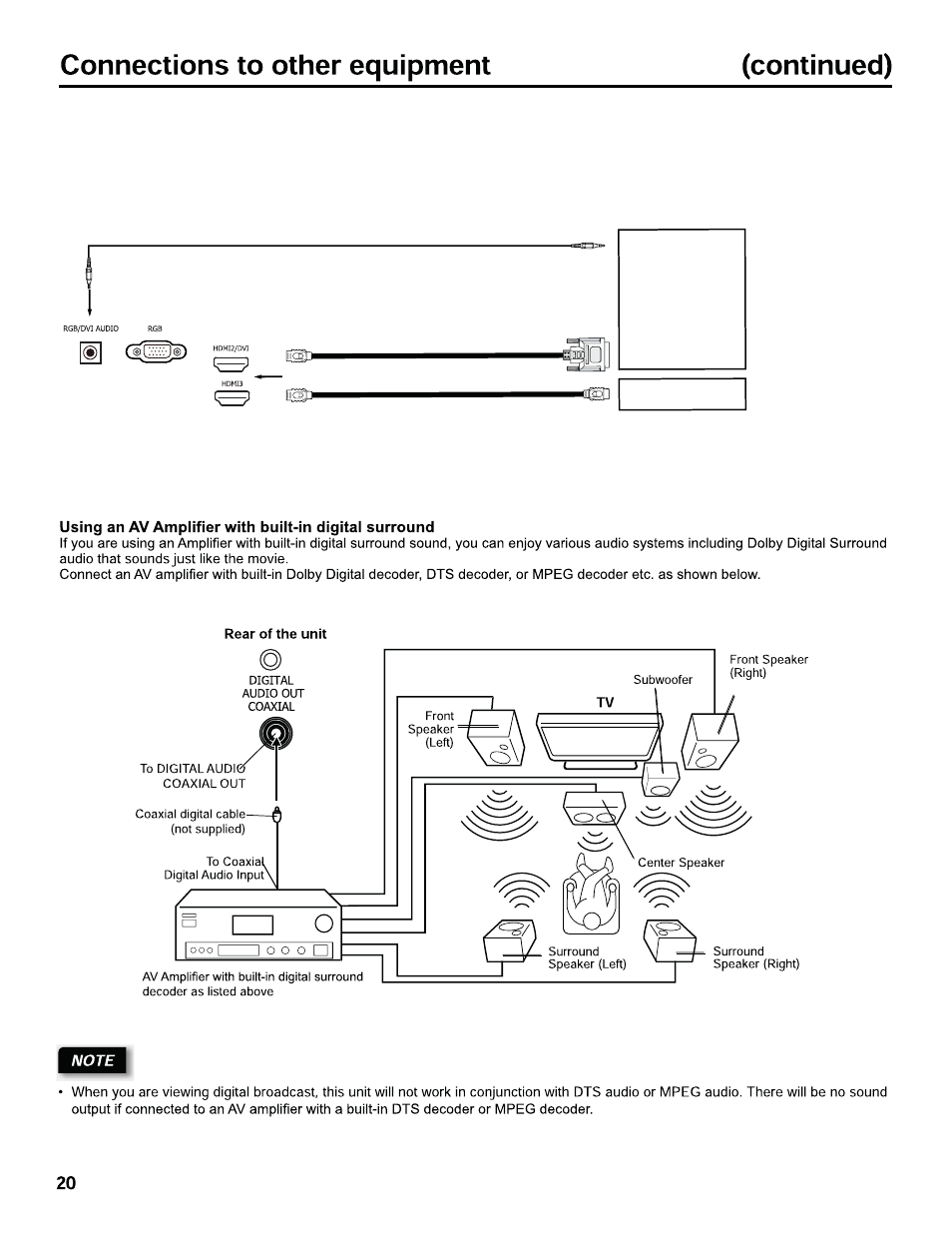

To connect a HDMI or a DVI device to the unit
The HDMI/DVI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI
device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cables are
required.
HDMI - to - DVI adapter cable
(HDMI type A connector) (not supplied)
Audio cord (not supplied)
HDMI cable (type A connector) (not supplied)
To DVI output
To HDMI out
HDMI device
DVI device
To HDMI/DVI IN
or
Back of the unit
When using a HDMI input from a Set-Top-Box, it is recommended to use a 1080p, 1080i or 720p input signal.
When the HDMI input is a 1080p signal, it is recommended that the length of the cable should be less than 5 meters.
RGB/DVI AUDIO Input
