C-AS-INST-11-06

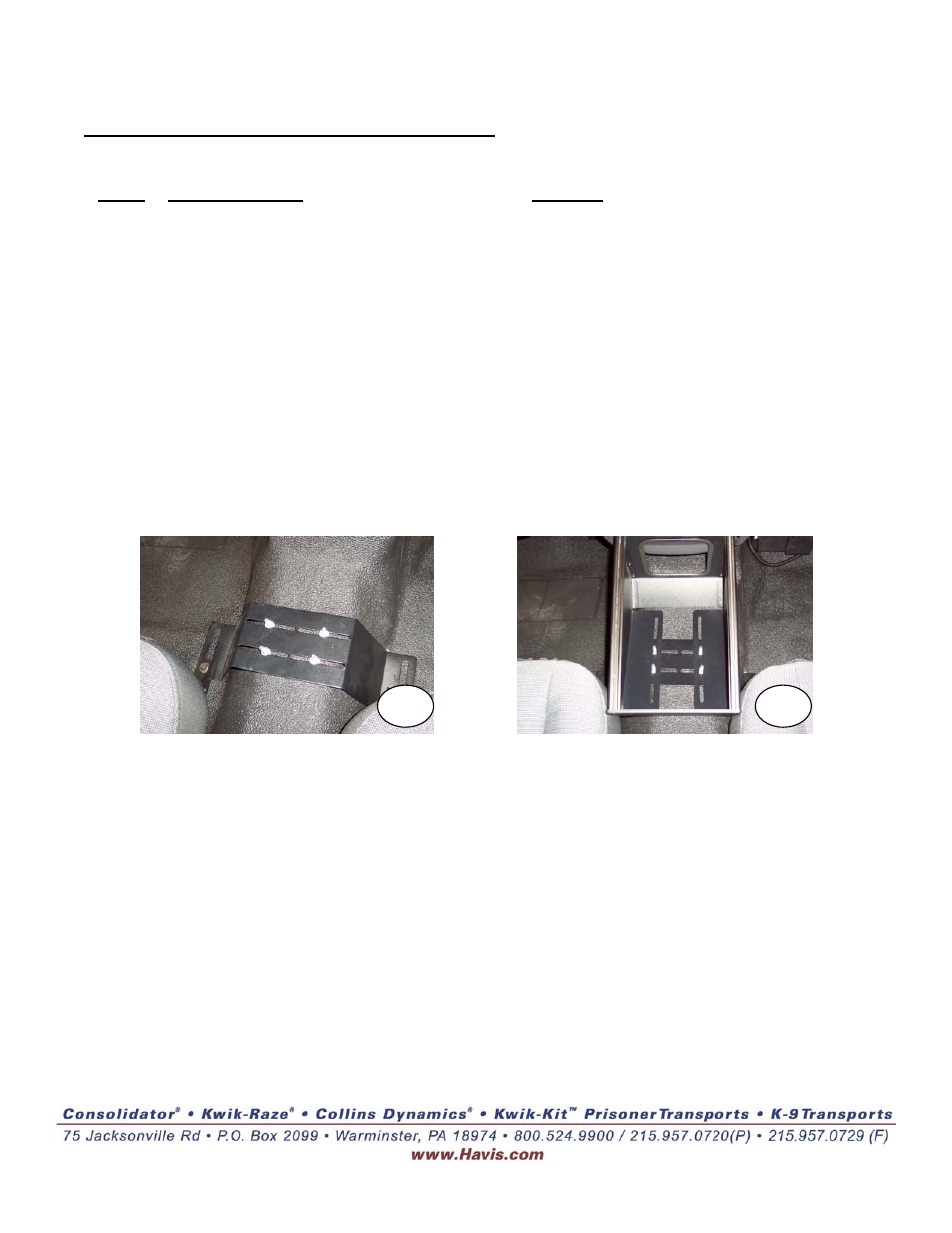

HUMP BRACKET MOUNTED CONSOLE
HARDWARE:
QTY: DESCRIPTION: PART
#:
4 ¼-20 x ¾” Carriage bolt GSM32000
4 1/4” Flat Nylon Retaining Washer GSM31322
4 ¼-20 Hex Flange Serrated Nut GSM30023
INSTALLATION:
1. Remove front seat mounting bolts near transmission hump
2. Place Carriage bolts into slots from underneath to top of hump mount bracket and place nylon
retaining washer on bolt on top side to hold in place.
3. Place hump mount bracket over transmission hump and onto seat mount studs, place seat bracket
on top of hump mount bracket and replace seat mount bolts.
4. Place console on hump bracket and secure with ¼” serrated nut.
5. Unit is ready to accept Equipment control heads.
