11. Before you use the AEROFLYER, firmly retighten all of the parts used in assembly. If all parts are not
properly tightened, a squeaking noise may occur during use.
9. Attach the Right Leg Cover (31) to the Right Leg
(4) with a Tree Fastener (32).
Attach the Left Leg Cover (30) to the Left Leg (3)
in the same manner.
Slide a 3/8Ó Lock Washer (58) onto a Lock Knob
(25). Insert the Lock Knob into the hole near the
top of the Right Leg (4). Tighten the Lock Knob
into the Right Pivot Bracket (8).
Attach the other Lock Knob (25) to the Left Leg
(3) in the same manner.
10. Dampen the left frame stop and the inside of a
Rubber Sleeve (61). Pivot the Left Frame Section
(5) toward the Left Upright (1) until there is at
least one inch of clearance between the frame
stop and the Left Frame Section. Slide the
Rubber Sleeve onto the frame stop.
Put the other Rubber Sleeve (61) onto the other
frame stop in the same manner.
31
30
61
4
8
3
32
25
58

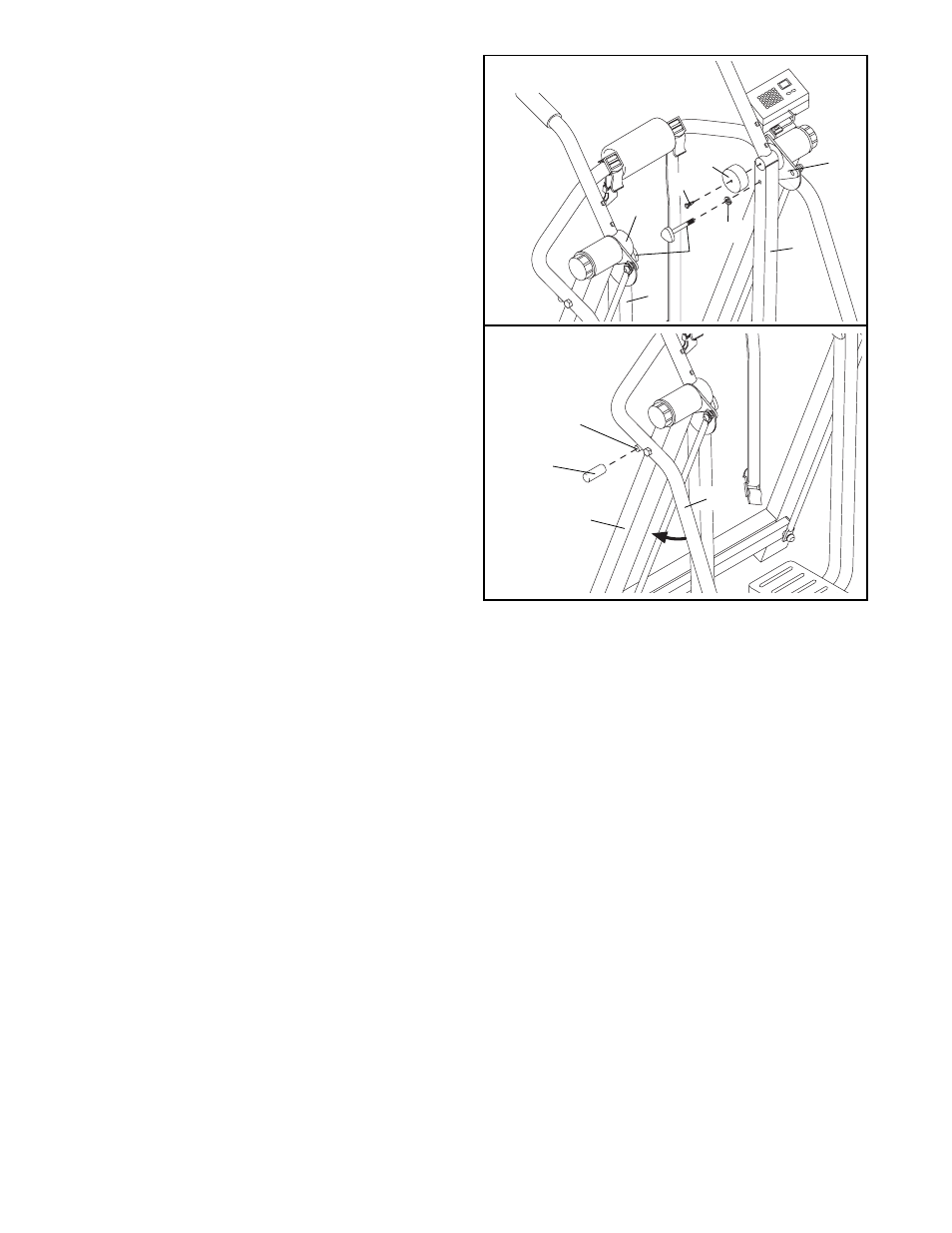

Fig. 9
Fig. 10
Frame
Stop
5
1
