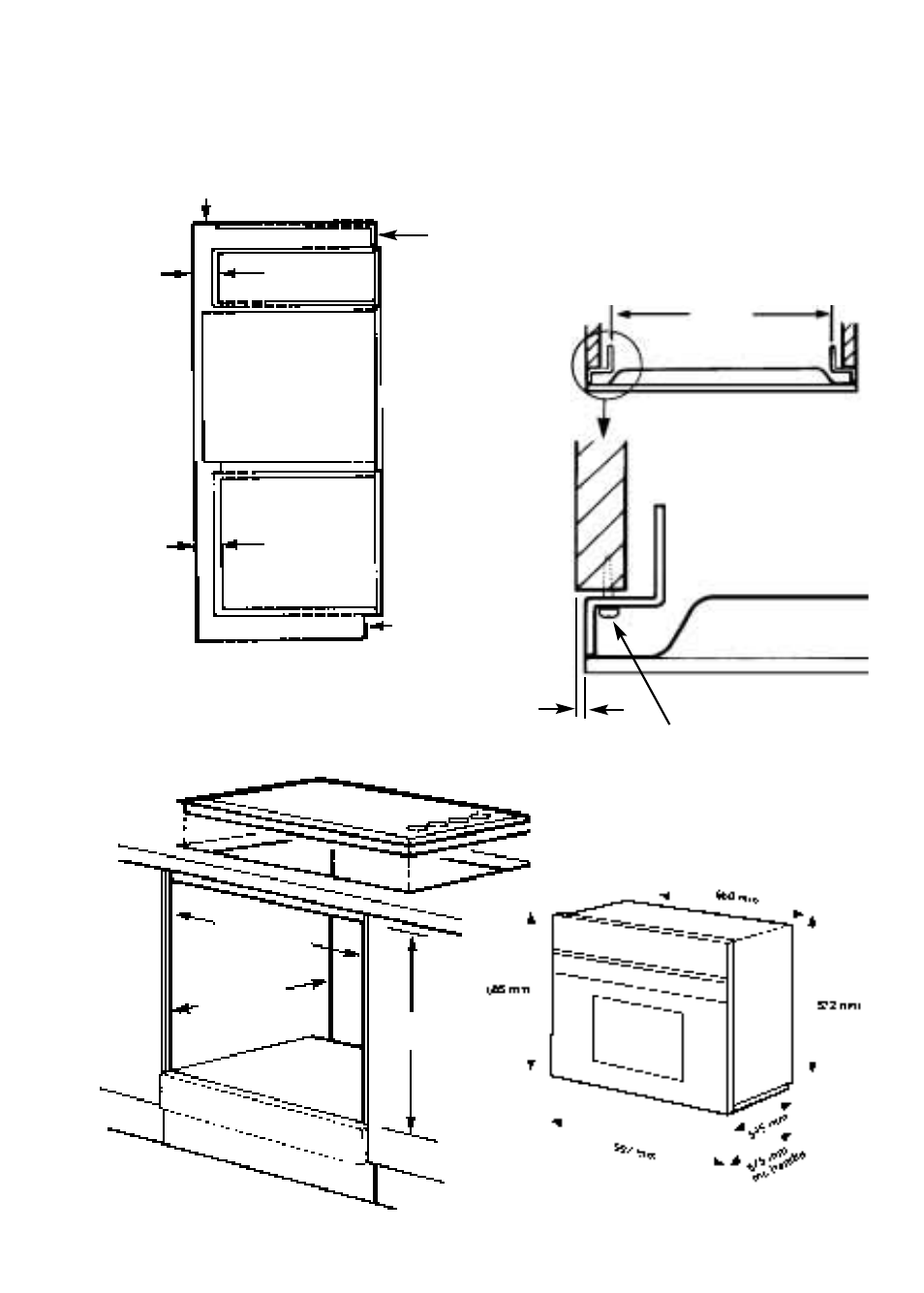

Ventilation Slot
51 x 457mm minimum area
if cabinet doesn't fit to ceiling
Ventilation Slot
51 x 457mm minimum area
if cabinet fits
to ceiling
50mm
air
gap
50mm
air
gap
Tall Cabinet
Built
Under
560mm min
574mm max
550mm min
excluding pipes
and other pr
ojections 578mm min
585mm max
When fitting a hob above an oven always
use these installation instructions
in conjunction with the hob instructions.
Use 2.5mm
2 High Temp Cable. Refer to
Electrical Installation.
Oven
Fig. 1
Fig. 3
INSTALLATION INSTRUCTIONS
Ventilation Slot
(see above)
Cabinet
Side
Trim
Oven Door
Viewed down through
cabinet
560mm
Fig. 2
No. 6 x 15mm
(4 Supplied)
1.5mm
