REAR-PANEL CONNECTIONS 9

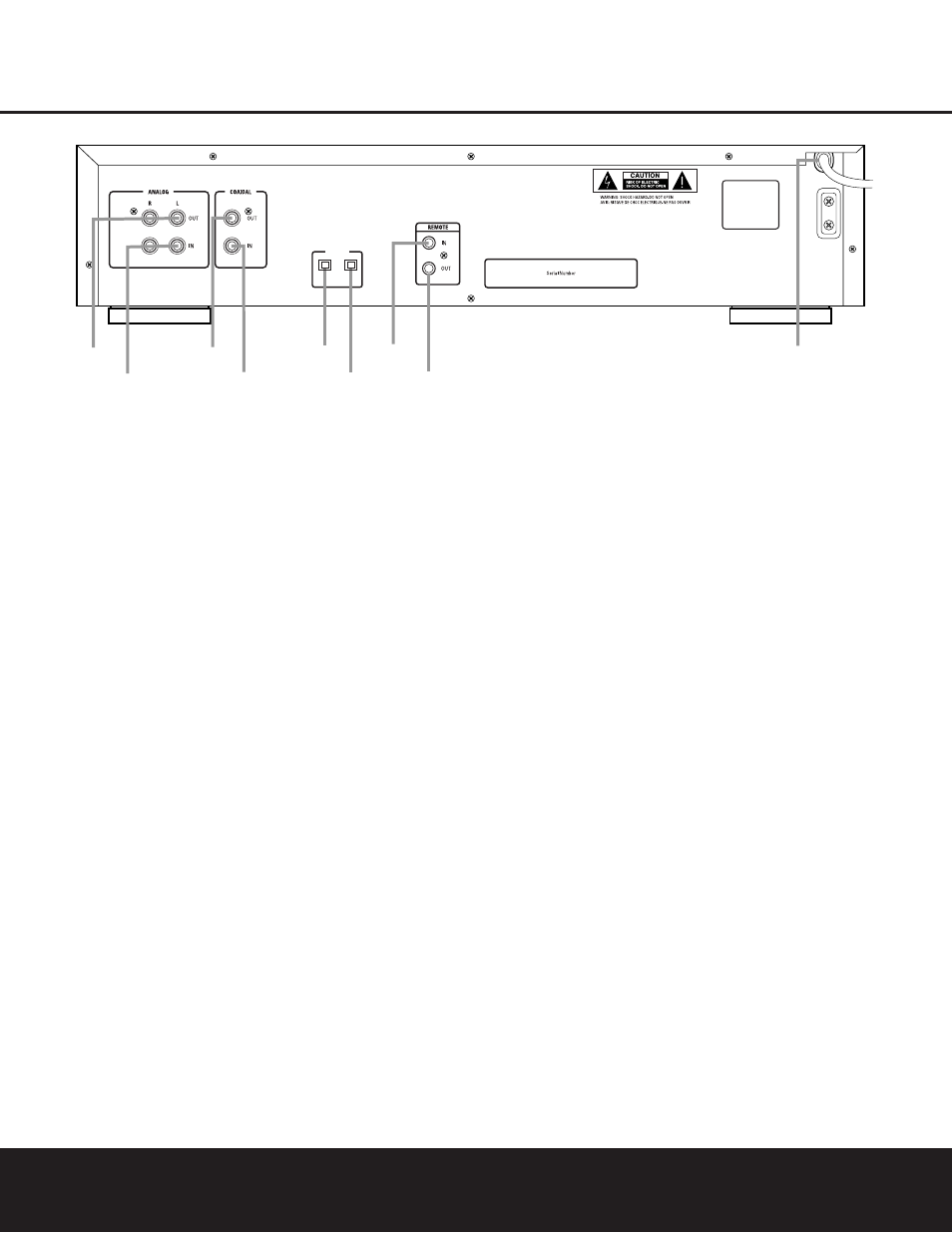

REAR-PANEL CONNECTIONS
¡
™
£
¢
ª
AC 110~240V, 50~60Hz 20W
MODEL NO. CDR 26
HARMAN KARDON
NORTHRIDGE
CALIFORNIA. USA
IN
¶
•
OPTICAL
OUT
∞
§
¡ Analog Output
™ Analog Input
£ Coaxial-Digital Output ¢ Coaxial-Digital Input
∞ Optical-Digital Input
§ Optical-Digital Output ¶ Remote IR Input
• Remote IR Output
ª AC Power Cord
¡ Analog Output: These jacks carry the analog
audio output signal from the deck currently playing.
Connect them to the Tape Play/In input jacks on a
receiver, preamp or processor.
™ Analog Input: These jacks accept the analog sig-
nals that are used for CD recordings. Connect them to
the Tape Rec/Play outputs on a receiver, preamp or
processor.
£ Coaxial-Digital Output: This jack carries the
digital-audio output signal from the deck currently
playing. Connect it to a coaxial-digital input on a
receiver, processor or digital decoder.
¢ Coaxial-Digital Input: This jack accepts the digi-
tal-audio input signal from a compatible digital audio
product and should be connected directly to a digital
player or to a coaxial-digital output on a CD or DVD
player or an A/V receiver or processor.
IMPORTANT NOTE: The coaxial digital input should
only be connected to digital input or output jacks.
Even though it uses the same RCA-type connector as
standard analog audio connections, DO NOT connect
it to conventional analog input or output jacks.
∞ Optical-Digital Input: This jack accepts the digi-
tal-audio input signal from a compatible digital audio
product, and should be connected to the optical-digital
output on a CD or DVD player or an A/V receiver or
processor.
§ Optical-Digital Output: This jack carries the opti-
cal digital output signal from the deck currently play-
ing. Connect it to an optical digital input on a receiver,
processor or digital recorder.
¶ Remote IR Input: Connect the output of a
remote infrared sensor or the remote control output of
another compatible Harman Kardon product to this
jack. This will enable the remote control to operate
even when the front-panel Remote Sensor
ˆ is
blocked. This jack may also be used with compatible
IR remote control-based automation systems.
• Remote IR Output: Connect this jack to the IR
input jack of another compatible Harman Kardon
remote-controlled product to have the built-in Remote
Sensor
ˆ on the CDR 26 provide IR signals to
other compatible products.
ª AC Power Cord: Connect this plug to an AC out-
let. If the outlet is switch-controlled, make certain that
it is in the ON position.
