Features

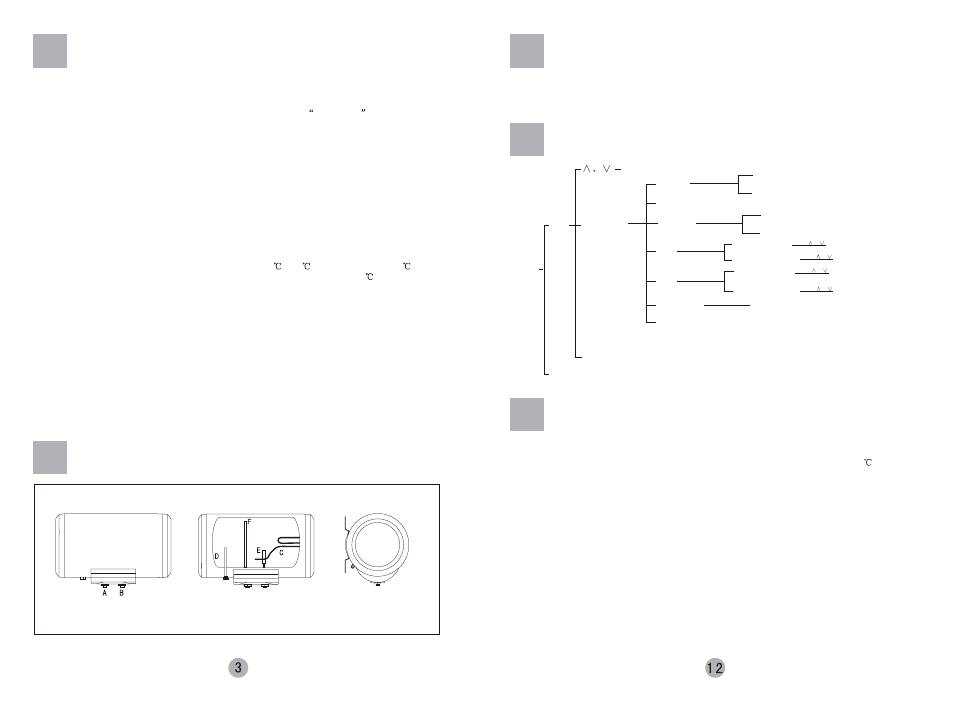

Views and parts
Front View Cutaway View Side View
A Hot water outlet B Cold water inlet C Heating element D Enamel tank
E Water inlet tube F Water outlet tube G
H Wall-mounting bracket
Magnesium anode rod
G
H
3. Durable:
Specially treated shell. Elegant and durable.
Tank liner produced with 3-layer liner enameling technology. More reliable quality.
4. Energy Saving:
One-piece PU foaming technology, thermal insulative and power saving. Two delayed
water use times manually set, easy and energy saving.
Three power levels. Upper and lower heating elements. Save energy in both winter and
summer.
Night power feature and Medium temperature warming feature, free selection as you
desire.
5. Easy to use:
Water heating temperature adjustable between 35 - 75 in an increment of 1 .
Outlet water temperature adjustable between inlet temperature and 75 .
6. Power Failure Memory:
Patented PC board design. Machine automatically memorizes setting information
before power failure, and directly goes to previous working status upon power
resumption.
7. Multi-purpose:
Closed structure suitable to connect several outlets for water use in locations like
washroom and kitchen. (outlet water is not suitable to drink)
8. Horizontal installation,space saving.
Options of local control or remote control.
Your water heater is an improved product of this series. Please use it as instructed in
this manual.
2. Safe:
High-quality imported heat-resistant stainless steel heating element, corrosion
resistant and more reliable. Fuzzy control with over-temperature protection, tank liner
over-pressure protection and current leakage protection. Safe Care
patented design
together with the function of monitoring and displaying of live ground wire has become
a real safeguard for family safety.
Operation Instructions
In non-heating intelligent mode, machine stays in standby status. You can activate
interface by pressing any button on the control panel (buttons on remote controller are
inactive). D.
Attentions in Operation
To avoid causing machine troubles, do not connect power before tank is full of water.
Adjust a suitable temperature before use, for water temperature above 50
may burn
your skin.
This product is closed water heater, which can supply hot water through pipe connection
to several points like bathroom (bathtub, washbasin, showerhead) and kitchen.
Heating adjustment can be made flexibly all year round adapting to climate changes. In
long-term out-of-use or maintenance, you can close city water pipe valve, open mixing
valve, and move up safety valve handle to drain the tank. To avoid injury, before next use,
it is suggested to first open hot water valve before switching on the water heater,
exhausting gas possibly retained in the pipeline. In this case, no smoke or fire is
permitted near the open valve. carefully check and confirm all parts are in good condition.
1.
2.
3.
On/Off
button
Power
on
Power off
Mode
(Function)
button
Power button-Select heating power (850W / 1300W / 2150W)
Real-time
Heat / Warm
Press Set button
Press Set button
Press Set button
Press Set button
Press Set button
Clock hour setting
Clock hour setting
Clock minute setting
Clock minute setting
Medium Warm
Night Power
Time 1
Time 2
Time 1 hour setting
Time 2 hour setting
Time 1 minute setting
Time 2 minute setting
Press or
Press or
Press or
Press or
Calibrate Time 1 hour digits
Calibrate Time 2 hour digits
Calibrate Time 1 minute digits
Calibrate Time 2 minute digits
Time 1+Time 2 Repeat steps for Time 1 and Time 2
Intelligent
Operation Diagram
4.
5. Provided hot water quantity can meet use demand, temperature setting shall be possibly
low. It can minimize heat dissipation, high-temperature corrosion and sedimentation,
ensuring a longer service life.
Regularly ask servicemen to make safety inspection, remove sediment on heating
elements, and check consumption of anode bar. Too much consumed anode bar shall be
replaced.
6.
Set highest heat temperature
