GB
12 F–000786J
CONTENTS
LIMITED WARRANTY 11
INTERNATIONAL PICTORIALS 12
OWNER’S INFORMATION 13
SAFE OPERATION PRACTICES 13
ASSEMBLY 14
OPERATION 15
MAINTENANCE 16
TROUBLE SHOOTING CHART 19
INTERNATIONAL PICTORIALS
IMPORTANT: The following pictorials are lo-
cated on your unit or on literature supplied
with the product. Before you operate the
unit, learn and understand the purpose for
each pictorial.
NOTE: Illustrations and pictorials begin
on page 2.
Safety Warning Pictorials (Figure 37)
1 WARNING
2 Shield Eyes. Explosive Gases Can Cause
Blindness Or Injury.
3 No Sparks, Flames or Smoking.
4 Sulphuric Acid Can Cause Blindness Or
Severe Burns
5 Flush Eyes Immediately With Water. Get
Medical Help Fast.
6 IMPORTANT: Read Owner’s Manual
Before Operating This Machine.
7 WARNING: Thrown Objects. Keep
Bystanders Away. Read User Instructions
Before Operating This Machine.
8 WARNING: Do Not Use This Machine On
Slopes Greater Than 10 Degrees.
9 DANGER: Keep People, Especially
Children, Away From Unit.
10 DANGER: No Step.
11 DANGER: Keep Feet And Hands Away
From Rotating Blade.
12 DANGER: Keep Hands Away From
Rotating Blade.
13 DANGER: Disconnect Spark Plug Wire
Before Servicing Unit.
14 WARNING: Hot Surface.
15 WARNING: Use Caution When Connecting
Or Disconnecting Accessories.
16 WARNING: Crushed Fingers.
17 IMPORTANT: Follow Instructions In
Owner’s Manual To Level The Deck.
18 WARNING: When you hear the audible
alarm it is time to empty the grass bagger.
Control And Operating Pictorials
(Figure 38)
1 Engine Start
2 Lights
3 Engine Run
4 Engine Stop
5 Engine Run
6 Brake
7 Parking Brake
8 Clutch
9 Slow
10 Fast
11 Choke
12 Oil
13 Blade Rotation Control
14 Raise
15 Fuel
Declared vibration emission values in accordance with Directive 89/392/EEC.
Vibration Emission according to BS EN 1032: Seat < 0,50 m/s 2 ,
Right Running Board 1,01 m/s 2 , Left Running Board 0,76 m/s 2
Vibration Emission according to BS EN 1033: Steering Wheel 4,96 m/s 2
Values determined with operator in operating position when the machine was
operated stationary on a grass covered surface at 2400 min–1.
Declared airborne noise emissions in accordance with Directive 84/538/EEC.
Sound Power Level 100 dB(A)
Sound Pressure Levels
at operator ears 86,1 dB(A) left; 85,5 dB(A) right.
Values determined at ear according to the specifications of 81/1051/EEC.

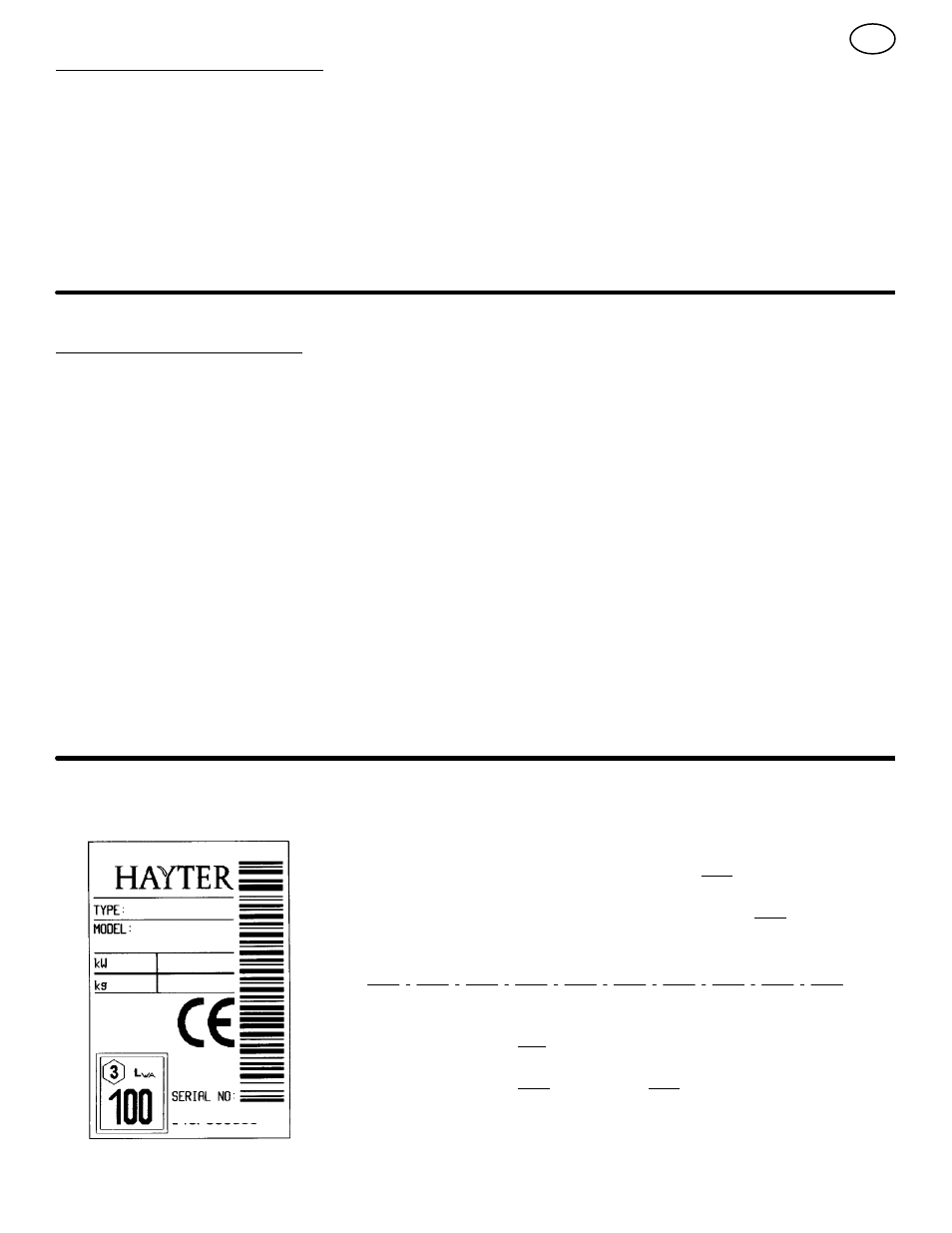

CODE144S
13/40 TRACTOR
REAR COLLECT
RPM 2400
2000
144S001002
236
MADE IN USA BY MURRAY INC.
JACKSON, TENNESSEE
