Description of Air Filtration System

How the

HEPAtech

Air Purifier System Works

As the air is pulled into the purifier, the activated carbon pre-filter absorbs odors and catches
large particles. Then, the air travels through the HEPAtech

filter where the smaller particles

are collected. Then, the ionizer releases negative ions into the air that attract positively
charged dust, smoke, and pollen particles. Finally, the clean purified air is released back into
the room.

Air Purifier Components

Fig. 2 - Air Purifier Components

Fig. 3 - Inside Surface

of Front Grill

HOOK
TAPE

GRILL
VENTS

HOOK
TAPE

HEPAtech

FILTER

PRE-FILTER

CONTROL AREA

FRONT
GRILL

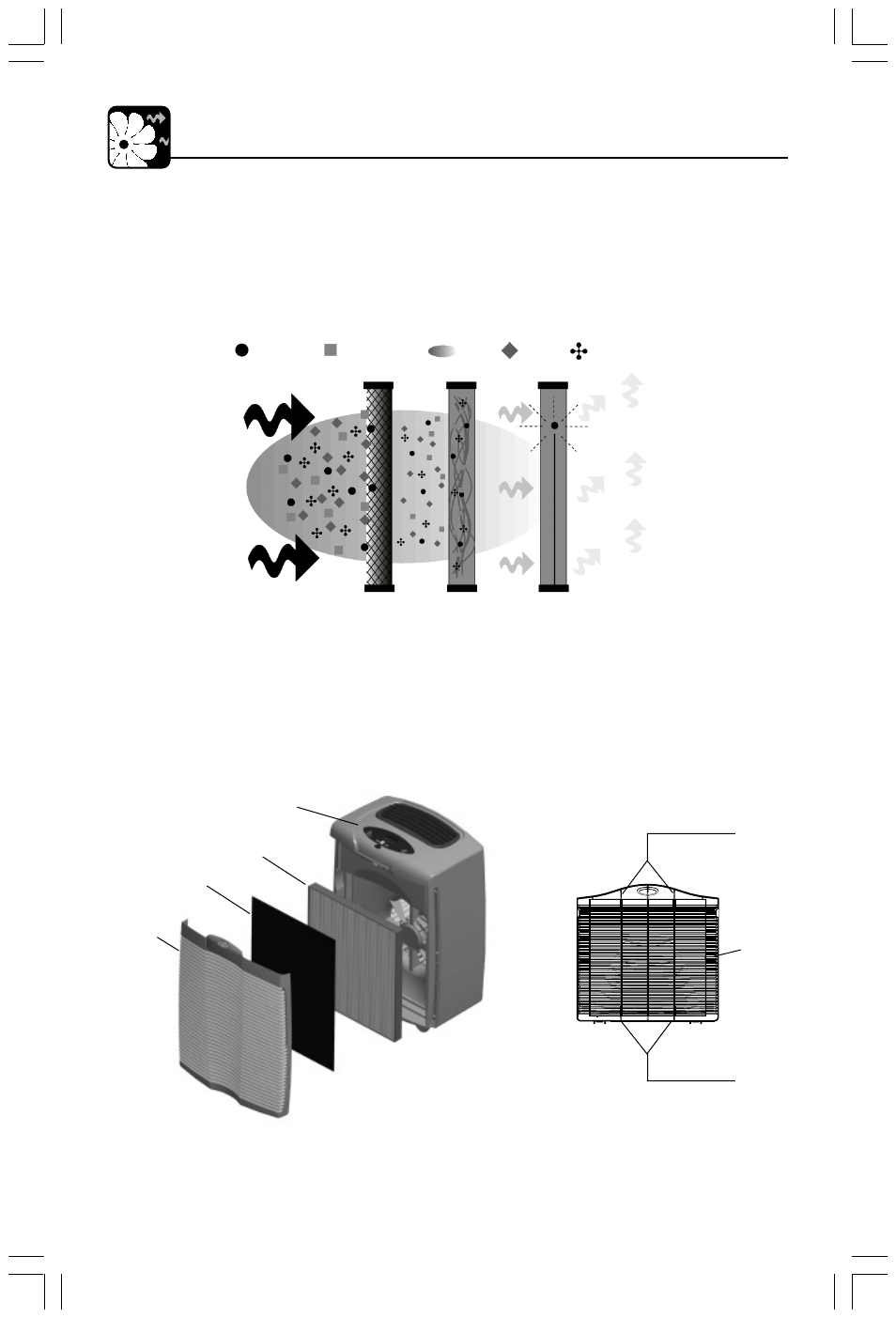

Fig. 1 - Illustration of the Air Filtration System

Dust & Irritants

Pollen & Allergens

Odors

Bacteria

Pet Hair & Dander

Carbon

Pre-filter

HEPAtech

Filter

99.97% – .1 Microns

Ionizer
